Generating Sets 6500 XL C5 Kohler SDMO

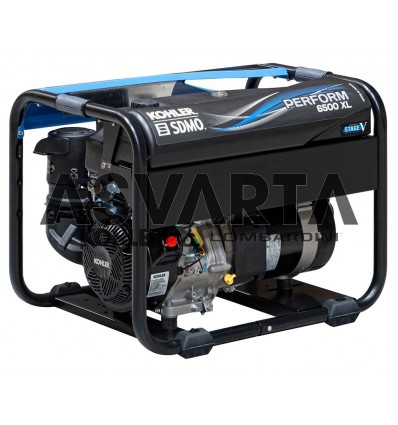

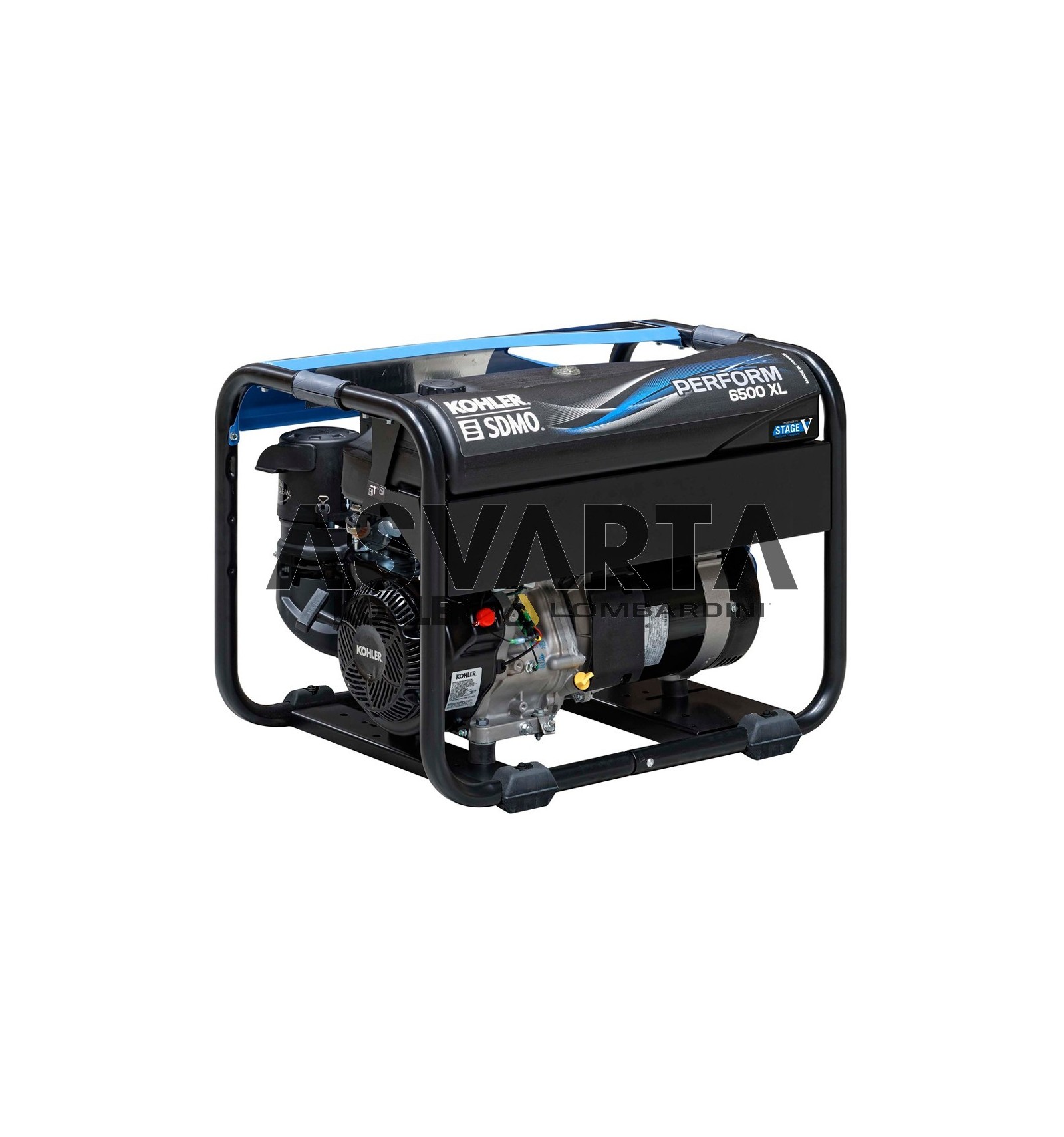

Kohler SDMO PERFORM 6500 XL C5

The Generating Sets Perform Kohler SDMO 6500 XL C5 has a Cyclonic Quad Clean air filters provide 4 levels of filtration which effectively filter out large particles and capture the finest particles. They ensure a continuous supply of clean air to the engine, fuel economies, increase the engine performance and extend its lifetime.

This product is compliant with regulation for implementing requirements relating to gaseous and pollutant emission limits in Europe STAGE V (2016/1628 EU)

Advantages of the PERFORM 6500 XL C5 Kohler SDMO

This product is delivered with the following accessories:

• KOHLER air-cooled industrial engine
• Large autonomy
• Good value for money
• Starting up facilitated thanks to the summer/winter positions

Accessories of the Kohler SDMO Perform 6500 XL C5

This product is delivered with the following accessories:

• Funnel
• User and maintenance manual
• Elements for better stability in all types of floors
• Ergonomic non-slip grips

SDMO generators have endless possibilities to meet the needs of the consumer. The Perform range is intended for the application of its groups for small industrial activities, with regular use.
The Kohler SDMO Spain catalogue provides a range of possibilities and solutions for all customer needs and alternatives. Consult our entire catalogue with an endless number of alternatives to suit your work needs.

ENGINE SPECIFICATIONS:

• Engine brand: KOHLER
• Engine ref.: CH440_C5
• Distribution: O.H.V
• Start: Starter
• Oil Shutdown: Oui
• Displacement(cm3): 429
• Oil System capacity including filters(L): 1,30

ALTERNATOR SPECIFICATIONS:

• Tecnology: Brushless
• AVR Regulation: No
• Indication of protection: IP 23
• Insultation class: H

PACKAGING:

• Packaging Type: Box
• Lenght(cm): 82
• Width(cm): 56,50
• Height(cm): 60
• Weight(kg): 87,50
• Pallet Type: 120/80
• Number of box by pallet: 6
• Pallet height (cm): 193
• Weight of the packaged Pallet (kg): 535

SHIPPING IN SPAIN AND PORTUGAL

IBERIAN PENINSULA (SPAIN AND PORTUGAL)

Shipping cost: 4,50 €

FREE shipping on purchases over: 35 €

Ceuta and Melilla

Shipping cost: 7,50 €

FREE shipping on purchases over: 50 €

Canary Islands

Shipping rates to the Canary Islands depend on the weight of the package:

Shipping to European Union

*Zone 1: Germany, Belgium, Denmark, Slovakia, France, Ireland, Italy, Luxembourg, Netherlands, Poland, Sweden

**Zone 2: Austria, Croatia, Estonia, Finland, Latvia, Lithuania, Czech Republic

**Zone 3: Bulgaria, Cyprus, Slovenia, Hungary, Malta, Romania

Shipments to Europe to non-European Union Countries (*1)

Shipping to África (*2)

Shipping to Asia y Oceanía (*3)

Shipping to North América (*4)

Shipping to Central, South America and Islands (*5)

Shipping to Nordic Islands (*6)

(*1) No EU: Norway, United Kingdom, Switzerland, Albania, Belarus, Bosnia and Herzegovina, Macedonia, Moldova, Montenegro, Serbia, Ukraine, Turkey, Gibraltar, Vatican City, Liechtenstein, Monaco, San Marino, Guernsey, Jersey,

(*2) Africa: Morocco, Equatorial Guinea, Algeria, Egypt, South Africa, Chad, Gambia, Central African Republic, Tunisia, Yemen, Sudan, Angola, Benin, Botswana, British Indian Ocean Territory, Burkina Faso, Burundi, Cape Verde, Cameroon, Democratic Republic of Congo, Republic of Congo, Ivory Coast, Djibouti, Eritrea, Ethiopia, Gabon, Ghana, Guinea-Bissau, Kenya, Lesotho, Liberia, Madagascar, Malawi, Mali, Mauritius, Mauritania, Mozambique, Namibia, Niger, Nigeria, Reunion Island, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Swaziland, Tanzania, Togo, Uganda, Zambia, Zimbabwe, Comoros, Mayotte, Somalia, Libya

(*3) Asia + Oceanía: Israel, Bangladesh, Bhutan, Burma, Brunei, Nepal, Sri Lanka, Armenia, Azerbaijan, Georgia, Kazakhstan, Kyrgyzstan, Turkmenistan, Uzbekistan, Singapore, Thailand, Taiwan, Mongolia, Hong Kong, Philippines, Indonesia, Malaysia, Japan, South Korea, India, Saudi Arabia, Bahrain, United Arab Emirates, Jordan, Kuwait, Lebanon, Oman, Pakistan, Qatar, China, Laos, Macau, East Timor, Vietnam, Afghanistan, North Korea, Palestinian Territories, Iraq, Tajikistan, Cambodia, Iran, Russia, Australia, Norfolk Island, New Zealand, Cook Islands, Fiji, Guam, Northern Mariana Islands, Kiribati, Marshall Islands, Micronesia, New Caledonia, Palau, Papua New Guinea, French Polynesia, Solomon Islands, Samoa, American Samoa, Tuvalu, Vanuatu, Wallis and Futuna, Maldives, Tonga, Nauru, Niue, French Southern Territories.

(*4) North America: USA, Mexico, Canada, Saint Pierre and Miquelon

(*5) Central + South America + Islands: Puerto Rico, Belize, Costa Rica, El Salvador, Guatemala, Haiti, Honduras, Nicaragua, Dominican Republic, Chile, Argentina, Brazil, Bolivia, Panama, Paraguay, Peru, Uruguay, Venezuela, Colombia, Ecuador, Anguilla, Antigua and Barbuda, Aruba, Bahamas, Barbados, Bermuda, Dominica, Grenada, Guadeloupe, Guyana, Virgin Islands, Jamaica, Martinique, Montserrat, Saint Martin, Saint Vincent and the Grenadines, Saint Lucia, Trinidad and Tobago, Netherlands Antilles, South Georgia and the South Sandwich Islands, Maldives, Saint Barthelemy, Turks and Caicos Islands, Cayman Islands, Saint Kitts and Nevis, US Virgin Islands, Cuba, French Guiana, Suriname.

(*6) Nordic Islands: Iceland, Greenland, Faroe Islands.

GENERAL SPECIFICATIONS

• Engine brand MITSUBISHI
• KOHLER alternator trademark
• Voltage (V) 400/230
• Control panel APM303
• Optional Box APM403
• Optional Box M80
• Optional box Terminal strip

• Type of cooling Radiator
• Class of performance G1

DIMENSIONS COMPACT VERSION

• Length (mm) 1405
• Width (mm) 715
• Height (mm) 1053
• Tank capacity (L) 50
• Net weight (kg) 387

DIMENSIONS SOUNDPROOFED VERSION M126

• Soundproofing type M126
• Length (mm) 1750
• Width (mm) 775
• Height (mm) 1230
• Tank capacity (L) 50
• Net weight (kg) 530
• Sound pressure level @1m in dB(A)
• 50Hz (75% PRP) 71
• Sound pressure level @7m in dB(A) 58

General

• Engine brand MITSUBISHI
• Ref. Engine S3L2-SD *
• Atmo Suction Type
• Diesel fuel
• Cylinder arrangement L
• Number of cylinders 3
• Displacement (l) 1,32
• Diameter (mm) * Stroke (mm) 78 * 92
• Compression ratio 22 : 1
• Speed (tr/mn) 1500
• Max. auxiliary power at nominal speed (kW) 11.20
• Frequency regulation (%) +/- 2.5%
• Type of injection Indirect
• Type of control Mechanical
• Air filter type, Dry models

Fuel system

• Maximum flow rate of fuel oil pump (l/h) 18
• Max. pressure in fuel circuit (m) 1.50
• Consumption with fan
• Consumption 110% load (l/h) 0
• Consumption 100% PRP load (l/h) 3.10
• Consumption 75% PRP load (l/h) 2.50
• Consumption 50% PRP load (l/h) 2.10

Lubrication system

• Oil capacity (l) 4,20
• Min. oil pressure (bar) 0.50
• Max. oil pressure (bar) 4
• Oil sump capacity (l) 3,70
• Oil consumption 100% ESP 50Hz (l/h) 0.02
• Air intake system
• Max. inlet back pressure (mm H2O) 200
• Combustion air flow rate (l/s) 13.60

Cooling system

• Engine and radiator capacity (l) 4.20
• Fan power (kW) 0.40
• Fan air flow rate (m3/s) 0.50
• Radiator back pressure (mm H2O) 10
• Type of cooling Glycol-Ethylene
• Radiated heat (kW) 1
• Heat expelled in the water HT (kW) 10
• Water temperature at outlet (°C) 93
• Engine stop water temperature (°C) 111
• Start of opening of HV thermostat (°C) 82
• Total opening of the HV thermostat (°C) 95

Alternator specifications

• KOHLER alternator trademark
• Ref. Alternator KH00350T
• Number of poles 4
• Number of bearings
• Ring and brushless technology
• IP23 protection rating
• Insulation class H
• Number of threads 12
• Ability to maintain a
• short circuit at 3 In for 10 s
• Yes
• AVR adjustment Yes
• Direct Coupling

Application data

• Excess speed (rpm) 2250
• Power factor (Cos Phi) 0.80
• Regulating the voltage to the regime
• established (+/- %) 1
• Waveform: NEMA=TIF <45
• Waveform: IEC=FHT <2
• Total harmonic distortion in
• vacuum DHT (%) 2.6
• Total harmonic distortion in
• DHT load (%) 2.3
• Response time (Delta U = 20%)
• transitional) (ms) 200
