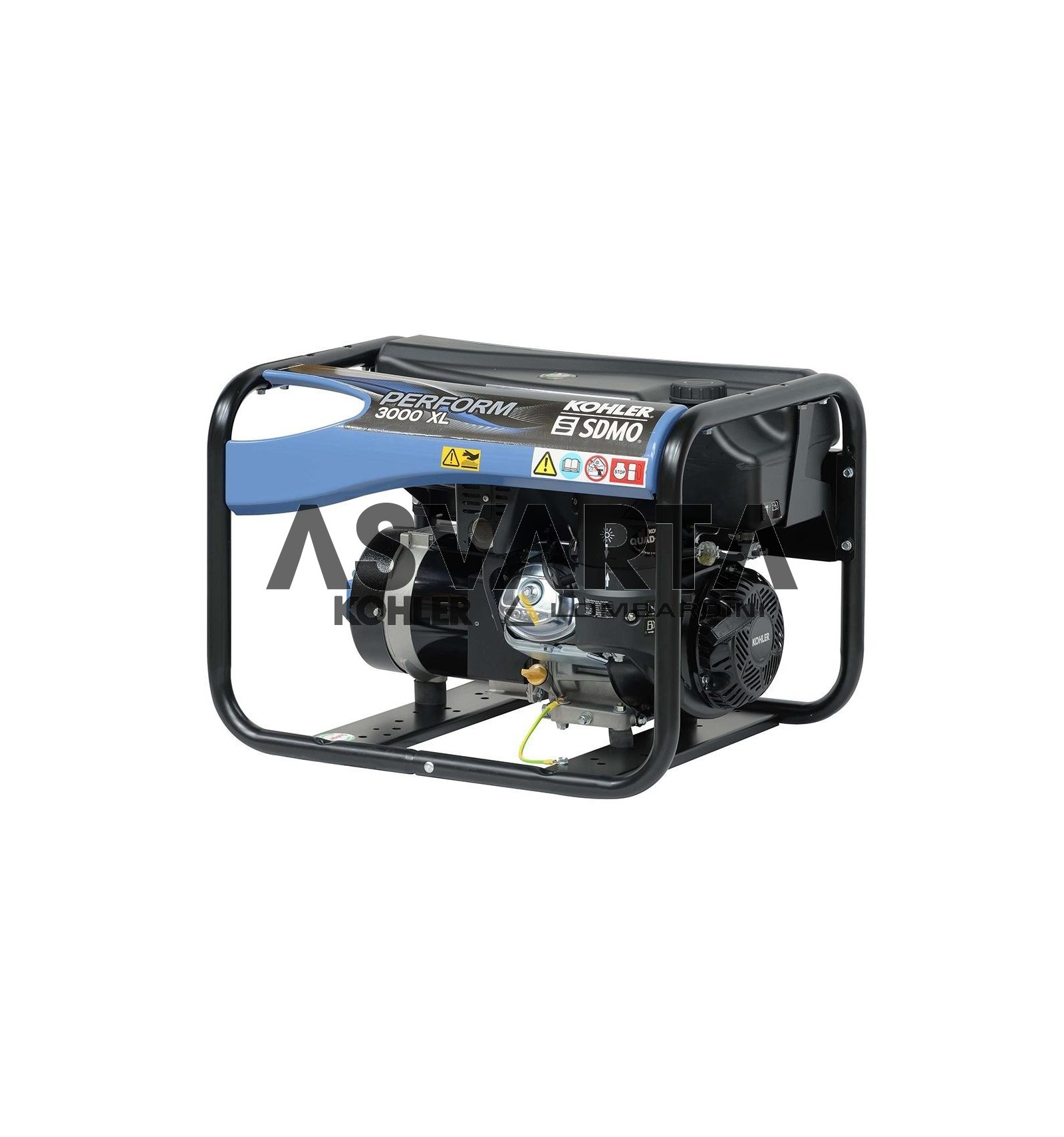

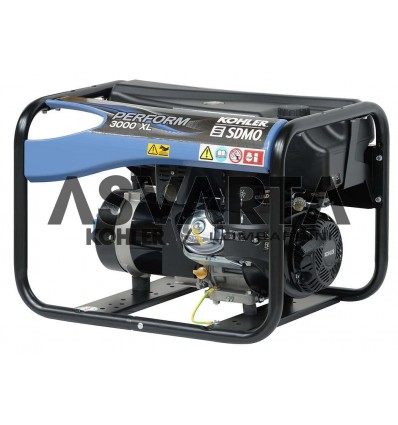

Generator PERFORM 3000 XL C5 Kohler SDMO

Generator PERFORM 3000 XL C5

This generator is prepared to cope with the activities present in the needs of the consumer. It adapts to the user thanks to its great autonomy and the air-cooled engine that Kohler SDMO has prepared specifically for this group. Its engine has a starter per launcher and also a type of distribution managed by overhead valves that supports a displacement of 208 cubic centimeters.

This group has a full warranty of 3 years.

PERFORM 3000 XL C5 for small industrial applications

Thanks to its QUAD CLEAN cyclonic air filter, this generator set captures the finest particles in its development of activity, thus expelling the thickest ones to guarantee adequate temperatures during use. Its 4 levels of filtration offer an always clean air intake that keeps the components of this group in a state of health and useful life that extends to the maximum. The autonomy and power of the engine offer outstanding satisfaction in obtaining results in terms of quality price.

This generator is ideal for small industrial applications given its fully optimized characteristics for professional use. Thanks to its technical performance we will be able to establish an outstanding level of results indicated for your group and your professional activity, training a frequent use.

With the delivery of your group is included:

• A funnel
• Elements that facilitate greater stability in different types of soil
• User manual for correct use
• Ergonomic non-slip handles.

You can check the list of compatible accessories below.

ENGINE CHARACTERISTICS

• KOHLER engine brand
• Engine type CH270_C5
• Distribution Head valves
• Launcher Starter
• Oil safety Yes
• Displacement (cm3) 208
• Oil capacity (L) 0,60

ALTERNATOR CHARACTERISTICS

• Ring and brushless technology
• AVR Adjustment No
• Protection rating IP 23
• Insulation class H

DESCRIPTIVE SOCKETS AND BOX

• 2 sockets 230V 10/16A - circuit breaker

DIMENSIONS AND WEIGHT

• Length (cm) 65
• Width (cm) 51
• Height (cm) 46
• Net weight (kg) 46,50

PACKAGING

• Type of packaging Cardboard
• Length (cm) 66
• Width (cm) 52.50
• Height (cm) 47
• Weight (kg) 48,50
• Pallet type 140/110
• Number of boxes per pallet 12
• Pallet height (cm) 154
• Weight of conditioned pallet (kg) 598

SHIPPING IN SPAIN AND PORTUGAL

IBERIAN PENINSULA (SPAIN AND PORTUGAL)

Shipping cost: 4,50 €

FREE shipping on purchases over: 35 €

Ceuta and Melilla

Shipping cost: 7,50 €

FREE shipping on purchases over: 50 €

Canary Islands

Shipping rates to the Canary Islands depend on the weight of the package:

Shipping to European Union

*Zone 1: Germany, Belgium, Denmark, Slovakia, France, Ireland, Italy, Luxembourg, Netherlands, Poland, Sweden

**Zone 2: Austria, Croatia, Estonia, Finland, Latvia, Lithuania, Czech Republic

**Zone 3: Bulgaria, Cyprus, Slovenia, Hungary, Malta, Romania

Shipments to Europe to non-European Union Countries (*1)

Shipping to África (*2)

Shipping to Asia y Oceanía (*3)

Shipping to North América (*4)

Shipping to Central, South America and Islands (*5)

Shipping to Nordic Islands (*6)

(*1) No EU: Norway, United Kingdom, Switzerland, Albania, Belarus, Bosnia and Herzegovina, Macedonia, Moldova, Montenegro, Serbia, Ukraine, Turkey, Gibraltar, Vatican City, Liechtenstein, Monaco, San Marino, Guernsey, Jersey,

(*2) Africa: Morocco, Equatorial Guinea, Algeria, Egypt, South Africa, Chad, Gambia, Central African Republic, Tunisia, Yemen, Sudan, Angola, Benin, Botswana, British Indian Ocean Territory, Burkina Faso, Burundi, Cape Verde, Cameroon, Democratic Republic of Congo, Republic of Congo, Ivory Coast, Djibouti, Eritrea, Ethiopia, Gabon, Ghana, Guinea-Bissau, Kenya, Lesotho, Liberia, Madagascar, Malawi, Mali, Mauritius, Mauritania, Mozambique, Namibia, Niger, Nigeria, Reunion Island, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Swaziland, Tanzania, Togo, Uganda, Zambia, Zimbabwe, Comoros, Mayotte, Somalia, Libya

(*3) Asia + Oceanía: Israel, Bangladesh, Bhutan, Burma, Brunei, Nepal, Sri Lanka, Armenia, Azerbaijan, Georgia, Kazakhstan, Kyrgyzstan, Turkmenistan, Uzbekistan, Singapore, Thailand, Taiwan, Mongolia, Hong Kong, Philippines, Indonesia, Malaysia, Japan, South Korea, India, Saudi Arabia, Bahrain, United Arab Emirates, Jordan, Kuwait, Lebanon, Oman, Pakistan, Qatar, China, Laos, Macau, East Timor, Vietnam, Afghanistan, North Korea, Palestinian Territories, Iraq, Tajikistan, Cambodia, Iran, Russia, Australia, Norfolk Island, New Zealand, Cook Islands, Fiji, Guam, Northern Mariana Islands, Kiribati, Marshall Islands, Micronesia, New Caledonia, Palau, Papua New Guinea, French Polynesia, Solomon Islands, Samoa, American Samoa, Tuvalu, Vanuatu, Wallis and Futuna, Maldives, Tonga, Nauru, Niue, French Southern Territories.

(*4) North America: USA, Mexico, Canada, Saint Pierre and Miquelon

(*5) Central + South America + Islands: Puerto Rico, Belize, Costa Rica, El Salvador, Guatemala, Haiti, Honduras, Nicaragua, Dominican Republic, Chile, Argentina, Brazil, Bolivia, Panama, Paraguay, Peru, Uruguay, Venezuela, Colombia, Ecuador, Anguilla, Antigua and Barbuda, Aruba, Bahamas, Barbados, Bermuda, Dominica, Grenada, Guadeloupe, Guyana, Virgin Islands, Jamaica, Martinique, Montserrat, Saint Martin, Saint Vincent and the Grenadines, Saint Lucia, Trinidad and Tobago, Netherlands Antilles, South Georgia and the South Sandwich Islands, Maldives, Saint Barthelemy, Turks and Caicos Islands, Cayman Islands, Saint Kitts and Nevis, US Virgin Islands, Cuba, French Guiana, Suriname.

(*6) Nordic Islands: Iceland, Greenland, Faroe Islands.

GENERAL SPECIFICATIONS

• Engine brand MITSUBISHI
• KOHLER alternator trademark
• Voltage (V) 400/230
• Control panel APM303
• Optional Box APM403
• Optional Box M80
• Optional box Terminal strip

• Type of cooling Radiator
• Class of performance G1

DIMENSIONS COMPACT VERSION

• Length (mm) 1405
• Width (mm) 715
• Height (mm) 1053
• Tank capacity (L) 50
• Net weight (kg) 387

DIMENSIONS SOUNDPROOFED VERSION M126

• Soundproofing type M126
• Length (mm) 1750
• Width (mm) 775
• Height (mm) 1230
• Tank capacity (L) 50
• Net weight (kg) 530
• Sound pressure level @1m in dB(A)
• 50Hz (75% PRP) 71
• Sound pressure level @7m in dB(A) 58

General

• Engine brand MITSUBISHI
• Ref. Engine S3L2-SD *
• Atmo Suction Type
• Diesel fuel
• Cylinder arrangement L
• Number of cylinders 3
• Displacement (l) 1,32
• Diameter (mm) * Stroke (mm) 78 * 92
• Compression ratio 22 : 1
• Speed (tr/mn) 1500
• Max. auxiliary power at nominal speed (kW) 11.20
• Frequency regulation (%) +/- 2.5%
• Type of injection Indirect
• Type of control Mechanical
• Air filter type, Dry models

Fuel system

• Maximum flow rate of fuel oil pump (l/h) 18
• Max. pressure in fuel circuit (m) 1.50
• Consumption with fan
• Consumption 110% load (l/h) 0
• Consumption 100% PRP load (l/h) 3.10
• Consumption 75% PRP load (l/h) 2.50
• Consumption 50% PRP load (l/h) 2.10

Lubrication system

• Oil capacity (l) 4,20
• Min. oil pressure (bar) 0.50
• Max. oil pressure (bar) 4
• Oil sump capacity (l) 3,70
• Oil consumption 100% ESP 50Hz (l/h) 0.02
• Air intake system
• Max. inlet back pressure (mm H2O) 200
• Combustion air flow rate (l/s) 13.60

Cooling system

• Engine and radiator capacity (l) 4.20
• Fan power (kW) 0.40
• Fan air flow rate (m3/s) 0.50
• Radiator back pressure (mm H2O) 10
• Type of cooling Glycol-Ethylene
• Radiated heat (kW) 1
• Heat expelled in the water HT (kW) 10
• Water temperature at outlet (°C) 93
• Engine stop water temperature (°C) 111
• Start of opening of HV thermostat (°C) 82
• Total opening of the HV thermostat (°C) 95

Alternator specifications

• KOHLER alternator trademark
• Ref. Alternator KH00350T
• Number of poles 4
• Number of bearings
• Ring and brushless technology
• IP23 protection rating
• Insulation class H
• Number of threads 12
• Ability to maintain a
• short circuit at 3 In for 10 s
• Yes
• AVR adjustment Yes
• Direct Coupling

Application data

• Excess speed (rpm) 2250
• Power factor (Cos Phi) 0.80
• Regulating the voltage to the regime
• established (+/- %) 1
• Waveform: NEMA=TIF <45
• Waveform: IEC=FHT <2
• Total harmonic distortion in
• vacuum DHT (%) 2.6
• Total harmonic distortion in
• DHT load (%) 2.3
• Response time (Delta U = 20%)
• transitional) (ms) 200
