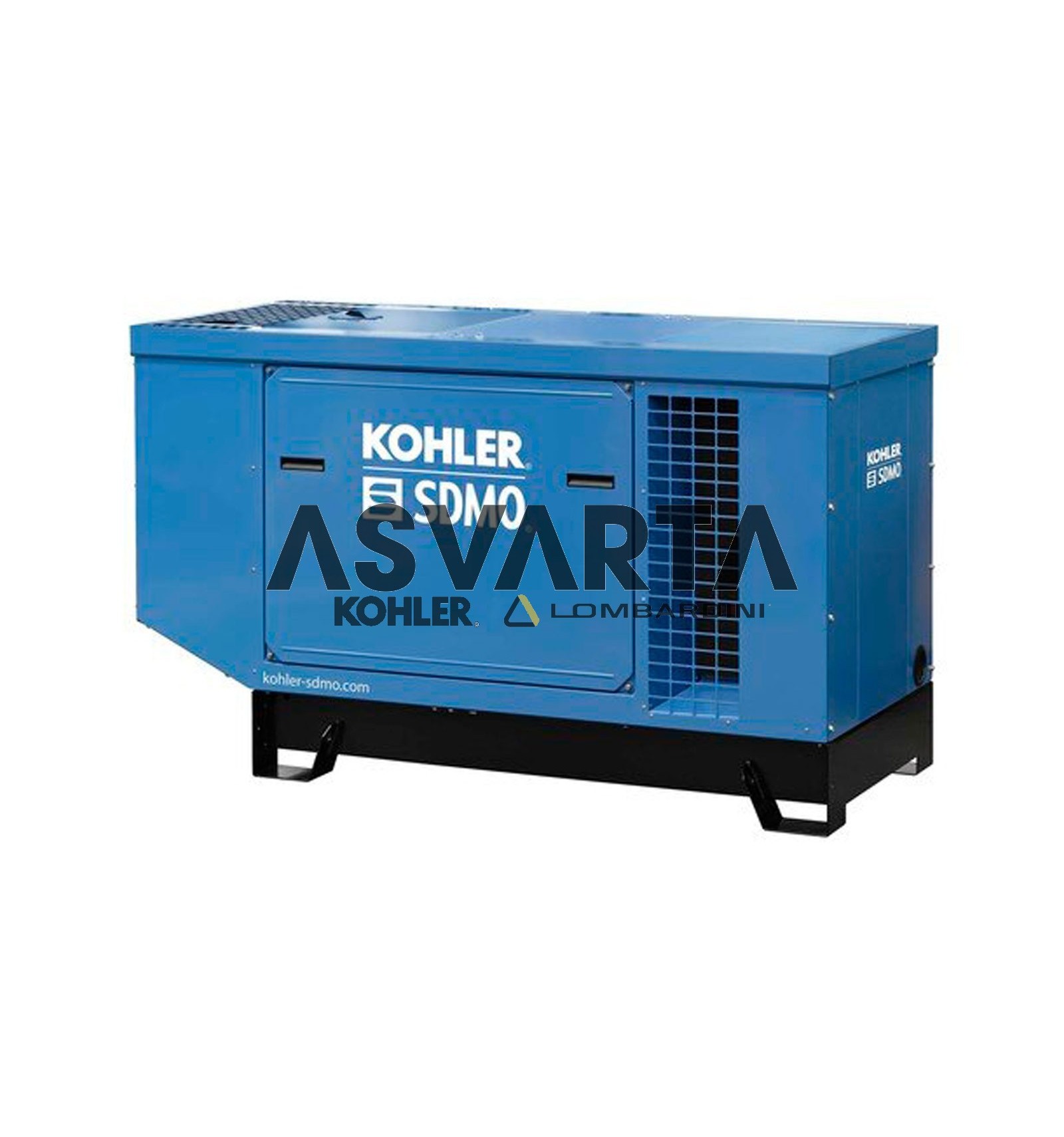

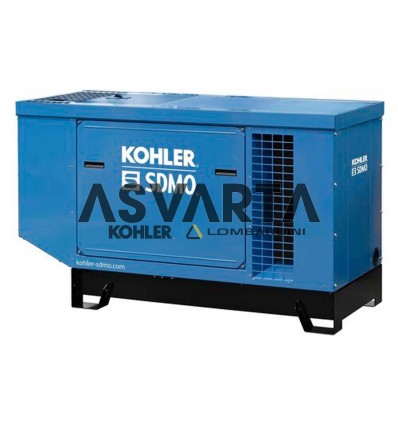

Generator SDMO J22 220 JOHN DEERE Engine

J22 220 Silent Generator Set

Thanks to its great design, this generator has a robust chassis and high quality covers that guarantee the safety of people and the use of the facilities. Approved by the most demanding standards. Its engine is composed of the highest levels of demand, offering a high power density, starting capacity with a high autonomy and a low temperature always maintained. With a wide maintenance interval offered.

This J22 220 marine generator offers certified and optimized sound levels that allow its usability to be superior for the user and its type of application. Thanks to its optimized fuel consumption, this generator is prepared to offer a maintained power even in extreme conditions. It has the highest quality of electricity and high starting and charging, according to ISO 8528-5.

The cooling of this generator becomes a flexible solution thanks to the electrically driven radiator that it is composed of. The cooling of this generator becomes a flexible solution thanks to the electric drive radiator that composes it. It allows a production capacity at high temperatures and altitudes thanks to the optimization applied by Kohler SDMO.

Generator J22 220 Industrial range

The Kohler SDMO Spain POWER PRODUCTS series ensures the optimal energy response to all needs and situations requiring electrical power between 7.2 and 4200kVA.

These SDMO generators or premium quality gensets offer endless application possibilities, covering a wide range of uses to perfectly suit any application.

This generator comes equipped with the following premises:

• Optimized height that allows the use of the generator by means of displacement in forks.
• Optimized against corrosion, by means of studies carried out by the French Institute of Corrosion.
• Optimised soundproofing.
• Separate 9dB(a) silencer.
• DC starting battery charged with electrolyte.
• Instruction manual.
• Plastic film covered packaging.
• Delivered with oil and antifreeze fluid.
• A water-cooled industrial diesel engine.
• Charging alternator and electric starter.
• Standard air filter.
• Schneider or ABB electrical circuit breaker, adapted to short circuit currents in generators.
• Welded steel chassis that absorbs 85% of the vibrations.
• Up to four lifting points on the chassis.
• Steel chassis with double layer of epoxy paint.

Please note that all these generators are manufactured in France in Kohler's modern, certified SDMO facility.

The generators and engines were tested in the prototype and production phase, built in the factory. This design guarantees a minimum of 1000 hours of salt spray resistance. Ergonomic accesses allow easy maintenance and connection of the generator set. In addition to a robust design optimized for transport and handling.

General

• Engine brand JOHN DEERE
• Engine part no. 3029DSG20 *
• Suction type Atmo
• Cylinder arrangement L
• Number of cylinders 3
• Displacement (l) 2,91
• Diameter (mm) * Stroke (mm) 106 * 110
• Compression ratio 17.2 : 1
• Speed (tr/mn) 1500
• Max. auxiliary power at nominal speed (kW) 31
• Frequency regulation (%) +/- 2.5%
• Injection type Direct
• Type of control Mechanical
• Air Filter Type, Dry Models

Fuel system

• Maximum flow rate of fuel oil pump (l/h) 56
• Max. pressure in the fuel circuit (m) 1
• Consumption with fan
• Consumption 110% load (l/h) 8,60
• Consumption 100% PRP load (l/h) 7,50
• Consumption 75% PRP load (l/h) 5.50
• Consumption 50% PRP load (l/h) 4
• Emissions 1165
• PM emission (mg/Nm3) 5% O2 74
• CO emission (mg/Nm3) 5% O2 1165
• NOx emission (mg/Nm3) 5% O2 5245
• HC emission (mg/Nm3) 5% O2 3
• Lubrication system
• Oil capacity (l) 6
• Min. oil pressure (bar) 1
• Max. oil pressure (bar) 5
• Oil sump capacity (l) 5,30
• Oil consumption 100% ESP 50Hz (l/h) 0.07
• Air intake system
• Max. inlet back pressure (mm H2O) 300
• Combustion air flow rate (l/s) 32

Exhaust system

• PRP ESP
• Heat expelled in the exhaust (kW) 31
• Exhaust gas temperature (°C) 555
• Exhaust gas flow (l/s) 87
• Max. exhaust back pressure (mm H2O) 750

Cooling system

• Engine and radiator capacity (l) 16,10
• Fan power (kW) 0.70
• Fan air flow (m3/s) 1.74
• Radiator back pressure (mm H2O) 20
• Type of cooling Glycol-Ethylene
• Radiated heat (kW) 6
• Heat expelled in the water HT (kW) 18
• Water temperature at outlet (°C) 93
• Engine stop water temperature (°C) 105
• Start of HV thermostat opening (°C) 82
• Total opening of HV thermostat (°C) 94

Alternator specifications

• KOHLER alternator trademark
• Ref. Alternator KH00371T
• Number of poles 4
• Number of bearings
• Ring and brushless technology
• IP23 protection rating
• Insulation class H
• Number of wires 12
• Ability to maintain a
• short circuit at 3 In for 10 s
• AVR Adjustment Yes
• Direct Coupling

Application data

• Excess speed (rpm) 2250
• Power factor (Cos Phi) 0.80
• Regulating the voltage to the regime
• established (+/- %) 0,50
• Waveform: NEMA=TIF <50
• Waveform: IEC=FHT <2
• Total harmonic distortion in
• vacuum DHT (%) <3.5
• Total harmonic distortion in
• DHT load (%) <5
• Response time (Delta U = 20%)
• transitional) (ms) 500

Performance data

• Continuous rated power 40°C
• (kVA) 24,50
• Maximum unbalance rate (%) 100

SHIPPING IN SPAIN AND PORTUGAL

IBERIAN PENINSULA (SPAIN AND PORTUGAL)

Shipping cost: 4,50 €

FREE shipping on purchases over: 35 €

Ceuta and Melilla

Shipping cost: 7,50 €

FREE shipping on purchases over: 50 €

Canary Islands

Shipping rates to the Canary Islands depend on the weight of the package:

Shipping to European Union

*Zone 1: Germany, Belgium, Denmark, Slovakia, France, Ireland, Italy, Luxembourg, Netherlands, Poland, Sweden

**Zone 2: Austria, Croatia, Estonia, Finland, Latvia, Lithuania, Czech Republic

**Zone 3: Bulgaria, Cyprus, Slovenia, Hungary, Malta, Romania

Shipments to Europe to non-European Union Countries (*1)

Shipping to África (*2)

Shipping to Asia y Oceanía (*3)

Shipping to North América (*4)

Shipping to Central, South America and Islands (*5)

Shipping to Nordic Islands (*6)

(*1) No EU: Norway, United Kingdom, Switzerland, Albania, Belarus, Bosnia and Herzegovina, Macedonia, Moldova, Montenegro, Serbia, Ukraine, Turkey, Gibraltar, Vatican City, Liechtenstein, Monaco, San Marino, Guernsey, Jersey,

(*2) Africa: Morocco, Equatorial Guinea, Algeria, Egypt, South Africa, Chad, Gambia, Central African Republic, Tunisia, Yemen, Sudan, Angola, Benin, Botswana, British Indian Ocean Territory, Burkina Faso, Burundi, Cape Verde, Cameroon, Democratic Republic of Congo, Republic of Congo, Ivory Coast, Djibouti, Eritrea, Ethiopia, Gabon, Ghana, Guinea-Bissau, Kenya, Lesotho, Liberia, Madagascar, Malawi, Mali, Mauritius, Mauritania, Mozambique, Namibia, Niger, Nigeria, Reunion Island, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Swaziland, Tanzania, Togo, Uganda, Zambia, Zimbabwe, Comoros, Mayotte, Somalia, Libya

(*3) Asia + Oceanía: Israel, Bangladesh, Bhutan, Burma, Brunei, Nepal, Sri Lanka, Armenia, Azerbaijan, Georgia, Kazakhstan, Kyrgyzstan, Turkmenistan, Uzbekistan, Singapore, Thailand, Taiwan, Mongolia, Hong Kong, Philippines, Indonesia, Malaysia, Japan, South Korea, India, Saudi Arabia, Bahrain, United Arab Emirates, Jordan, Kuwait, Lebanon, Oman, Pakistan, Qatar, China, Laos, Macau, East Timor, Vietnam, Afghanistan, North Korea, Palestinian Territories, Iraq, Tajikistan, Cambodia, Iran, Russia, Australia, Norfolk Island, New Zealand, Cook Islands, Fiji, Guam, Northern Mariana Islands, Kiribati, Marshall Islands, Micronesia, New Caledonia, Palau, Papua New Guinea, French Polynesia, Solomon Islands, Samoa, American Samoa, Tuvalu, Vanuatu, Wallis and Futuna, Maldives, Tonga, Nauru, Niue, French Southern Territories.

(*4) North America: USA, Mexico, Canada, Saint Pierre and Miquelon

(*5) Central + South America + Islands: Puerto Rico, Belize, Costa Rica, El Salvador, Guatemala, Haiti, Honduras, Nicaragua, Dominican Republic, Chile, Argentina, Brazil, Bolivia, Panama, Paraguay, Peru, Uruguay, Venezuela, Colombia, Ecuador, Anguilla, Antigua and Barbuda, Aruba, Bahamas, Barbados, Bermuda, Dominica, Grenada, Guadeloupe, Guyana, Virgin Islands, Jamaica, Martinique, Montserrat, Saint Martin, Saint Vincent and the Grenadines, Saint Lucia, Trinidad and Tobago, Netherlands Antilles, South Georgia and the South Sandwich Islands, Maldives, Saint Barthelemy, Turks and Caicos Islands, Cayman Islands, Saint Kitts and Nevis, US Virgin Islands, Cuba, French Guiana, Suriname.

(*6) Nordic Islands: Iceland, Greenland, Faroe Islands.

GENERAL SPECIFICATIONS

• Engine brand MITSUBISHI
• KOHLER alternator trademark
• Voltage (V) 400/230
• Control panel APM303
• Optional Box APM403
• Optional Box M80
• Optional box Terminal strip

• Type of cooling Radiator
• Class of performance G1

DIMENSIONS COMPACT VERSION

• Length (mm) 1405
• Width (mm) 715
• Height (mm) 1053
• Tank capacity (L) 50
• Net weight (kg) 387

DIMENSIONS SOUNDPROOFED VERSION M126

• Soundproofing type M126
• Length (mm) 1750
• Width (mm) 775
• Height (mm) 1230
• Tank capacity (L) 50
• Net weight (kg) 530
• Sound pressure level @1m in dB(A)
• 50Hz (75% PRP) 71
• Sound pressure level @7m in dB(A) 58

General

• Engine brand MITSUBISHI
• Ref. Engine S3L2-SD *
• Atmo Suction Type
• Diesel fuel
• Cylinder arrangement L
• Number of cylinders 3
• Displacement (l) 1,32
• Diameter (mm) * Stroke (mm) 78 * 92
• Compression ratio 22 : 1
• Speed (tr/mn) 1500
• Max. auxiliary power at nominal speed (kW) 11.20
• Frequency regulation (%) +/- 2.5%
• Type of injection Indirect
• Type of control Mechanical
• Air filter type, Dry models

Fuel system

• Maximum flow rate of fuel oil pump (l/h) 18
• Max. pressure in fuel circuit (m) 1.50
• Consumption with fan
• Consumption 110% load (l/h) 0
• Consumption 100% PRP load (l/h) 3.10
• Consumption 75% PRP load (l/h) 2.50
• Consumption 50% PRP load (l/h) 2.10

Lubrication system

• Oil capacity (l) 4,20
• Min. oil pressure (bar) 0.50
• Max. oil pressure (bar) 4
• Oil sump capacity (l) 3,70
• Oil consumption 100% ESP 50Hz (l/h) 0.02
• Air intake system
• Max. inlet back pressure (mm H2O) 200
• Combustion air flow rate (l/s) 13.60

Cooling system

• Engine and radiator capacity (l) 4.20
• Fan power (kW) 0.40
• Fan air flow rate (m3/s) 0.50
• Radiator back pressure (mm H2O) 10
• Type of cooling Glycol-Ethylene
• Radiated heat (kW) 1
• Heat expelled in the water HT (kW) 10
• Water temperature at outlet (°C) 93
• Engine stop water temperature (°C) 111
• Start of opening of HV thermostat (°C) 82
• Total opening of the HV thermostat (°C) 95

Alternator specifications

• KOHLER alternator trademark
• Ref. Alternator KH00350T
• Number of poles 4
• Number of bearings
• Ring and brushless technology
• IP23 protection rating
• Insulation class H
• Number of threads 12
• Ability to maintain a
• short circuit at 3 In for 10 s
• Yes
• AVR adjustment Yes
• Direct Coupling

Application data

• Excess speed (rpm) 2250
• Power factor (Cos Phi) 0.80
• Regulating the voltage to the regime
• established (+/- %) 1
• Waveform: NEMA=TIF <45
• Waveform: IEC=FHT <2
• Total harmonic distortion in
• vacuum DHT (%) 2.6
• Total harmonic distortion in
• DHT load (%) 2.3
• Response time (Delta U = 20%)
• transitional) (ms) 200
