Generator SDMO J22 JOHN DEERE Engine

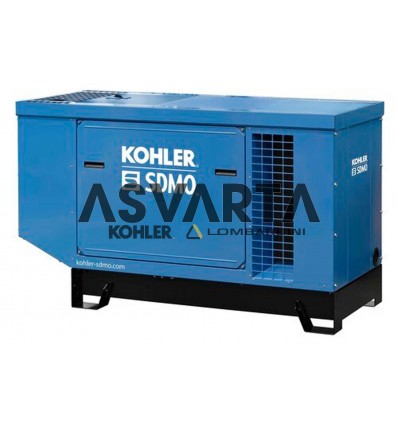

SDMO J22 Generator

These premium quality SDMO generators or generator sets offer endless application possibilities, covering a wide range of uses to perfectly adapt to any application, use and use.

The POWER PRODUCTS series of Kohler SDMO is committed to an optimal energy response to all needs and situations that require an electrical power between 7.2 and 4200kVA.

This generator comes equipped with the following premises:

• Optimized height that allows the use of the generator by means of fork displacement.
• Optimized against corrosion, through studies carried out by the French Institute of Corrosion.
• Optimized soundproofing.
• Separate 9dB(a) silencer.
• DC starter battery charged with electrolyte.
• Instruction manual.
• Packaging covered with plastic film.
• It is delivered with oil and antifreeze liquid.
• A water-cooled industrial engine .
• Charging alternator and electric starter.
• Standard air filter.
• Schneider or ABB electrical circuit breaker, adapted to short-circuit currents in generator sets.
• Welded steel chassis that absorbs 85% of vibrations.
• Up to four lift points on the chassis.
• Steel chassis with double layer of epoxy paint.

The generators and engines were tested in their prototype and production phase, built in the factory. This design ensures a minimum of 1000 hours of salt spray resistance. With ergonomic accesses that allow maintenance and a very simple connection of the generator set. In addition to a robust design optimized for transport and usability.

Please note that all these generators are manufactured in France in the modern and certified facilities of Kohler SDMO.

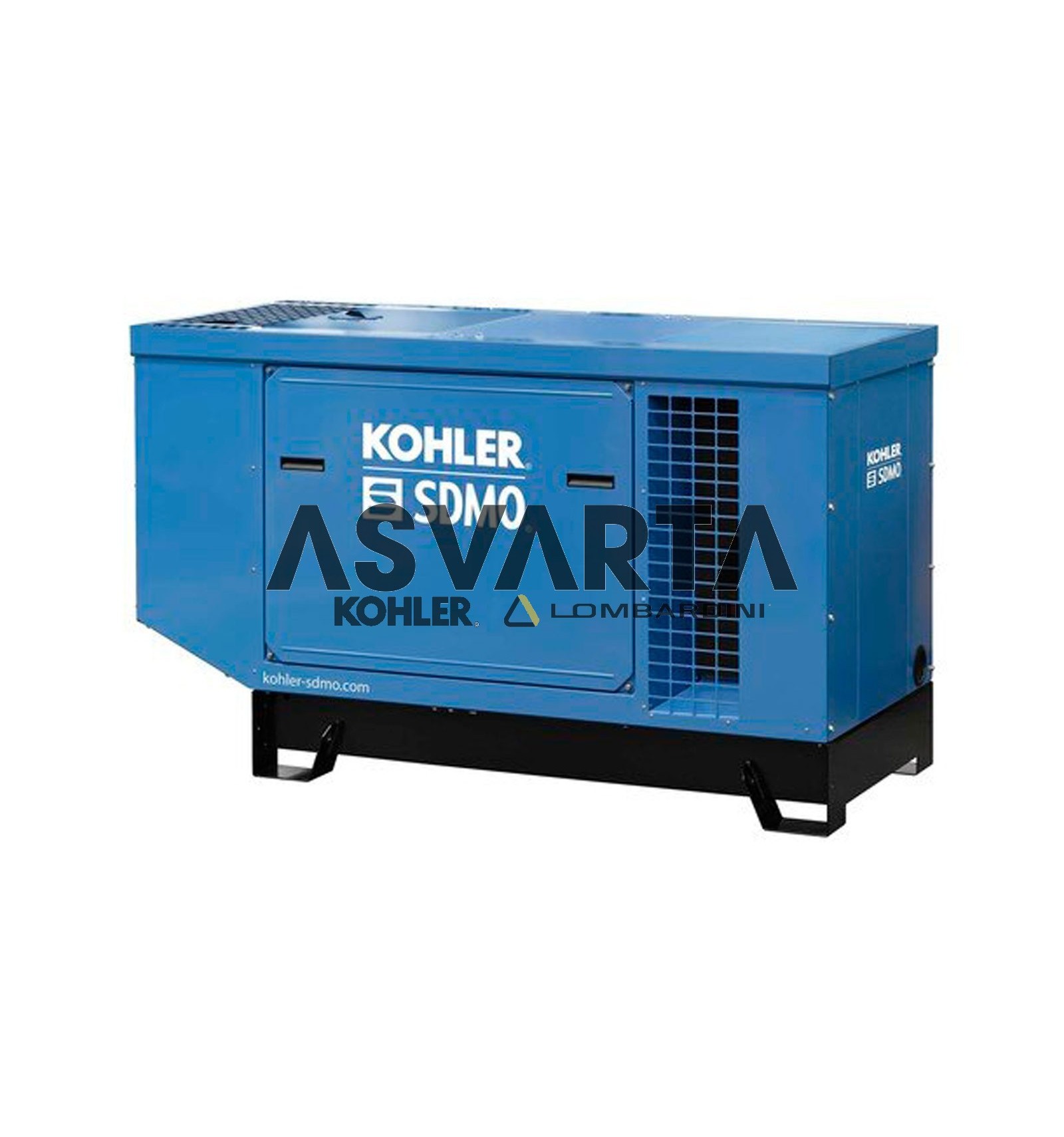

J22 Silent Generator Set

Thanks to its design, this generator has a robust chassis and high quality covers that guarantee the safety of people and the use of the facilities. Approved by the highest standards. Its engine is composed of the highest levels of demand, offering a high power density, starting capacity with a high autonomy and a low temperature always maintained. With a wide maintenance interval offered.

This J22 marine generator offers certified and optimized sound levels that allow its usability to be superior for the user and their type of application. Thanks to its optimized fuel consumption, this generator is prepared to deliver sustained power even in extreme conditions. With the highest quality of electricity and high start and load, according to ISO 8528-5 standard.

The cooling of this generator becomes a flexible solution thanks to the electrically driven radiator that composes. It allows a production capacity at high temperatures and altitudes thanks to the optimization applied by Kohler SDMO.

General

• Engine brand JOHN DEERE
• Engine part no. 3029DSG20 *
• Suction type Atmo
• Cylinder arrangement L
• Number of cylinders 3
• Displacement (l) 2,91
• Diameter (mm) * Stroke (mm) 106 * 110
• Compression ratio 17.2 : 1
• Speed (tr/mn) 1500
• Max. auxiliary power at nominal speed (kW) 31
• Frequency regulation (%) +/- 2.5%
• Injection type Direct
• Type of control Mechanical
• Air Filter Type, Dry Models

Fuel system

• Maximum flow rate of fuel oil pump (l/h) 56
• Max. pressure in the fuel circuit (m) 1
• Consumption with fan
• Consumption 110% load (l/h) 8,60
• Consumption 100% PRP load (l/h) 7,50
• Consumption 75% PRP load (l/h) 5.50
• Consumption 50% PRP load (l/h) 4
• Emissions 1165
• PM emission (mg/Nm3) 5% O2 74
• CO emission (mg/Nm3) 5% O2 1165
• NOx emission (mg/Nm3) 5% O2 5245
• HC emission (mg/Nm3) 5% O2 30

Lubrication system

• Oil capacity (l) 6
• Min. oil pressure (bar) 1
• Max. oil pressure (bar) 5
• Oil sump capacity (l) 5,30
• Oil consumption 100% ESP 50Hz (l/h) 0.07
• Air intake system
• Max. inlet back pressure (mm H2O) 300
• Combustion air flow rate (l/s) 32

Exhaust system

• PRP ESP
• Heat expelled in the exhaust (kW) 31
• Exhaust gas temperature (°C) 555
• Exhaust gas flow (l/s) 87
• Max. exhaust back pressure (mm H2O) 750
• Cooling system
• Engine and radiator capacity (l) 16,10
• Fan power (kW) 0.70
• Fan air flow (m3/s) 1.74
• Radiator back pressure (mm H2O) 20
• Type of cooling Glycol-Ethylene
• Radiated heat (kW) 6
• Heat expelled in the water HT (kW) 18
• Water temperature at outlet (°C) 93
• Engine stop water temperature (°C) 105
• Start of HV thermostat opening (°C) 82
• Total opening of HV thermostat (°C) 94

Alternator specifications

• KOHLER alternator trademark
• Ref. Alternator KH00404T
• Number of poles 4
• Number of bearings
• Ring and brushless technology
• IP23 protection rating
• Insulation class H
• Number of wires 12
• Ability to maintain a
• short circuit at 3 In for 10 s
• AVR Adjustment Yes
• Direct Coupling

Application data

• Excess speed (rpm) 2250
• Power factor (Cos Phi) 0.80
• Regulating the voltage to the regime
• established (+/- %) 1
• Waveform: NEMA=TIF <45
• Waveform: IEC=FHT <2
• Total harmonic distortion in
• vacuum DHT (%) 3,6
• Total harmonic distortion in
• DHT load (%) 2,0
• Response time (Delta U = 20%)
• transitional) (ms) 200

Performance data

• Continuous rated power 40°C
• (kVA) 20
• Maximum unbalance rate (%) 100
