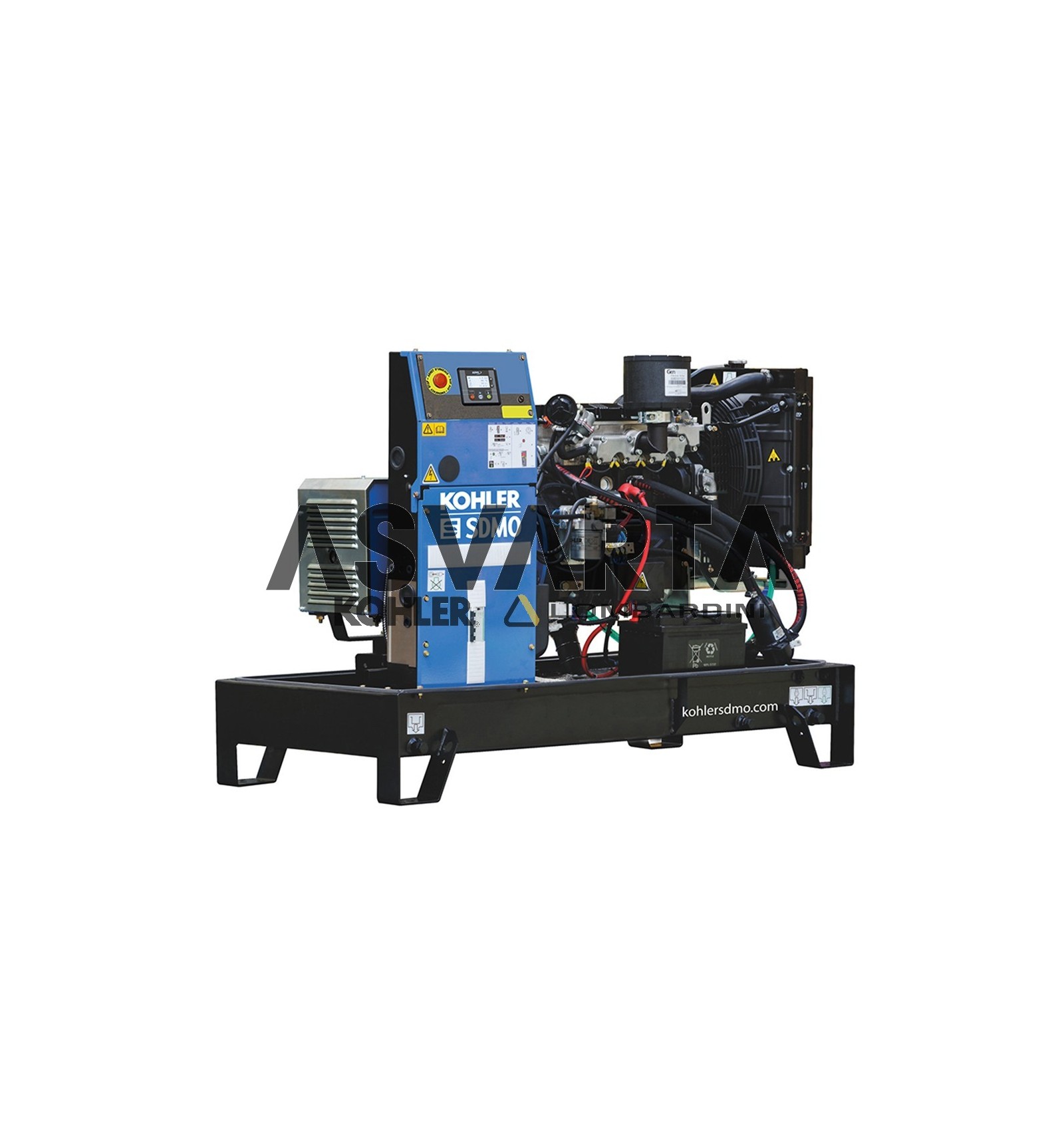

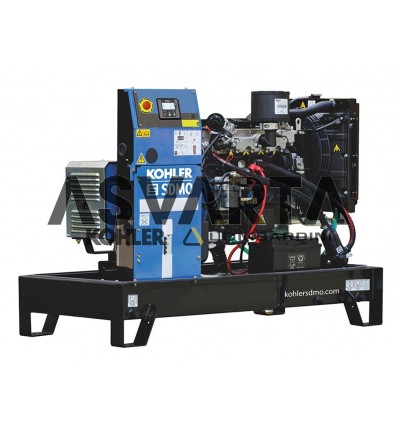

K22 Industrial Kohler SDMO Diesel Generator

APM303 Terminal on K12 Generator

This versatile unit, which can be used in manual or automatic mode, offers the following features:

• Measurements of voltage between phases, fuel level, pressure and power levels, oil forecast and coolant temperature.
• Supervision.
• Configurable reports.
• Safety functions related to overspeed, oil pressure, temperature, minimum and maximum voltage.
• Traceability with up to 12 movements recorded in your history.

This marine generator set is guaranteed for 3 years.

Generator K12 Industrial range

The POWER PRODUCTS series of Kohler SDMO Spain guarantees the optimal energy response to all needs and situations that require an electrical power between 7.2 and 4200kVA.

These premium quality SDMO generators or generator sets offer endless application possibilities, covering a wide range of uses to perfectly adapt to any use.

This generator comes equipped with the following premises:

• Optimized height that allows the use of the generator by means of fork displacement.
• Optimized against corrosion, through studies carried out by the French Institute of Corrosion.
• Optimized soundproofing.
• Separate 9dB(a) silencer.
• DC starter battery charged with electrolyte.
• Instruction manual.
• Packaging covered with plastic film.
• It is delivered with oil and antifreeze liquid.
• A water-cooled industrial diesel engine .
• Charging alternator and electric starter.
• Standard air filter.
• Schneider or ABB electrical circuit breaker, adapted to short-circuit currents in generator sets.
• Welded steel chassis that absorbs 85% of vibrations.
• Up to four lift points on the chassis.
• Steel chassis with double layer of epoxy paint.

Please note that all these generators are manufactured in France in the modern and certified facilities of Kohler SDMO.

The generators and engines were tested in their prototype and production phase, built in the factory. This design ensures a minimum of 1000 hours of salt spray resistance. With ergonomic accesses that allow maintenance and easy connection of the generator set. In addition to a robust design optimized for transport and manageability.

K12 Silent Generator Set

Thanks to its great design, this generator has a robust chassis and high quality covers that guarantee the safety of people and the use of the facilities. Approved by the highest standards. Its engine is composed of the highest levels of demand, offering a high power density, starting capacity with a high autonomy and a low temperature always maintained. With a wide maintenance interval offered.

This K12 marine generator offers certified and optimized sound levels that allow its usability to be superior for the user and their type of application. Thanks to its optimized fuel consumption, this generator is prepared to deliver sustained power even in extreme conditions. With the highest quality of electricity and high start and load, according to ISO 8528-5 standard.

The cooling of this generator becomes a flexible solution thanks to the electrically driven radiator that composes. It allows a production capacity at high temperatures and altitudes thanks to the optimization applied by Kohler SDMO.

GENERAL SPECIFICATIONS

• Engine brand KOHLER KDI
• KOHLER alternator trademark
• Voltage (V) 400/230
• Dashboard: APM303
• Optional Box: APM403
• Optional Box: M80
• Optional Box: Terminal strip 5 5
• Cooling type: Radiator
• Realisation type: G2

DIMENSIONS COMPACT VERSION

• Length (mm) 1410
• Width (mm) 720
• Height (mm) 1020
• Tank capacity (L) 50
• Net weight (kg) 340

DIMENSIONS SOUNDPROOFED VERSION M126

• Soundproofing type M126
• Length (mm) 1750
• Width (mm) 775
• Height (mm) 1230
• Tank capacity (L) 50
• Net weight (kg) 510
• Sound pressure level @1m in dB(A) 50Hz (75% PRP) 67
• Sound pressure level @7m in dB(A) 54

Exhaust system

• Exhaust gas temperature (°C) 443
• Exhaust gas flow (l/s) 41.90
• Max. exhaust back pressure (mm H2O) 750
• Cooling system
• Engine and radiator capacity (l) 5
• Fan power (kW) 0.35
• Fan air flow rate (m3/s) 0.65
• Radiator back pressure (mm H2O)
• Type of cooling Glycol-Ethylene

General

• COMPREHENSIVE DATA
• Ref. Alternator KH00350T
• Phase number Three-phase
• Power factor (Cos Phi) 0.80
• Altitude (m) 0 to 1000
• Excess speed (rpm) 2250
• Number of poles 4
• Ability to maintain a short circuit at 3 In for 10 s Yes
• Insulation class H
• T° class (H/125°) in continuous operation 40°C H / 125°K
• T° class in emergency operation 27°C H / 163°K
• Total harmonic distortion at no load DHT (%) 2,6
• AVR Adjustment Yes
• Total harmonic distortion on DHT load (%) 2,3
• Waveform: NEMA=TIF <45
• Waveform: IEC=FHT <2
• Number of bearings
• Direct Coupling
• Voltage regulation at the set speed (+/- %) 1
• Response time (Delta U = 20% transient) (ms) 200
• Protection class IP 2
• Brushless and ring-free technology

Alternator specifications

• KOHLER alternator trademark
• Ref. Alternator KH00404T

Other information

• Continuous rated power 40°C (kVA) 11
• Emergency power 27°C (kVA) 11.80
• Yield 100% load (%) 85.90
• Air flow rate (m3/s) 0.0550
• Short circuit report (Kcc) 0.90
• Longitudinal unsaturated synchronous R. (Xd) (%) 220,40
• Unsaturated synchronous cross-sectional R. (Xq) (%) 70,50
• Vacuum transient TC (T'do) (ms) 790
• Longitudinal transitional saturated ratio (X'd) (%) 18,70
• Transient CT in Short Circuit (T'd) (ms) 36
• Longitudinal sub-transitory saturated ratio (X''d) (%) 13,30
• Sub-transient TC (T "d) (ms) 13
• Saturated subtransitory cross-sectional ratio (X "q) (%) 69,60
• Sub-transient TC (T "q) (ms) 8
• Unsaturated homopolar r. (Xo) (%) 6.15
• Saturated inverse r. (X2) (%) 16
• Armature CT (Ta) (ms) 46
• No-load excitation current (io) (A) 0.34
• Excitation current on load (ic) (A) 1.46
• Excitation voltage on load (uc) (V) 22.90
• Start-up (Delta U = 20% perm. or 30% trans.) (kVA) 29.50
• Transient Delta U (4/4 load) - Cos Phi : 0.8 AR (%) 14.07
• No-load losses (W) 359
• Heat dissipation (W) 1444
• Maximum unbalance rate (%) 100
