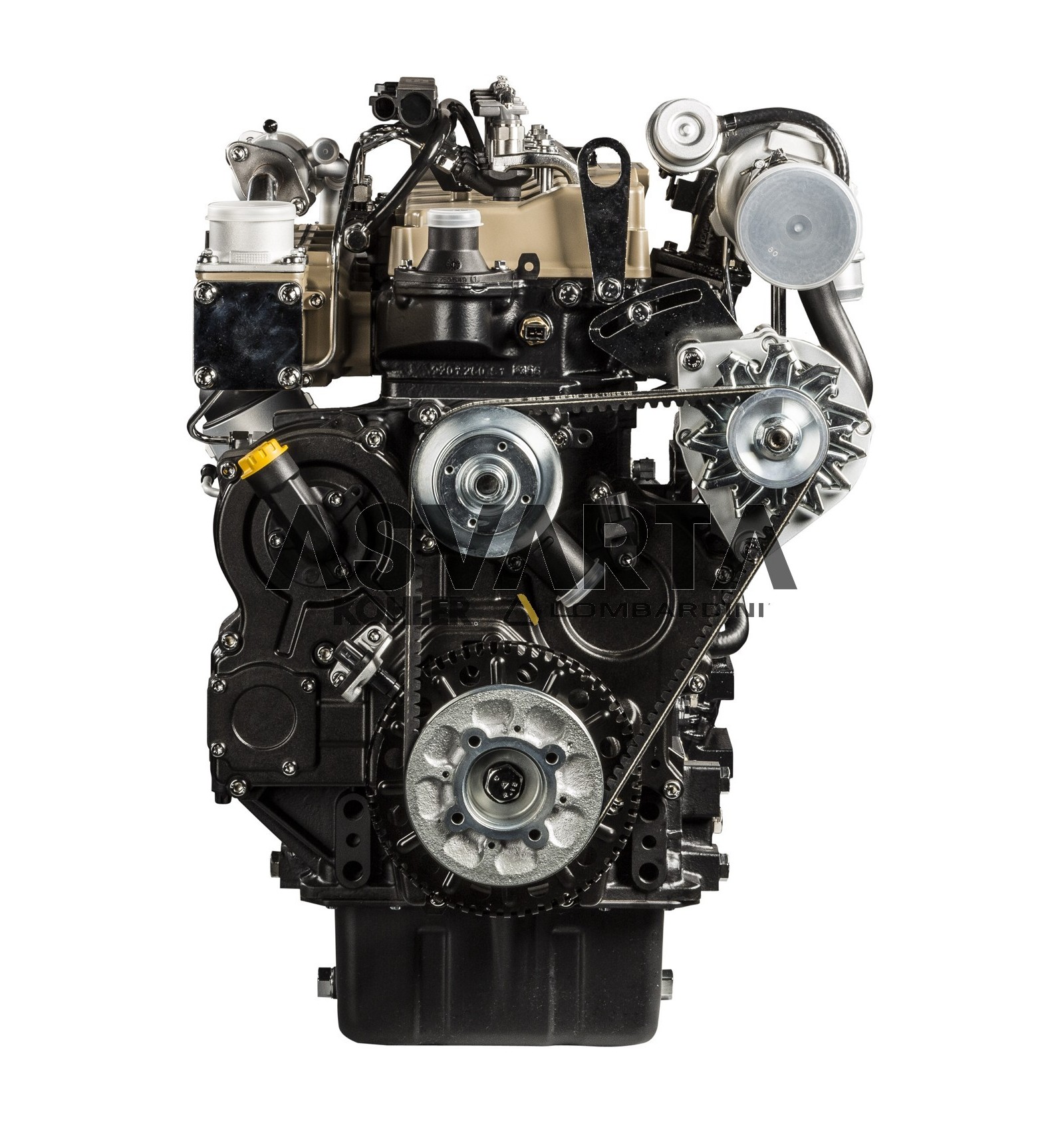

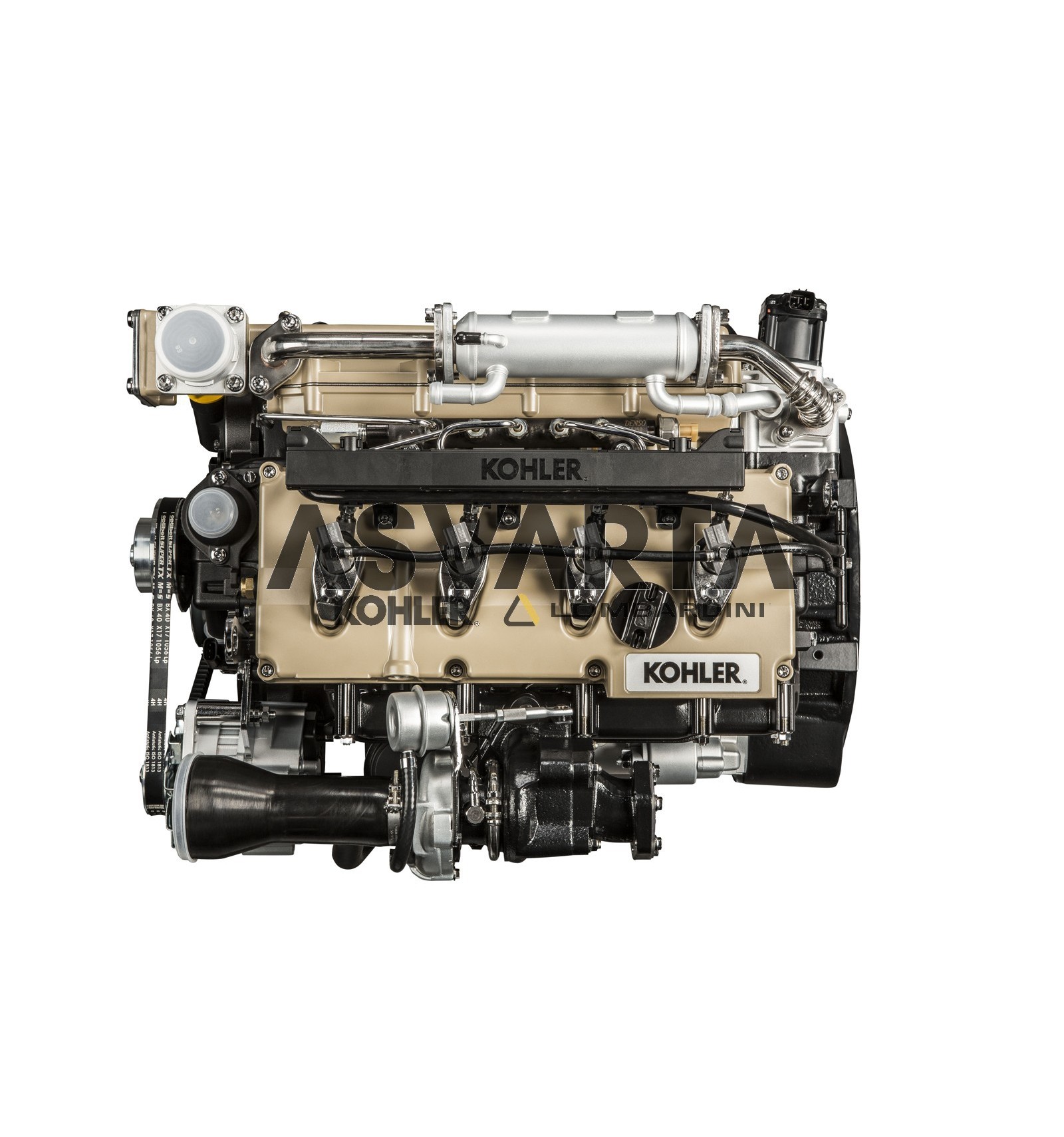

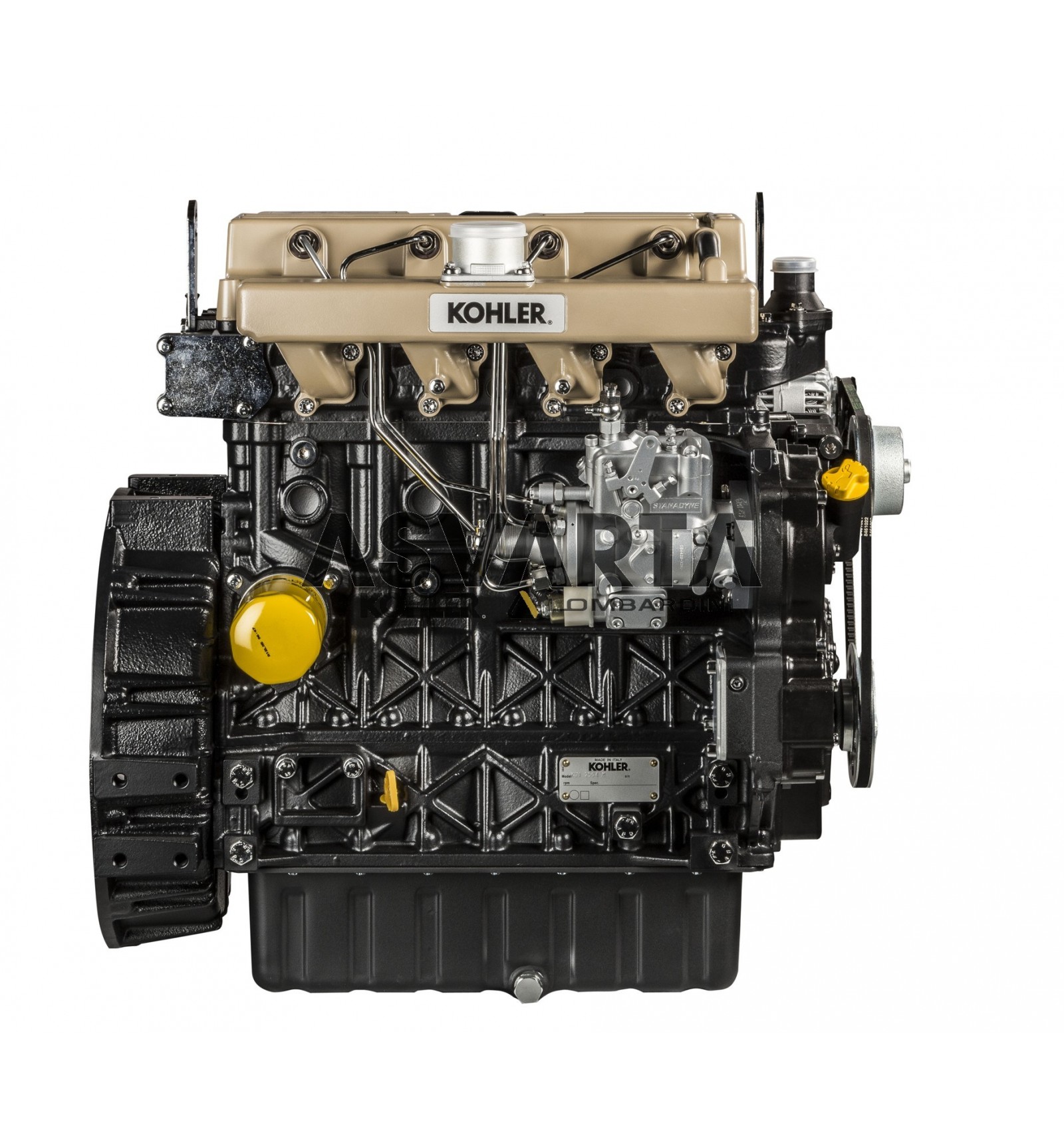

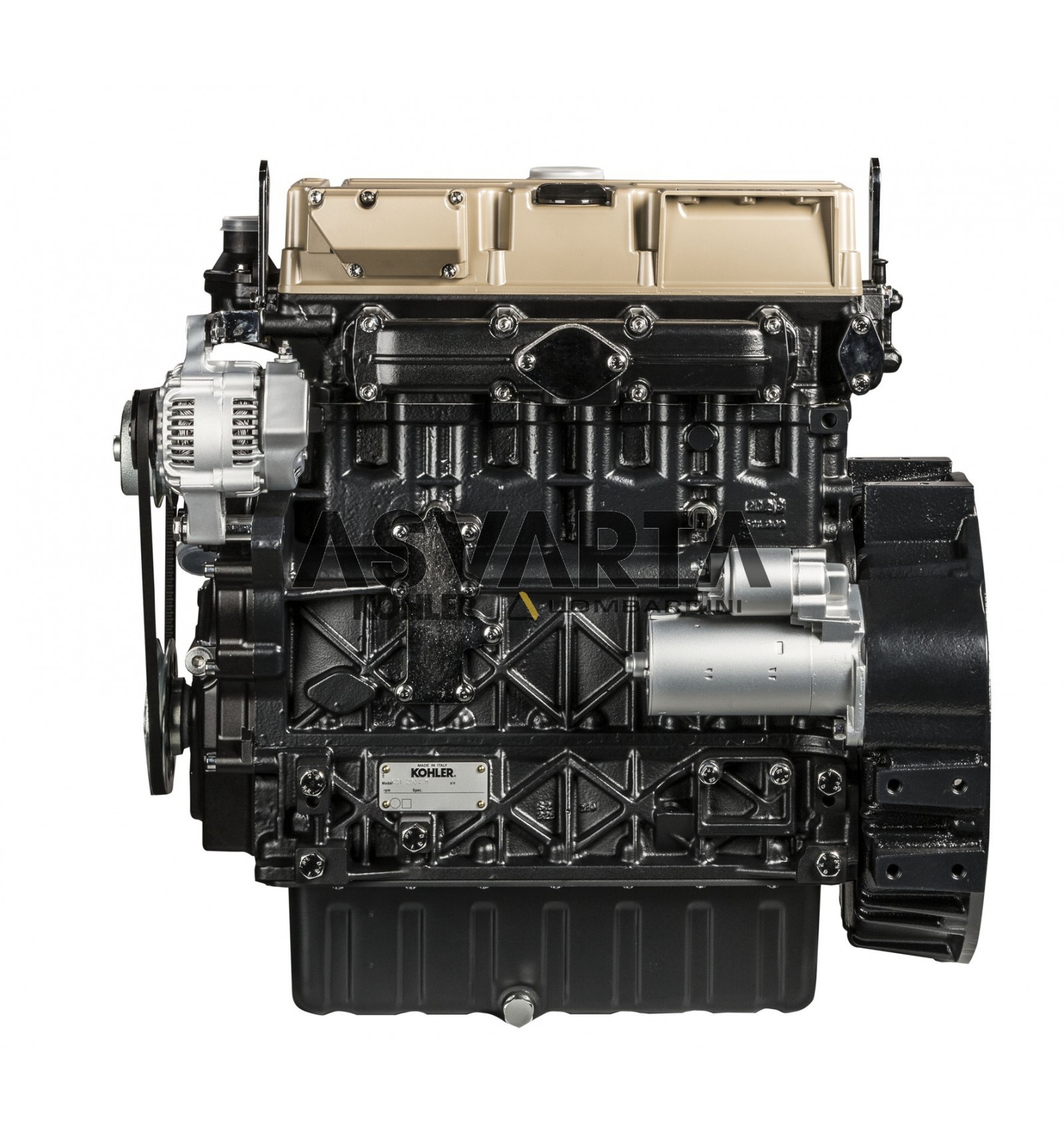

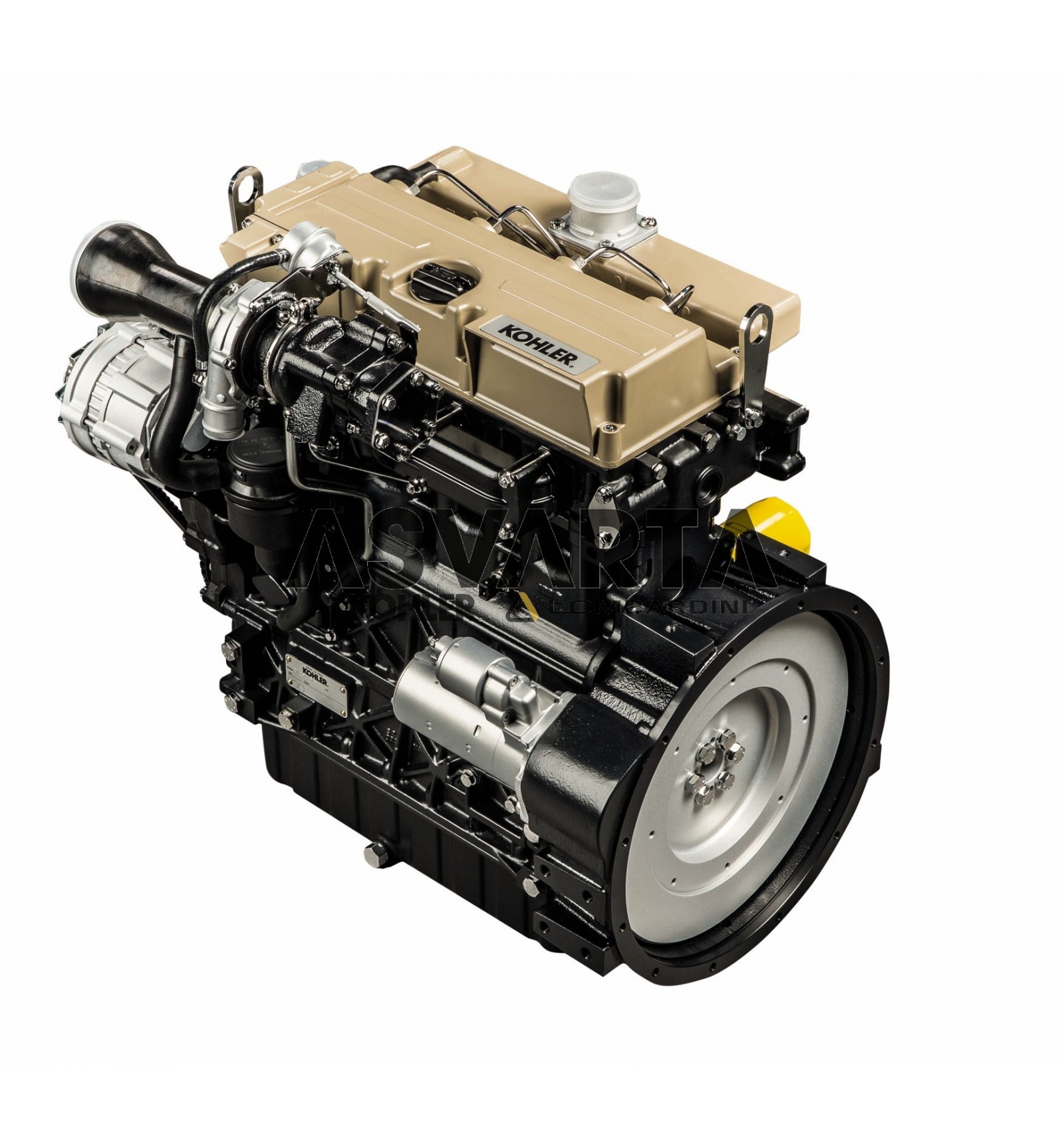

Diesel Engine Kohler KDI 2504 TCR

Kohler Kohler

New

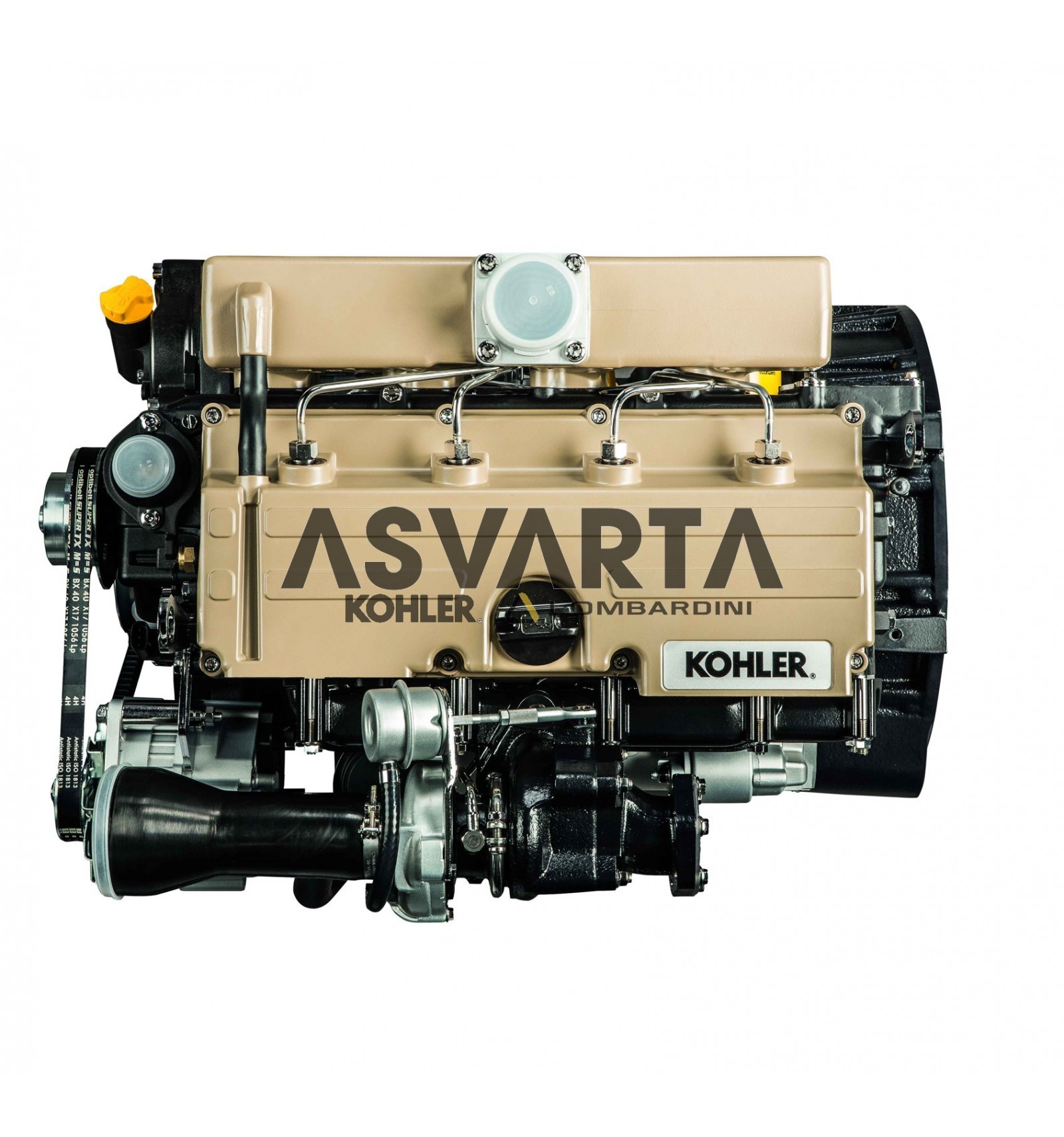

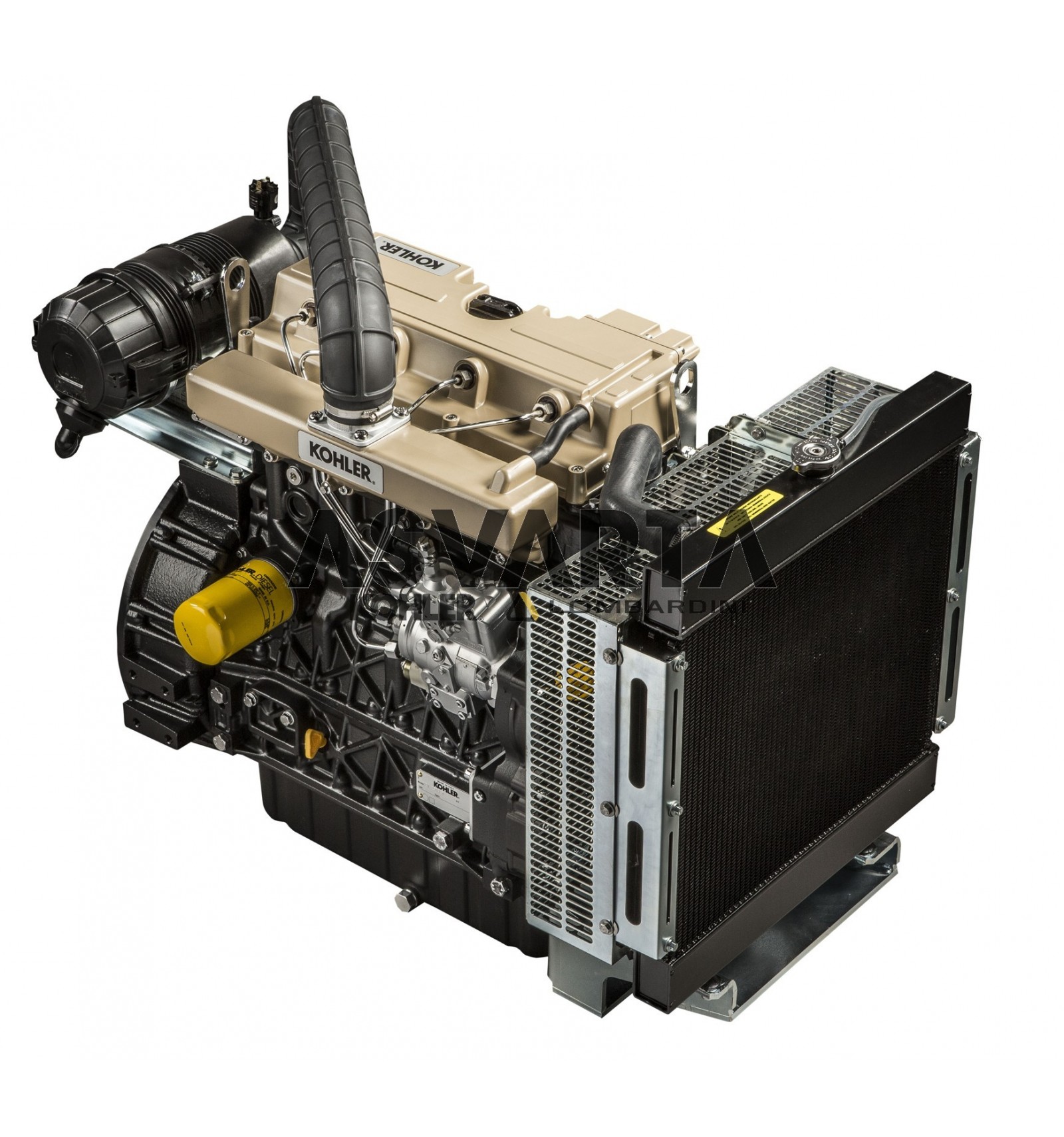

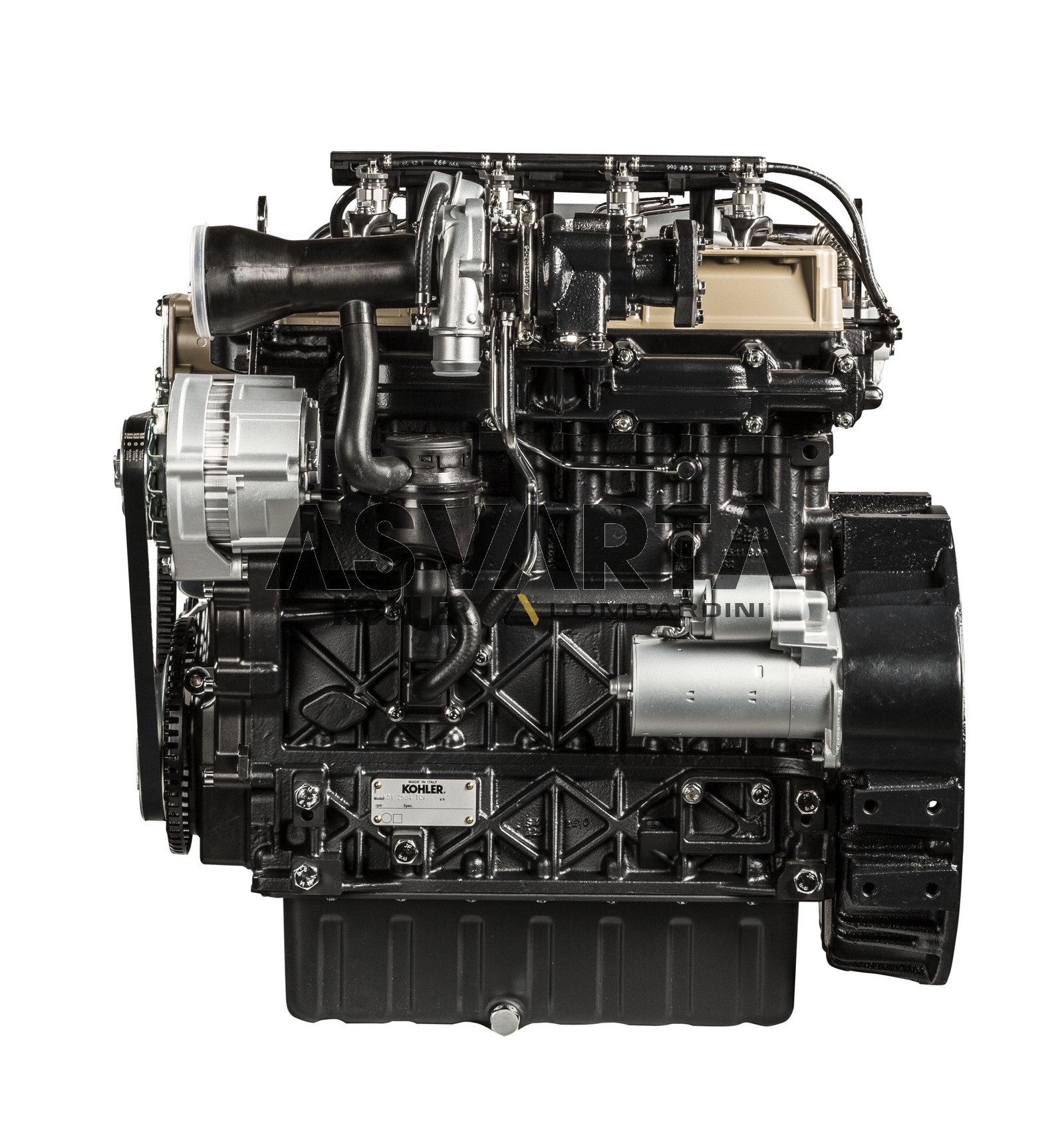

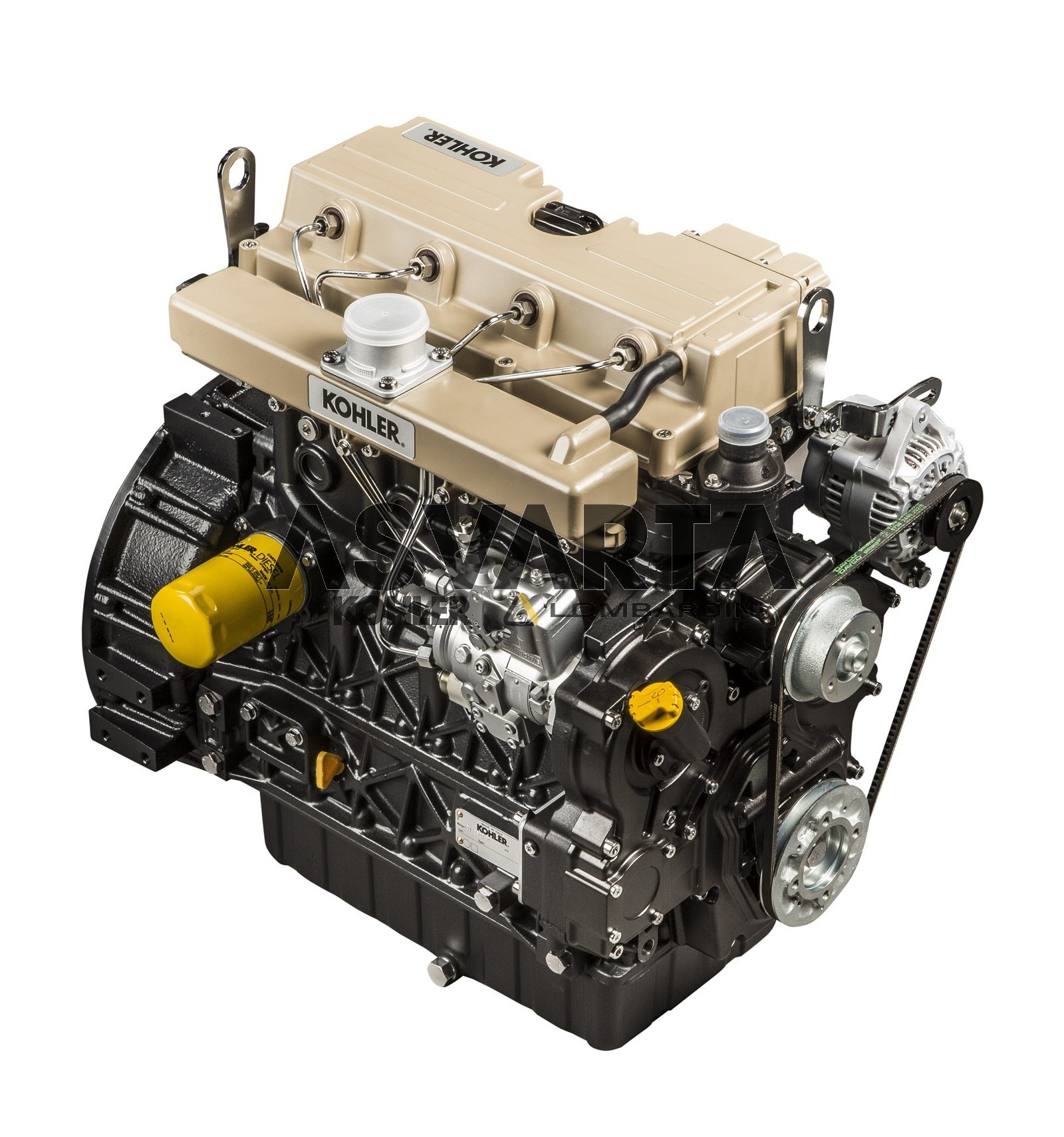

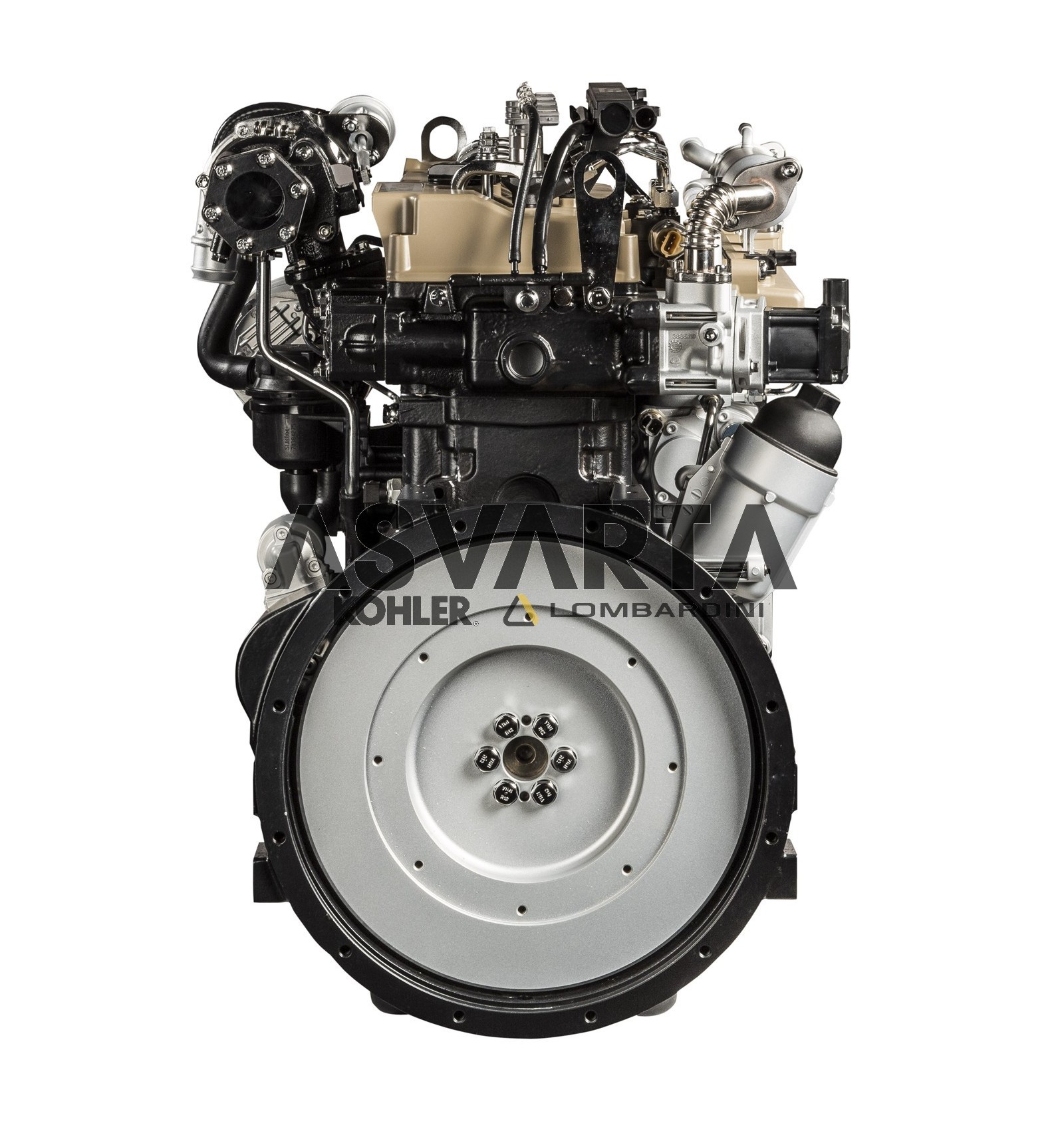

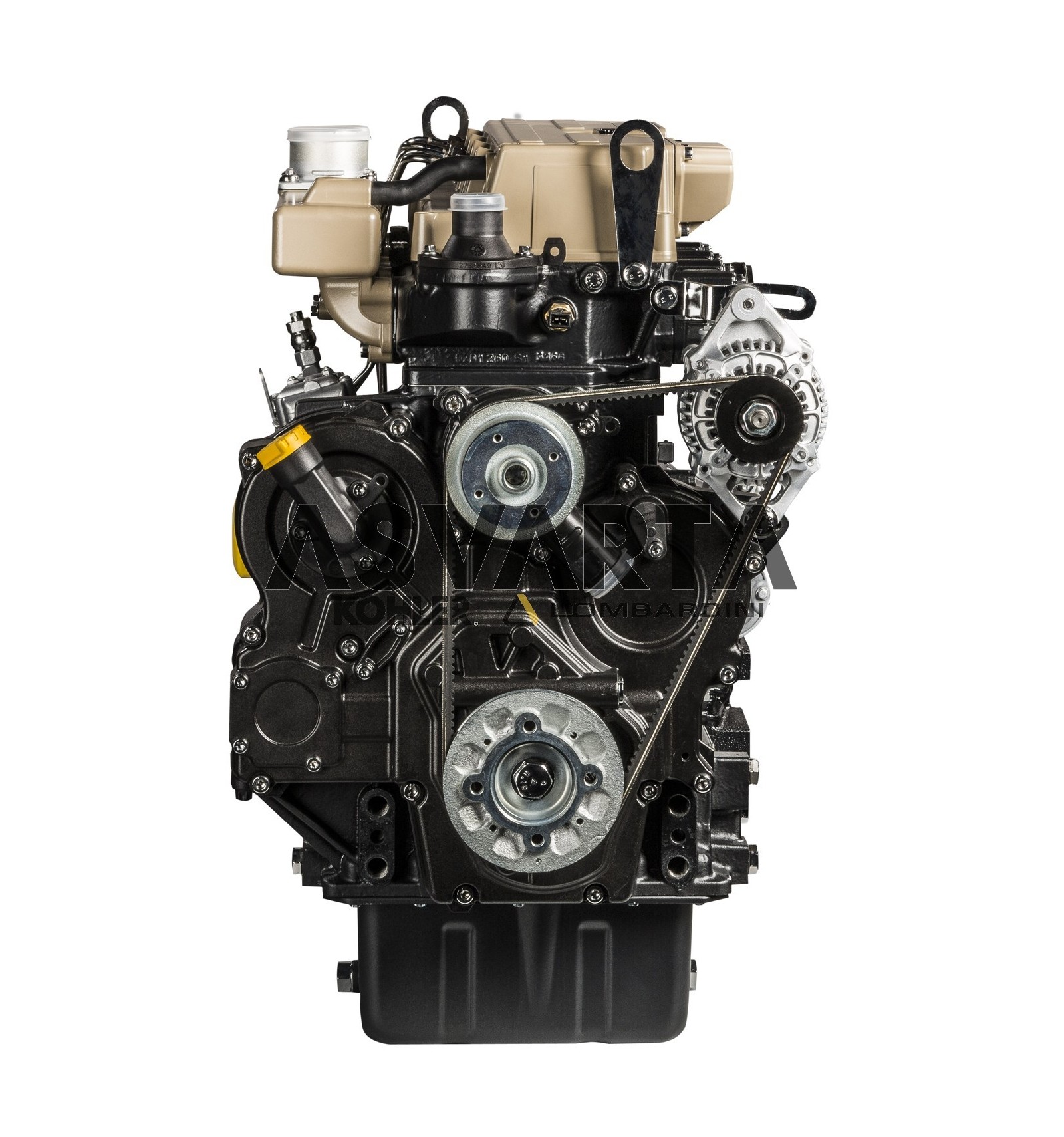

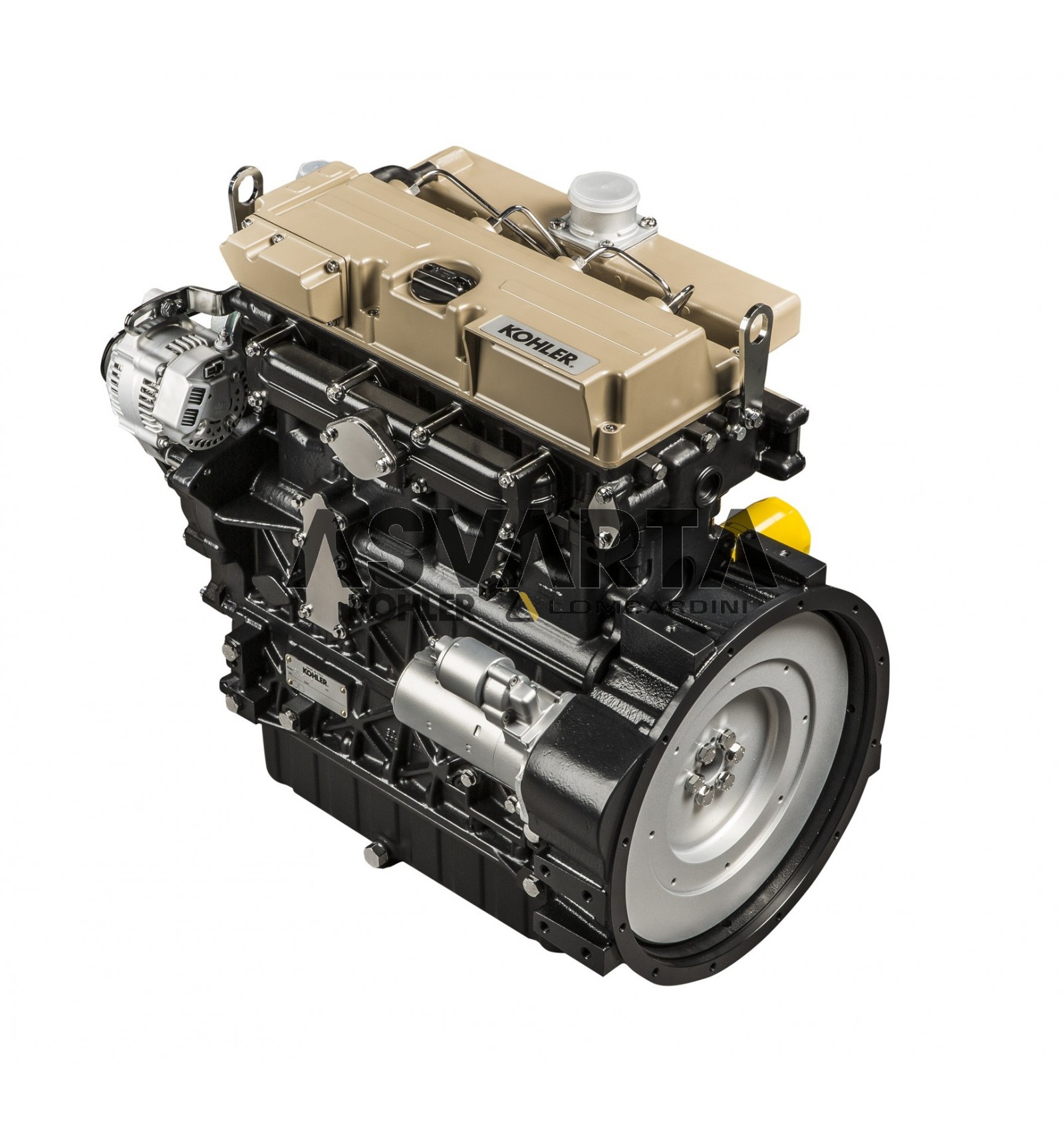

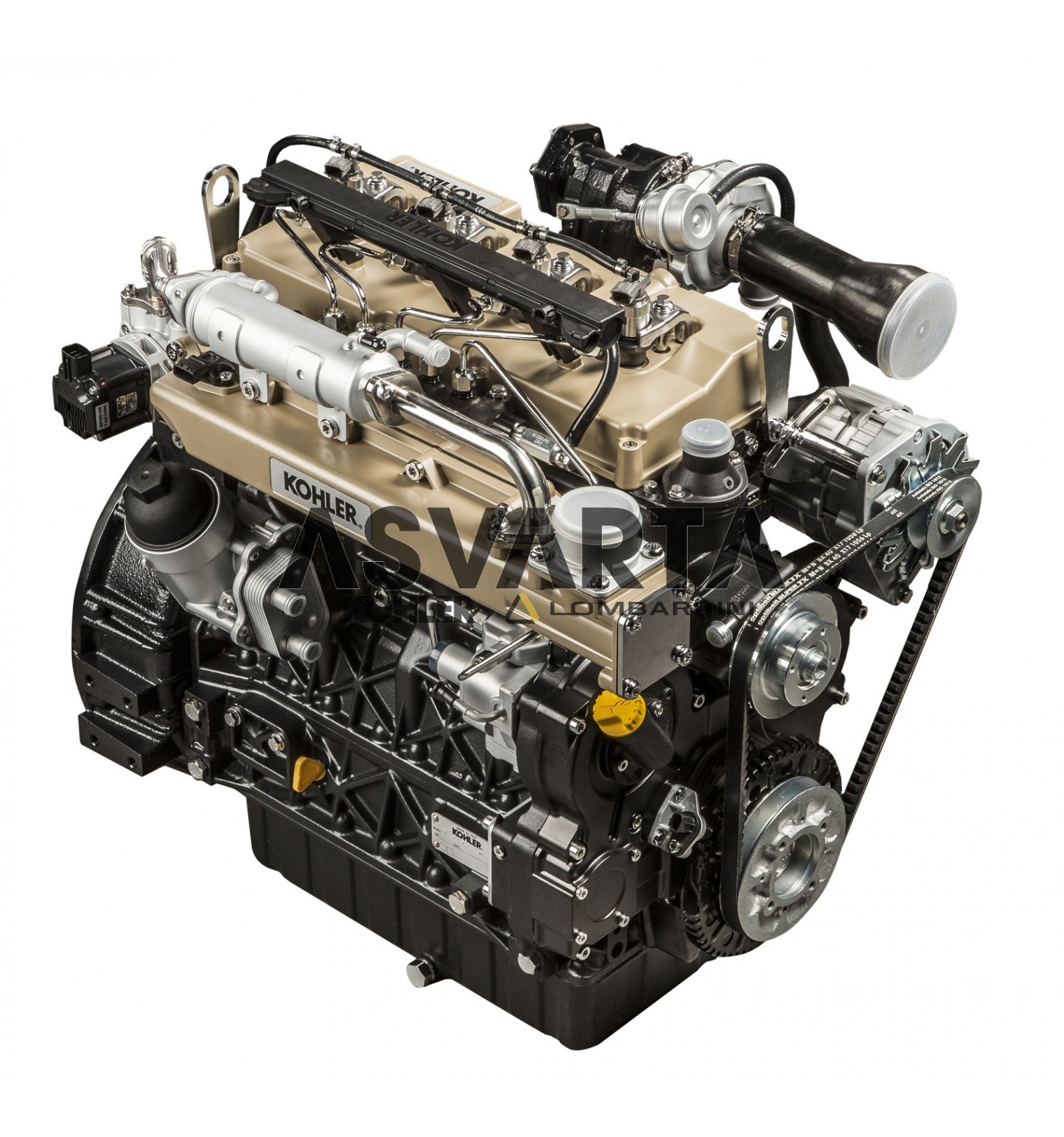

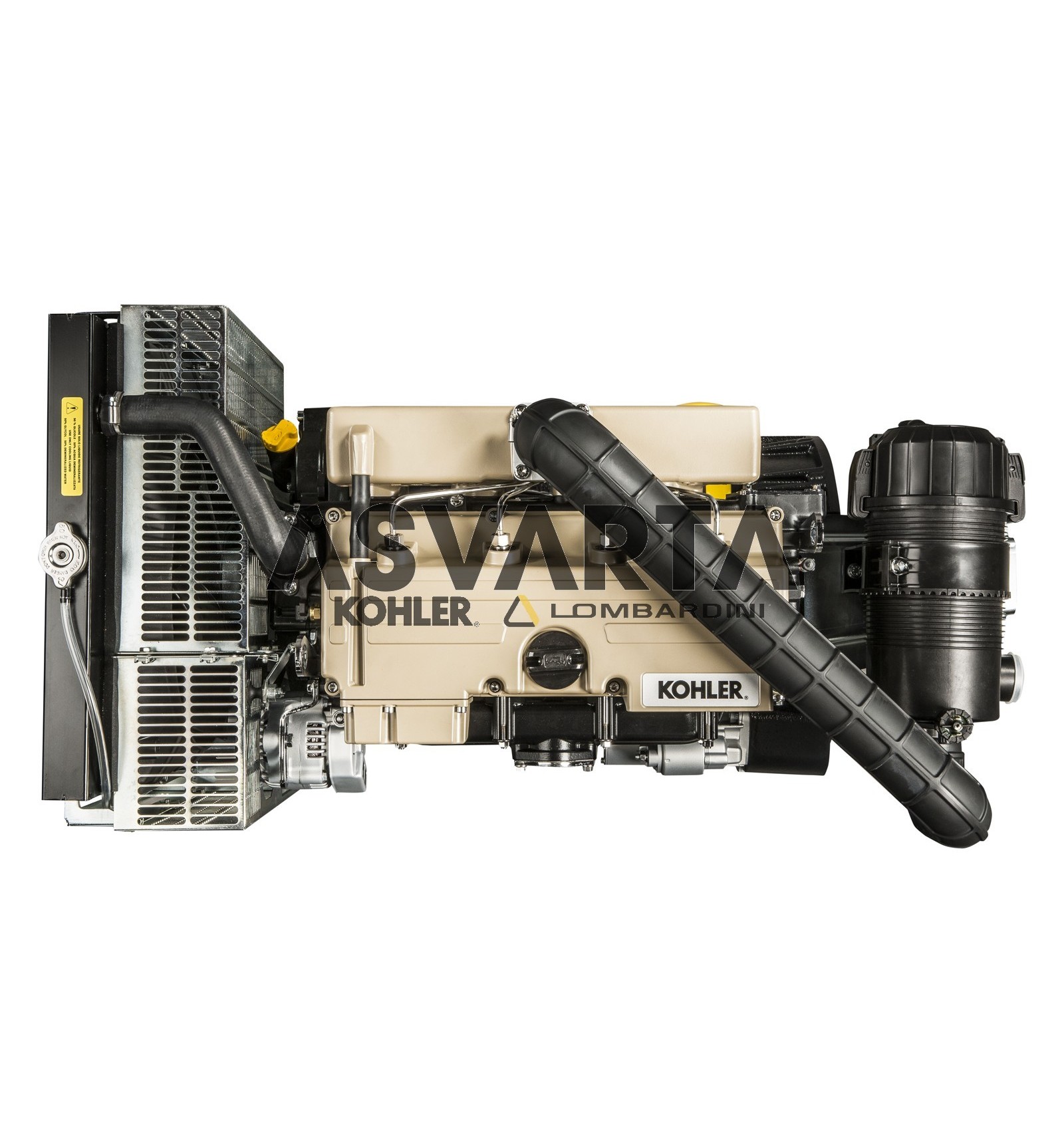

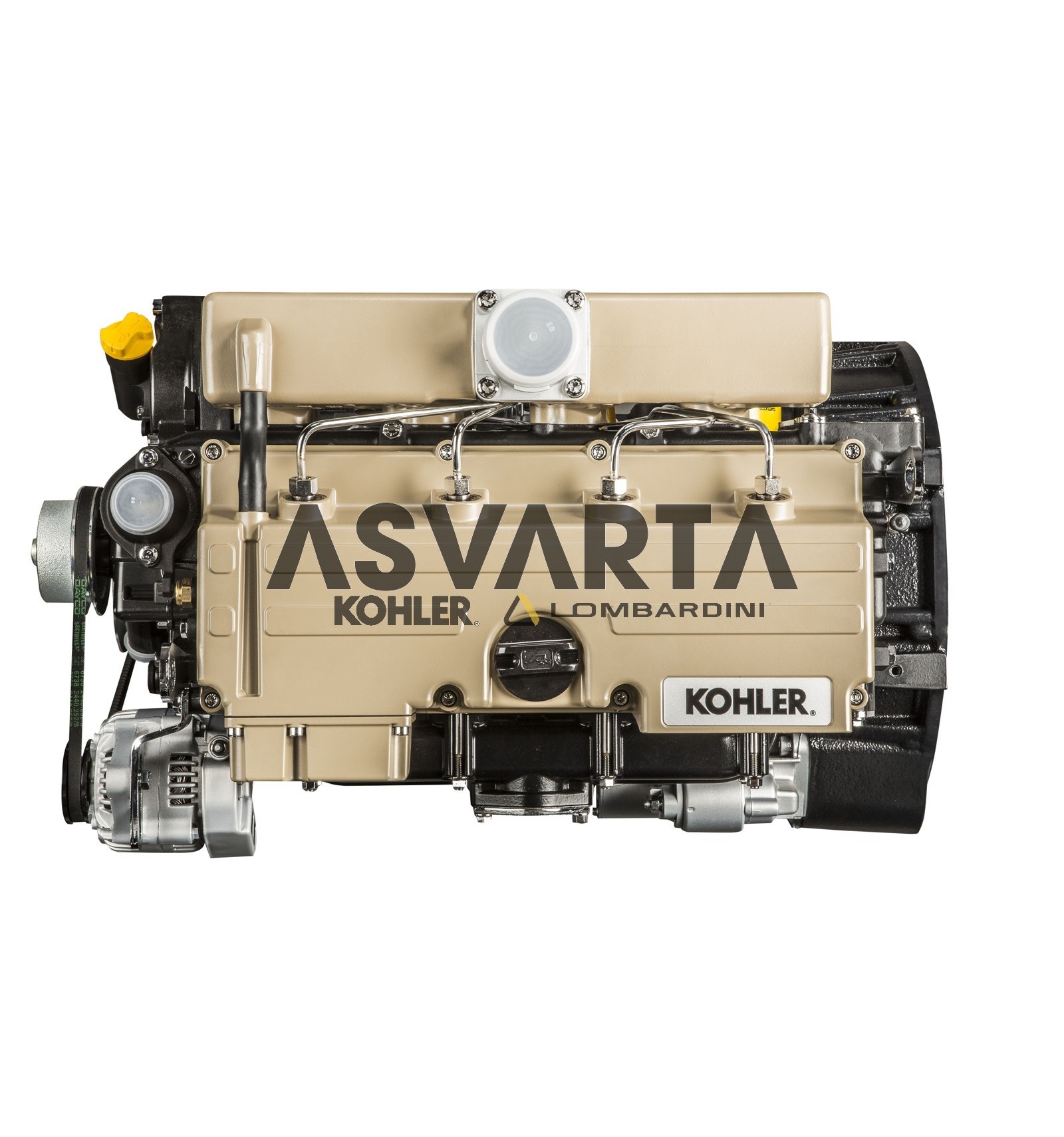

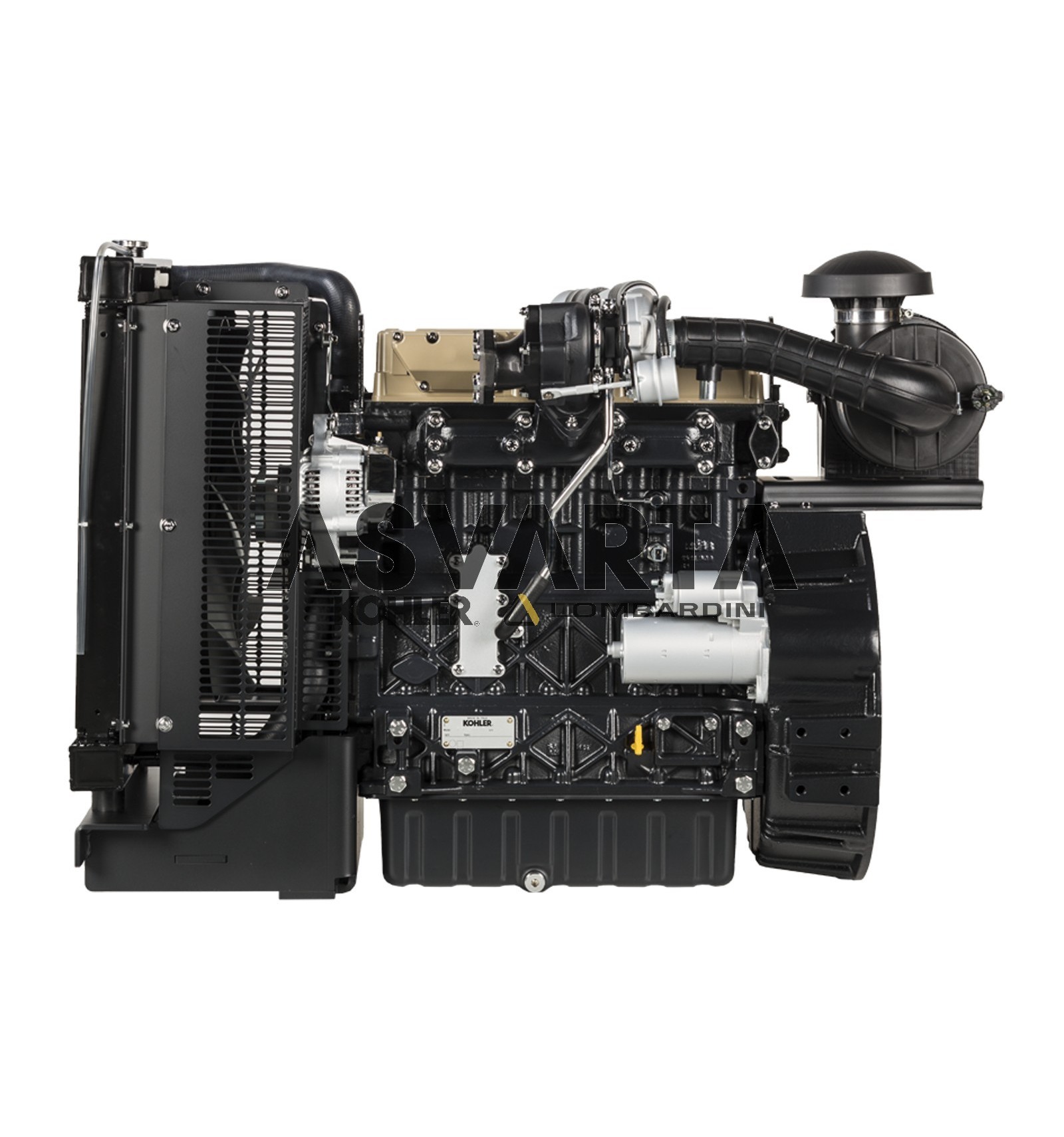

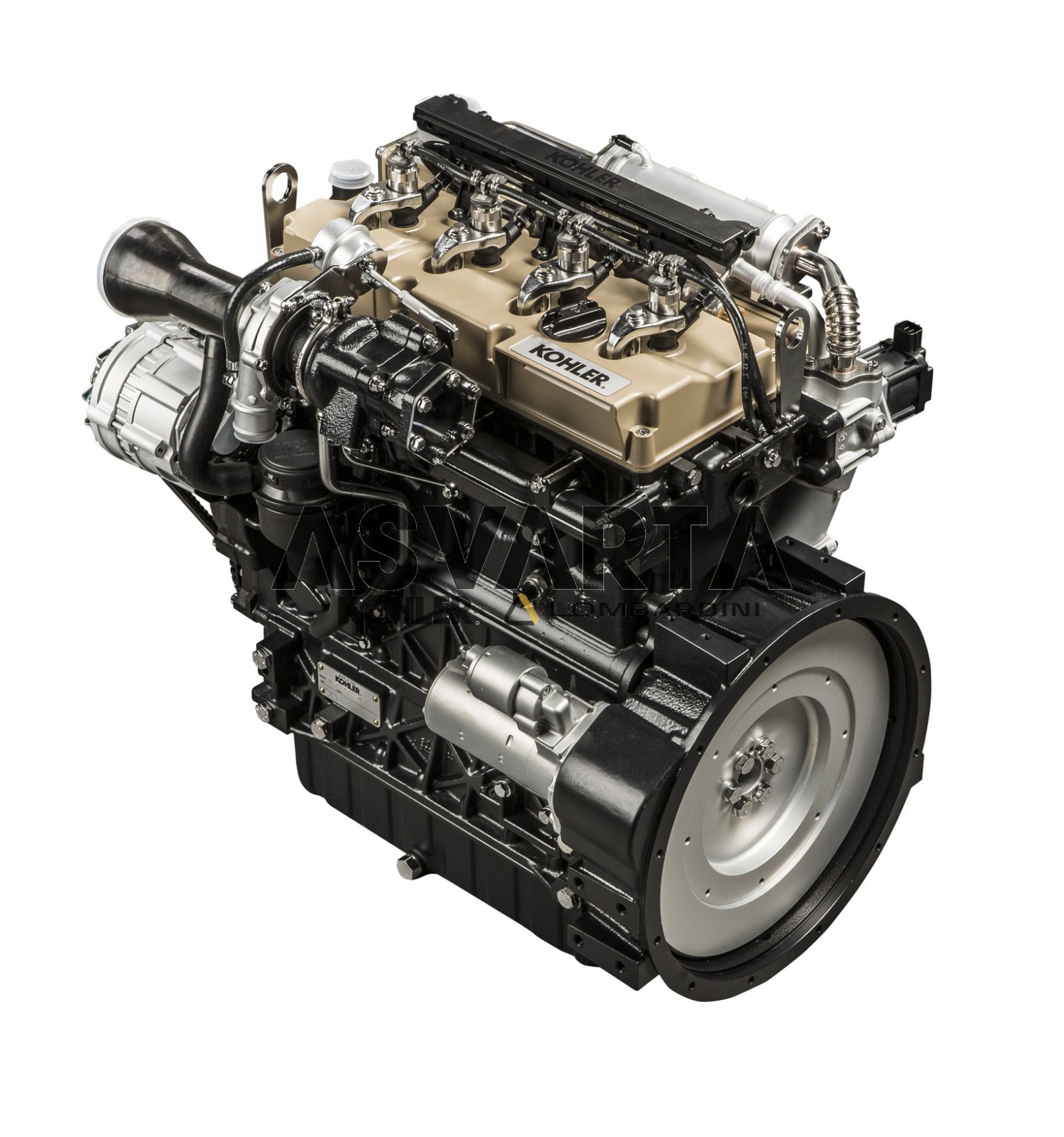

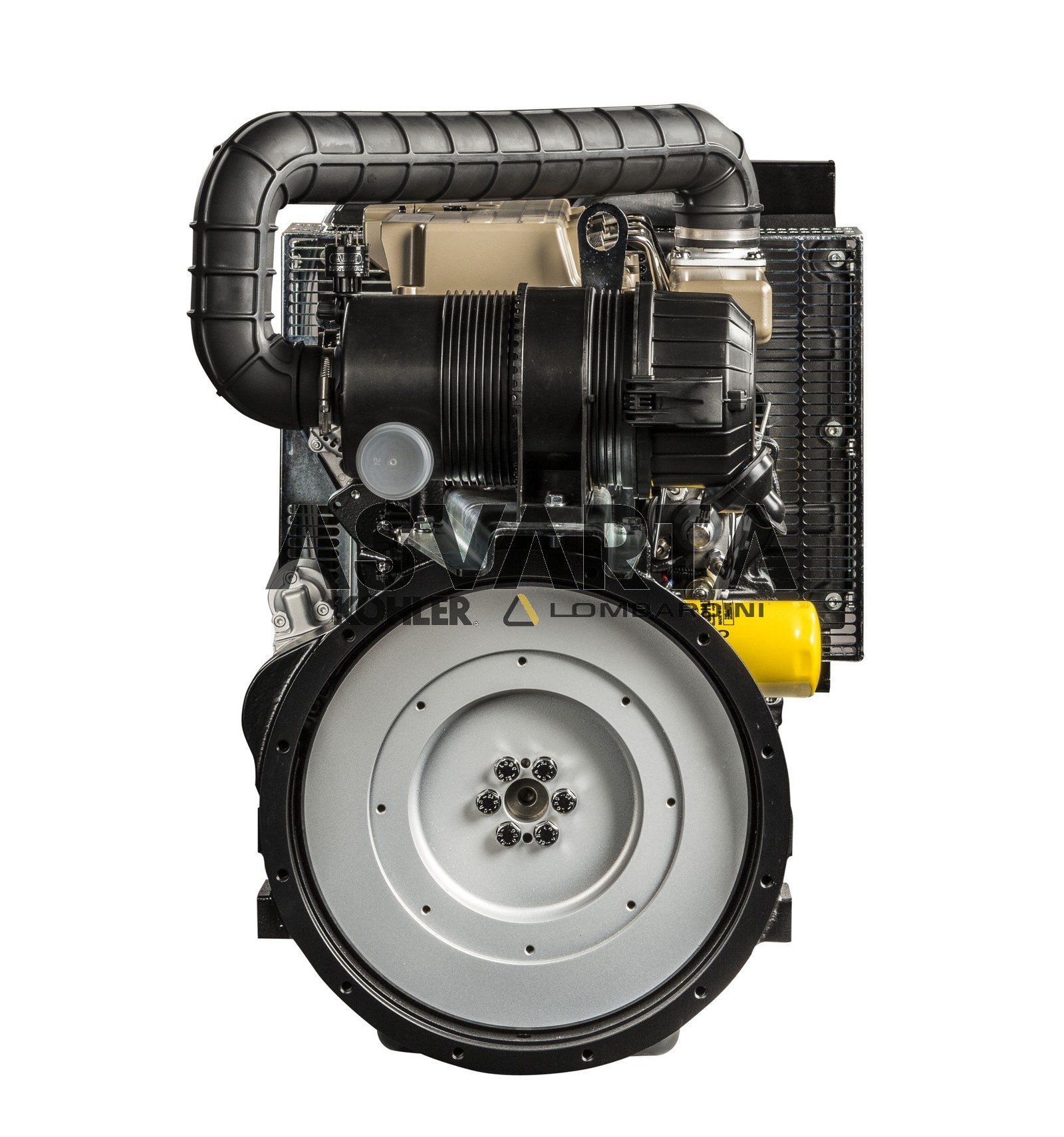

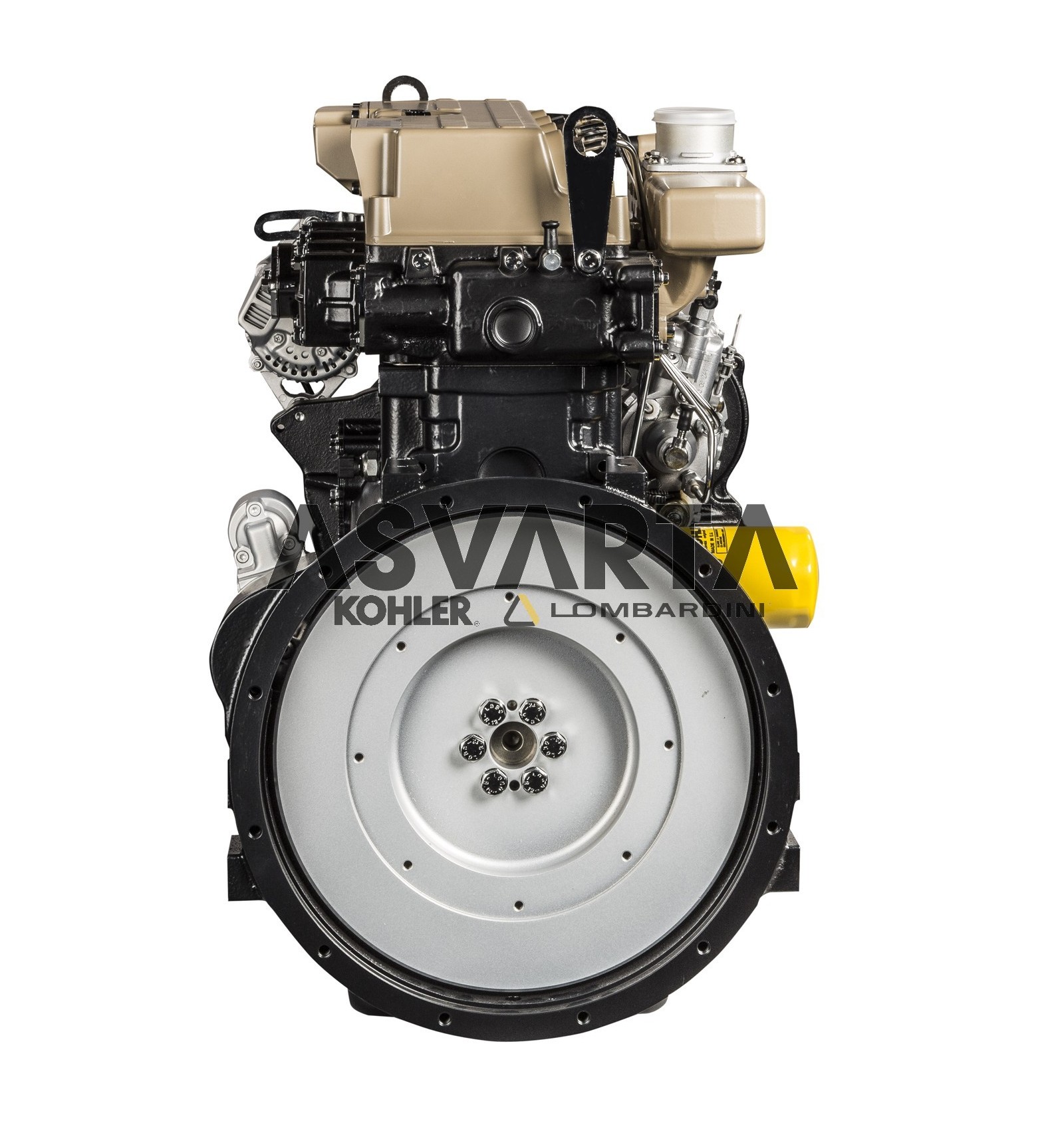

Kohler KDI 2504 TCR Diesel 4-cylinder water-cooled engine as standard version. See agricultural, industrial, generator sets and manufacturer's

Check price and availability at: info@asvarta.com

More details

Look at the information of each model More Details

Caja Transporte Asvarta

Envío internacional gratuito*

Free shipping worldwide.
*See conditions

Distribuidores Oficiales Kohler y Lombardini

Kohler and Lombardini official distributors

SEE MODEL SPECIFICATIONS IN THE "MODELS" TAB

Engine type:

With advanced features such as common rail, 4-valve cylinder head, turbocharger, EGR system with electronic cooling, oil control system and Diesel Oxygen Catalyst (DOC) KOHLER Diesel common rail engines reduce operating costs and maintenance. Discover the durable performance of KOHLER Diesel engines.

Model
Diesel KDI2504TCR
J1940 Horsepower (Kilowatt) 156 (42)
Displacement, cubic inches (cc)113.5 (1861)
Diameter, inches (mm)3.5 (88)
Maximum torque, lb-ft (Newton/meter torque)165.9 (225)
Compression ratio
Dry weight, pounds (kg)512.6 (233)
Oil capacity, quarts USA (L)8.9 (8.5)
Dimensions, L x W x H, inches (cm)23.5 x 20.5 x 28.18

Easy maintenance.

  • Service on one hand
  • 500 hour oil change intervals
  • High-powered performance.

Turbocharger

  • High pressure common rail (2.000 bar)
  • 4 valves per cylinder
  • Up to 300 Nm of torque at 1500 rpm
  • Quiet and undisturbed operation.

Hydraulic valve lifters

  • Controlled combustion with several injections per cycle
  • Reduced spur gear pitch
  • Liquid-cooled

Reliable and long-lasting design.

  • Cast iron housing with seat base to absorb vibration

Common applications:

Orchard/Vineyard Tractor - Fruit/Harvest Collection - 4WD Tractor - Water Pump (Watering) - Wood Chipper - Concrete Mixer - Concrete Sprayer - Excavator - Compaction Roller - Line Stripper - Skid Steer Loader - Telescopic Handler - Backhoe Loader - Wheel Loader - Auto. Water priming pump - Air compressor - Generator - Welder - Engine sweeper - Aerial platform - Rope equipment - High pressure washer - Fire fighting pump - Forklift

Consumer benefits when purchasing this product:

Increase machine productivity - Application flexibility - Long service intervals - Reliability and safety - Compactness - Improved comfort - Fuel savings - Driving fun

Lenght704.3 (mm)
Height719.5 (mm)
Width523.2 (mm)
Height267 kg
RotationCounterclockwise
AspirationTurbocharged
Combustion SystemDirect Injection
Displacement (cc)2482
Cycle4 strokes
Cooling SystemLiquid
Oil Sump Capacity8.5
Cylinders3
FARMINGEngine optimised for conventional tractors, fruit trees and vineyard tractors.
INDUSTRIAL | BUILDINGCement mixer, Dumper, Minidumper, Mini excavator, Motor compressor, Vibrating plate, Roller, Asphalt cutter
FuelDiesel
Power55.4kW (74.0HP)
Tank (L)8.5 l

We detail the use of the engine according to its model, thus giving three global options according to its use for the consumer:

  • FTF: Special version for manufacturer's assembly
  • PowerPack: Industrial and agricultural engines up to 2300 revolutions
  • ElectroPack: Motors for generators up to 1500 revolutions.

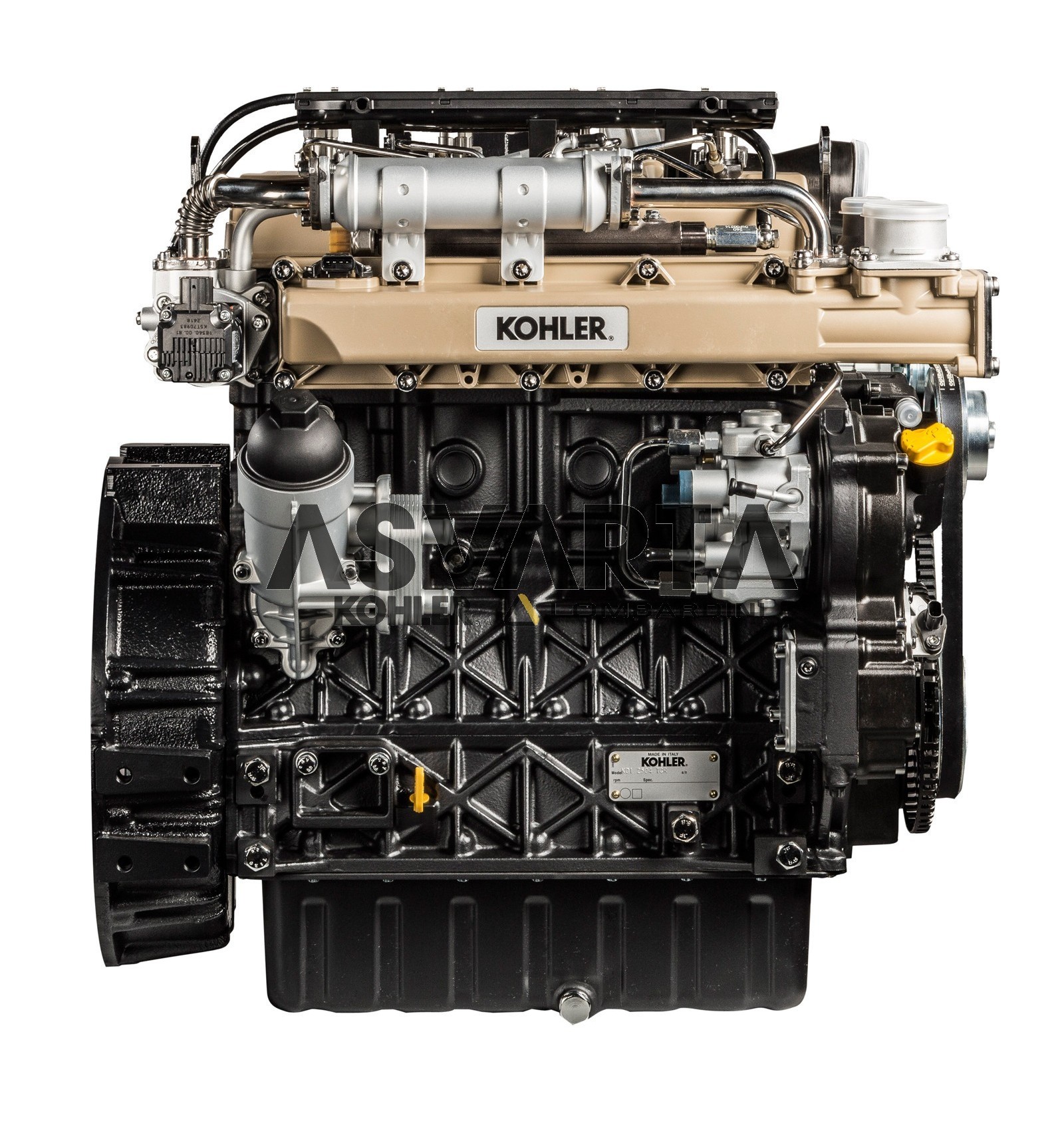

FTF Standard version without radiator, from the fan to the power take-off. With flying crankshaft and SAE4 engine and a 71/2" flying hood

Model FTFSpecifications
KDI-TCR 2504E5/26
  • Stage V
  • Engine with exhaust pipe and particulate filter with radial outlet (DPF)
  • Without radiator

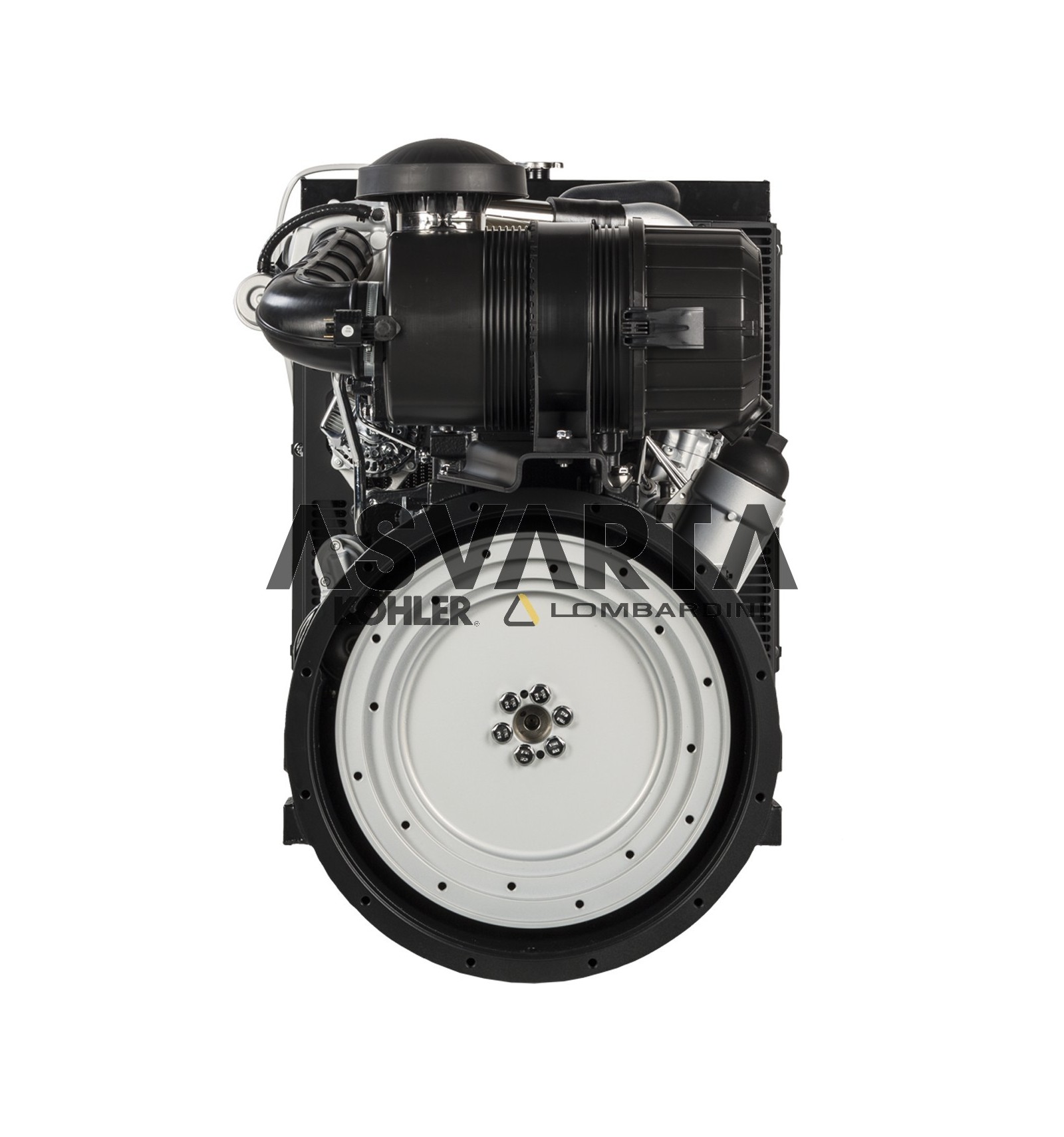

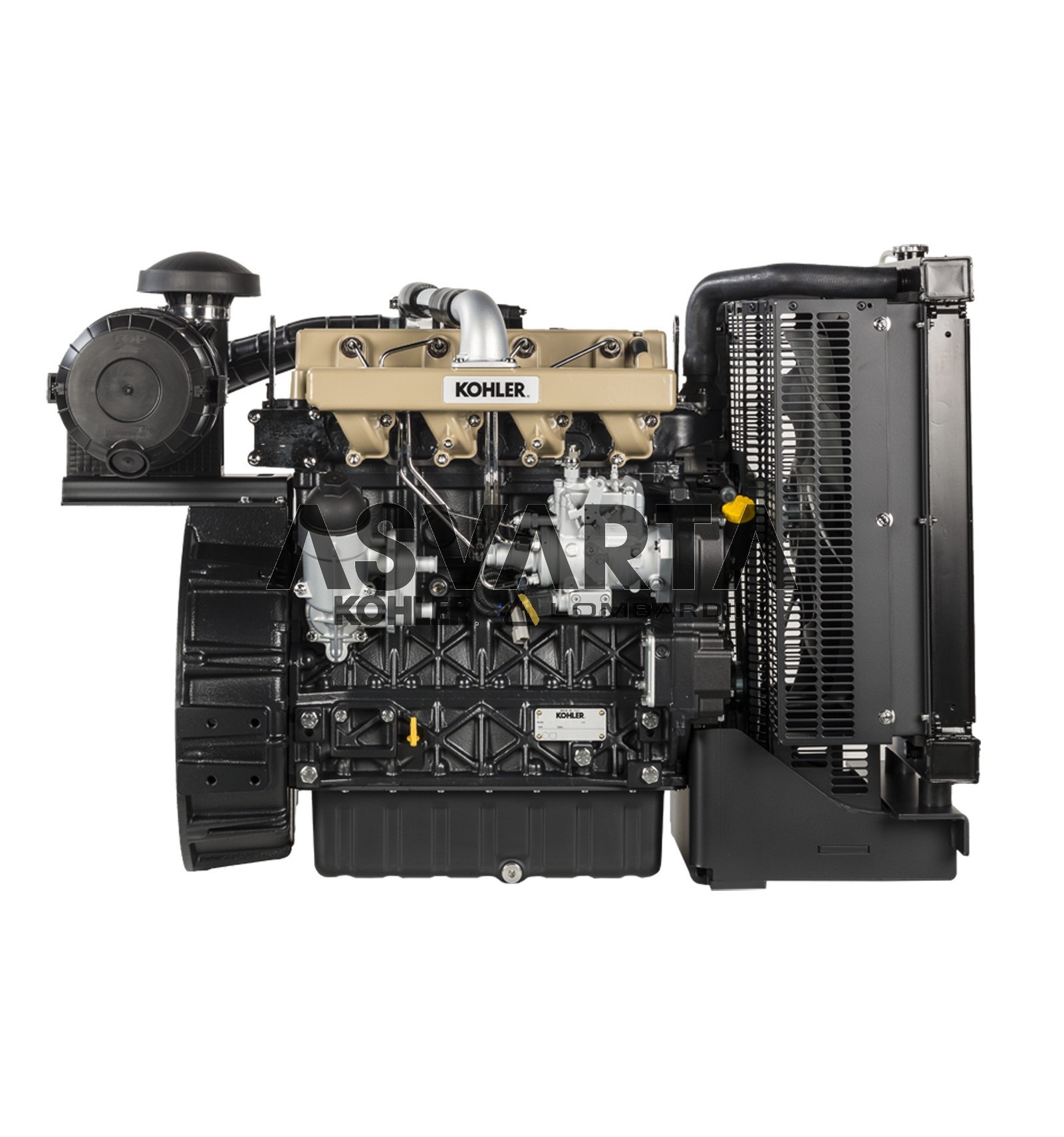

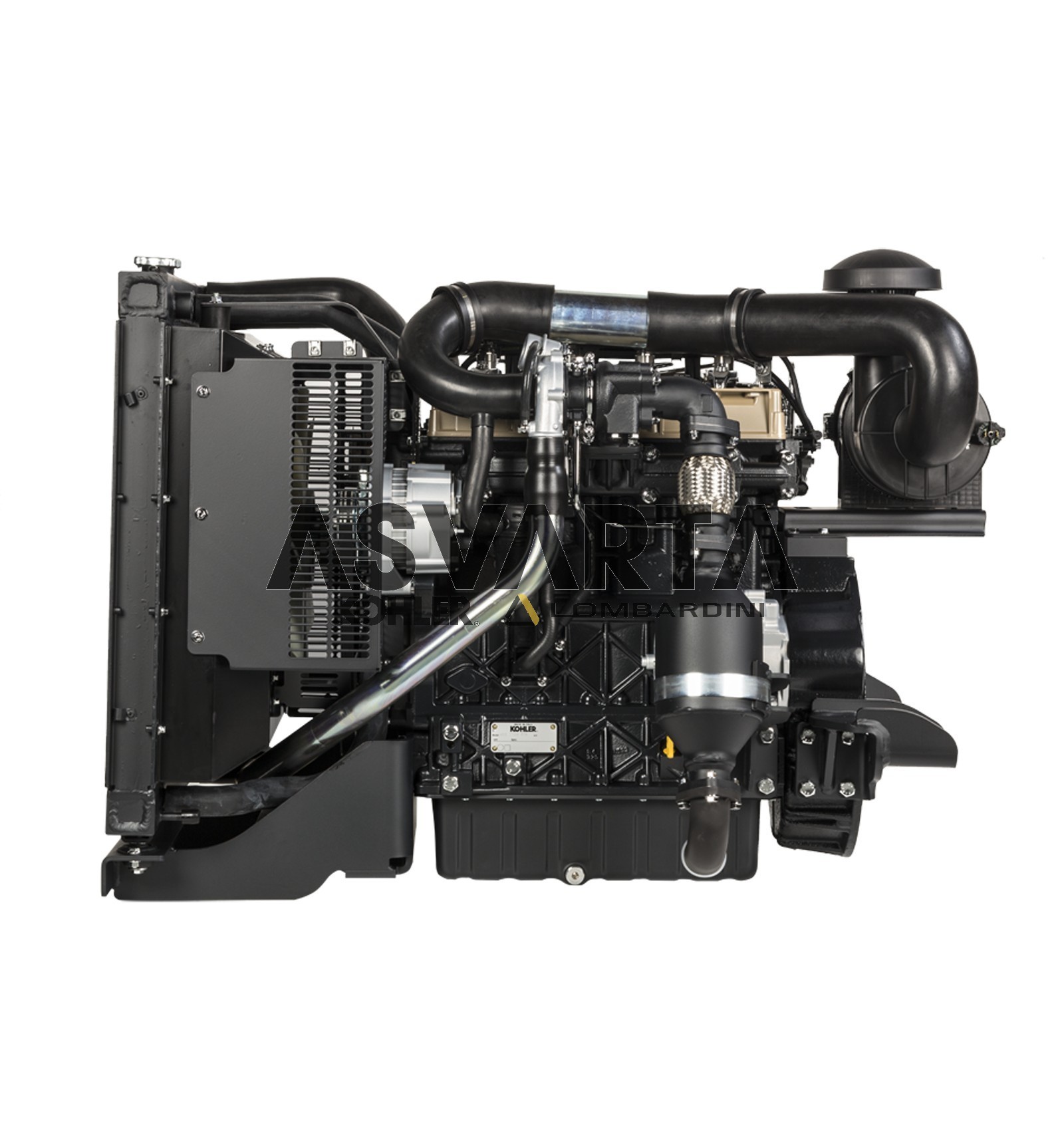

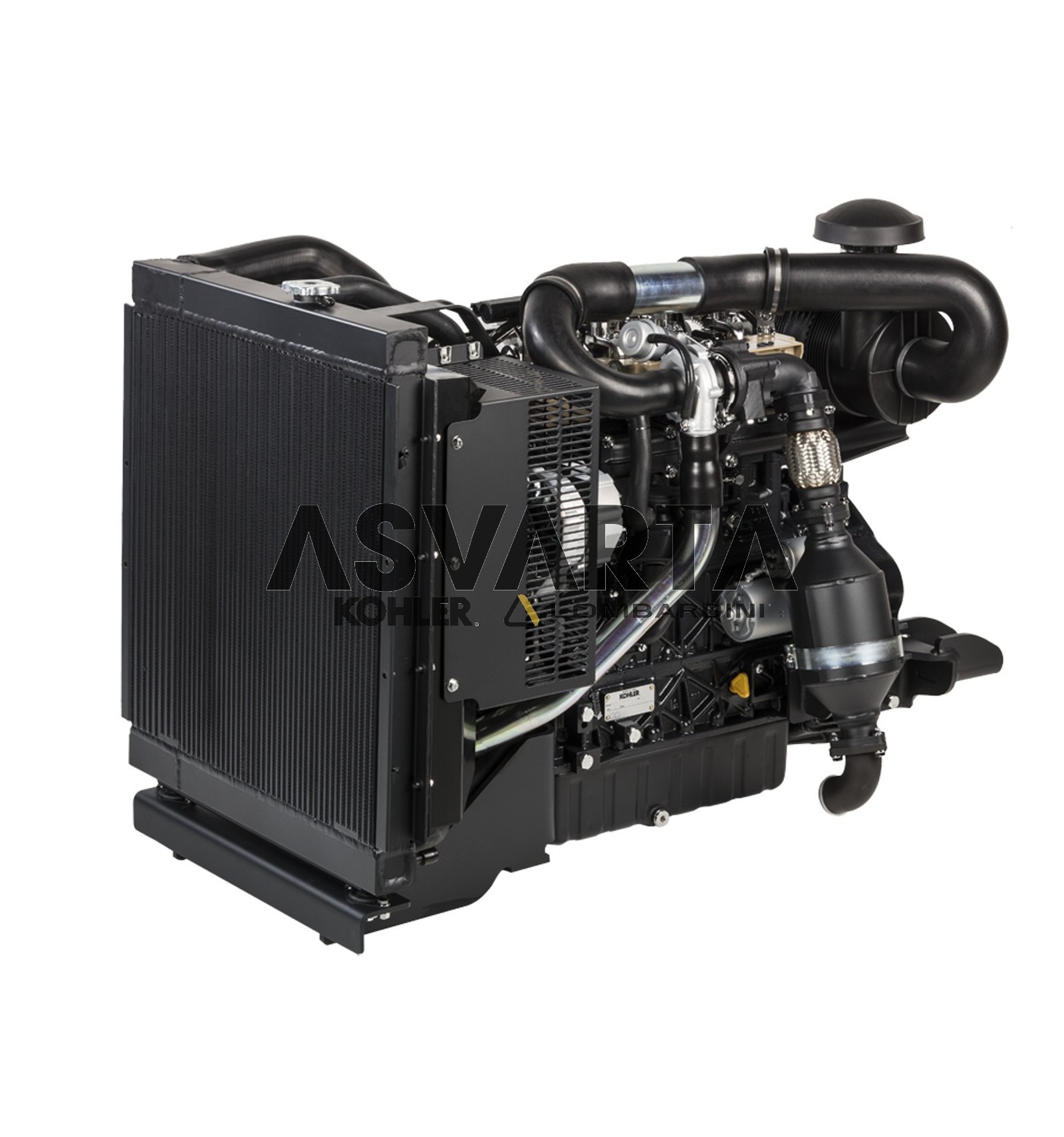

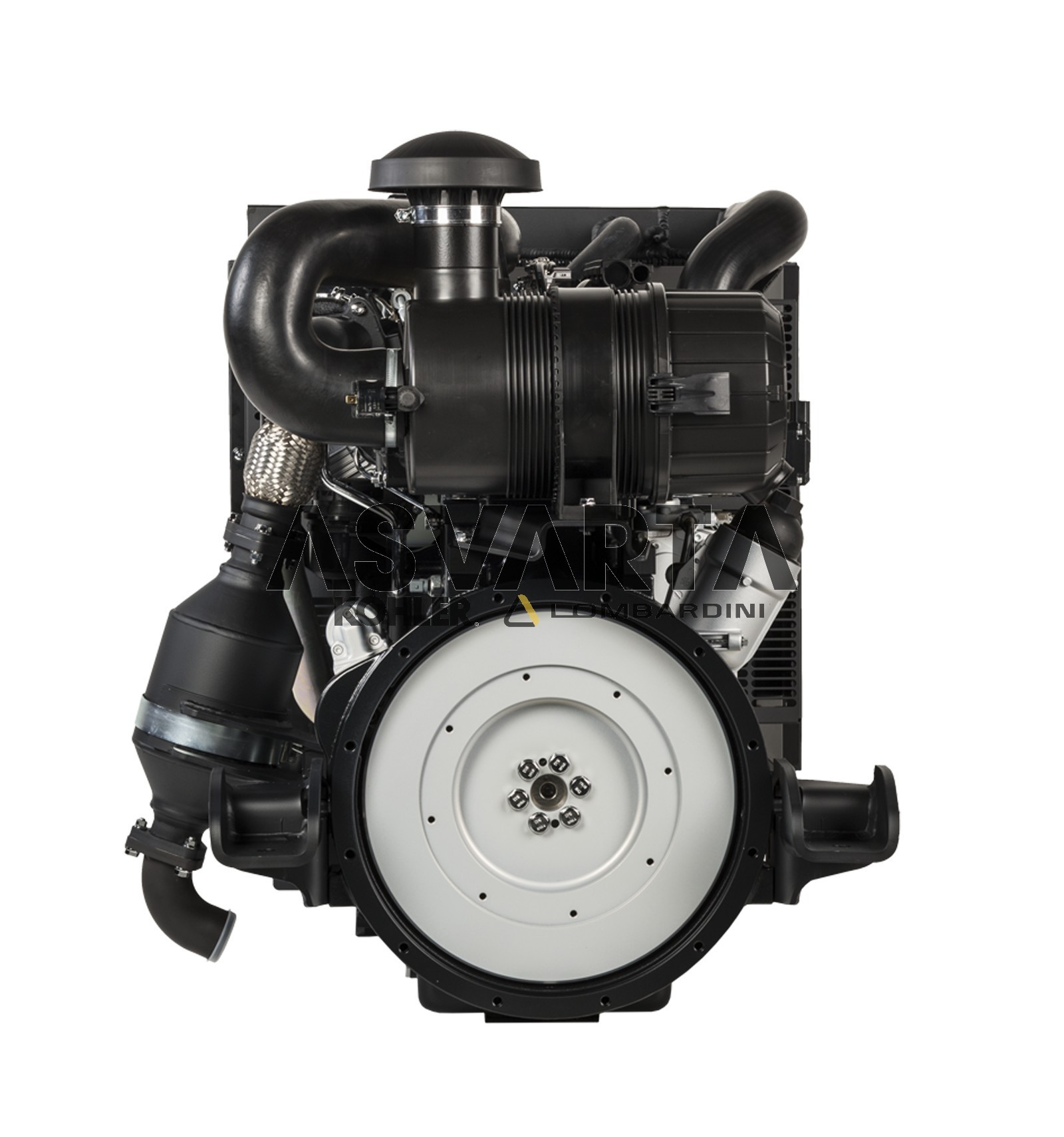

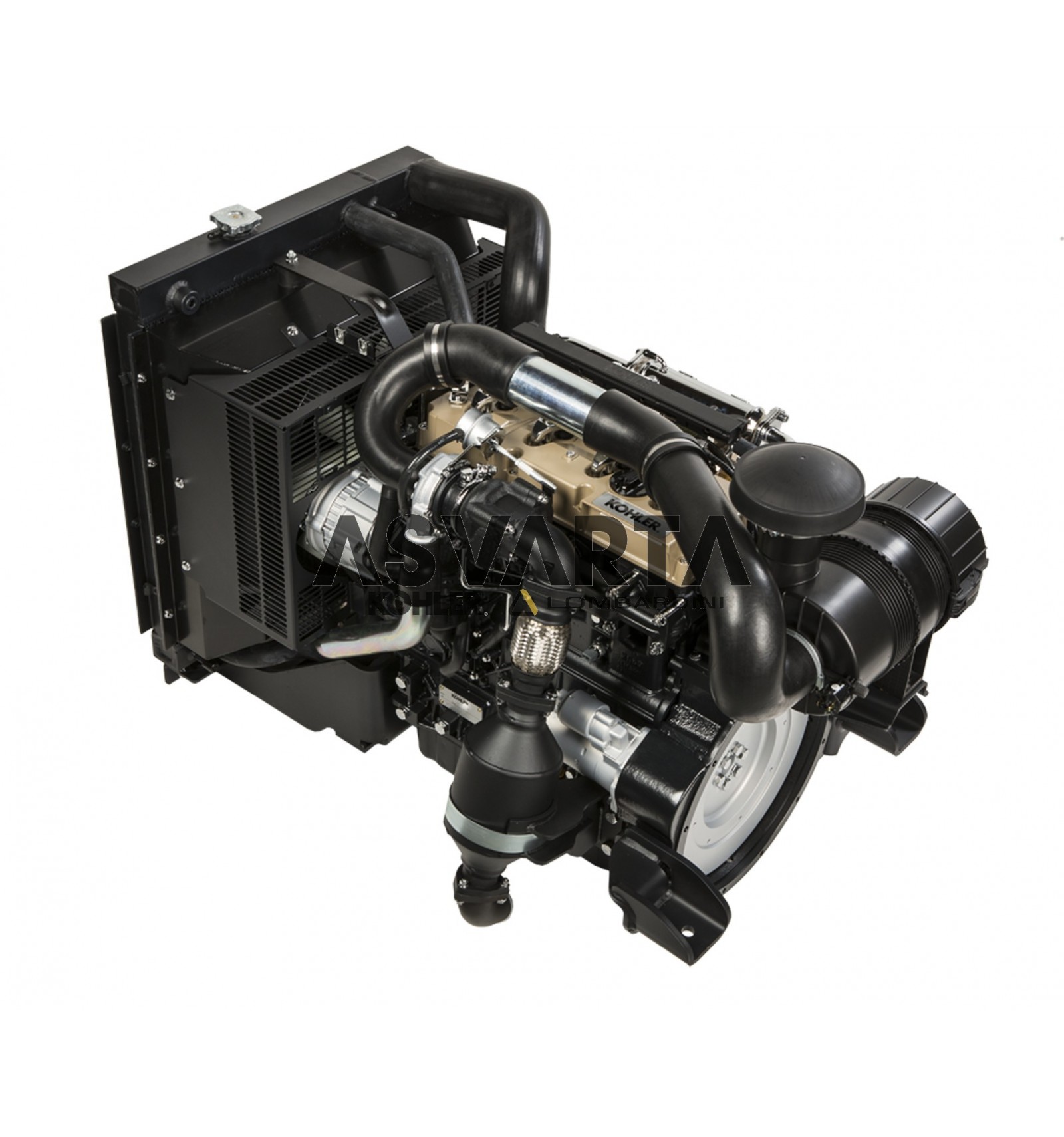

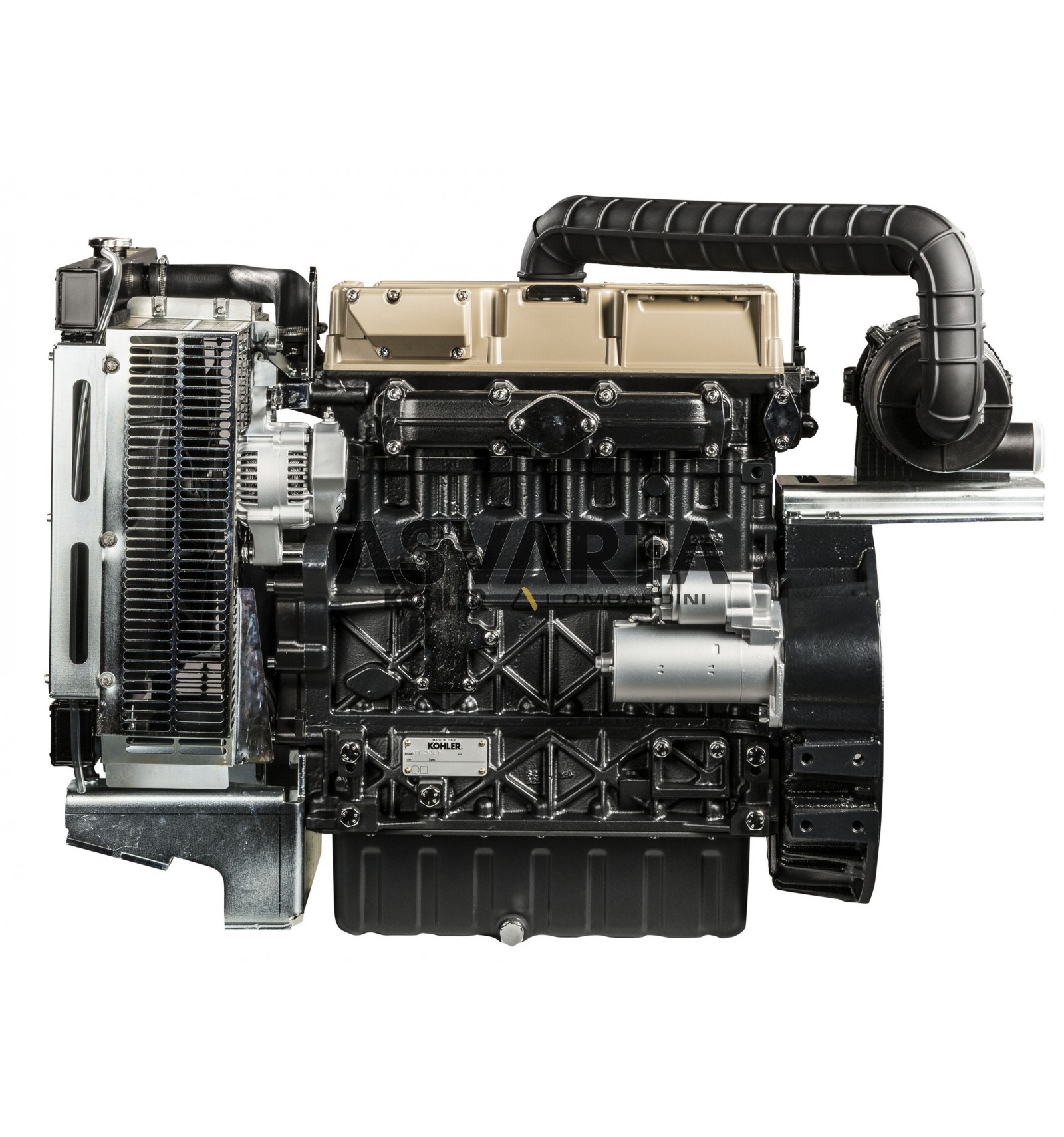

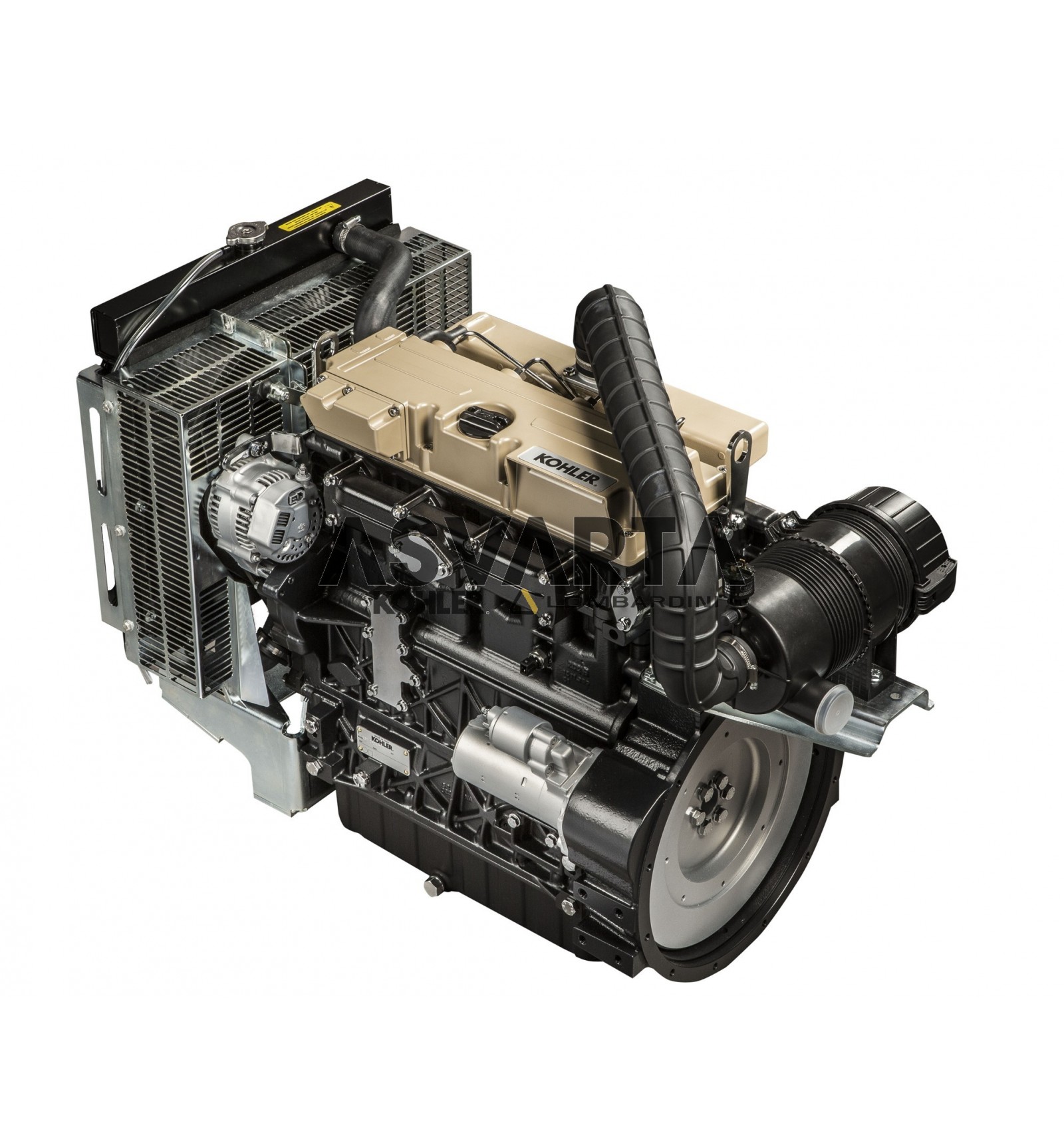

KDI 2504 PowerPack version, industrial motors up to 2300 rpm.

Model PowerPackSpecifications
KDI2504TCR/26 - PP-EMAP
  • Industrial and Agricultural Engine
  • DPF mounted on motor (axial output)
  • T4F

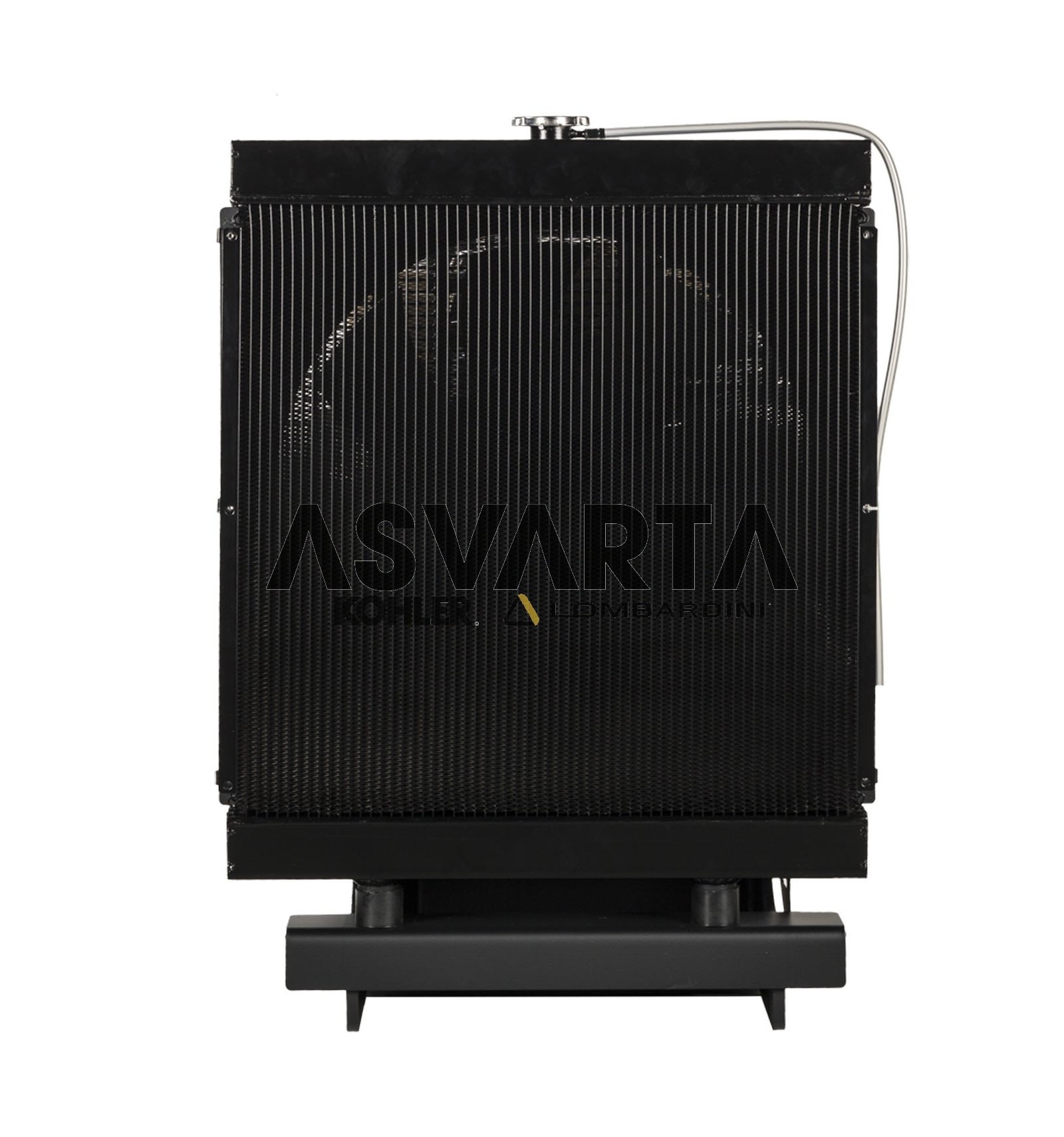

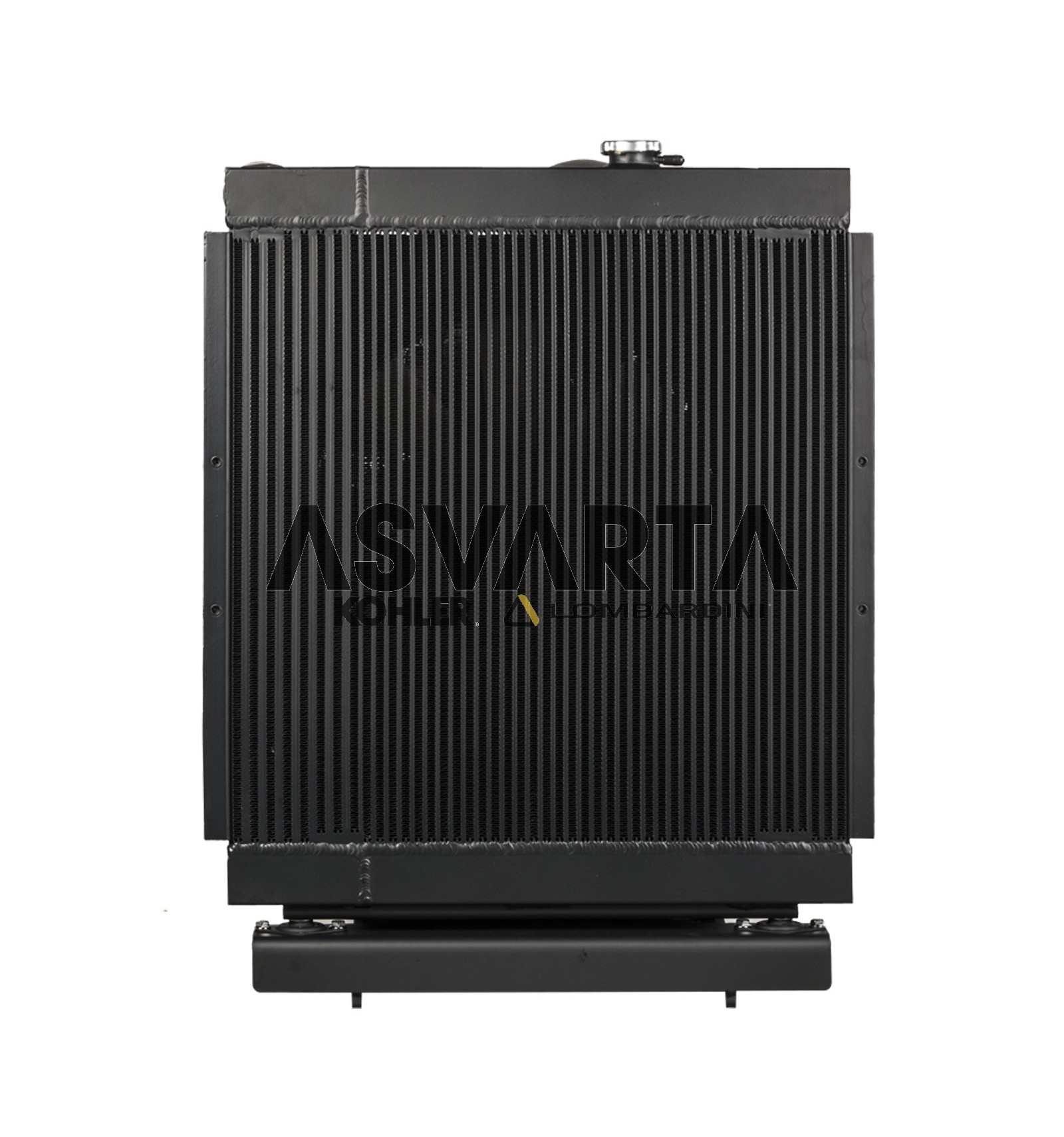

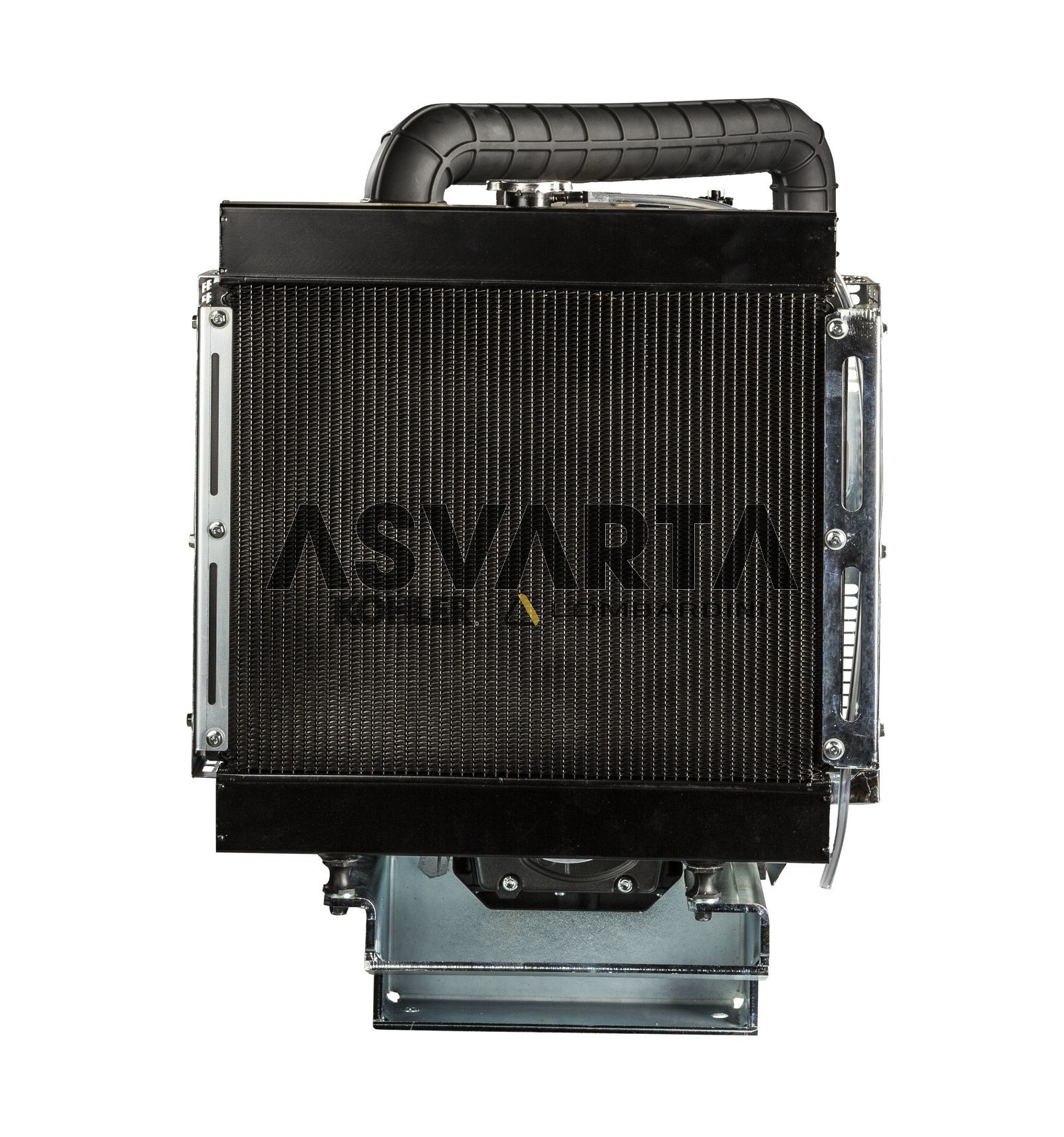

  • Radiator
KDI2504TCR/26 - PP-EMAS-A
  • Industrial and Agricultural Engine
  • DPF mounted on motor (axial output)
  • T4F
  • Radiador
  • Ventilador de Aspiración
KDI-TCR 2504E5/26 - PP-EMR-A
  • Industrial and Agricultural Engine
  • Power-pack
  • DPF Engine Mounted (Radial Outlet)
    Auxiliary PTO
  • Radiator
KDI-TCR 2504E5/26 - PP-LAA-A
  • Industrial and Agricultural Engine
  • Power-pack
    Loose DPF (Axial inlet - Axial outlet)
    Auxiliary PTO
  • Radiator
KDI-TCR 2504E5/26 - PP-EMA-A
  • Industrial and Agricultural Engine
  • Power-pack
  • Engine Mounted DPF (Axial Outlet)
    Auxiliary PTO
  • Stage V
  • Radiator
KDI-TCR 2504E5/26 - PP-EMR
  • Industrial and Agricultural Engine
  • Power-pack
  • DPF Engine Mounted Radial
    Auxiliary PTO
  • Stage V
  • Radiator
KDI-TCR 2504E5/26 - PP-LAA
  • Industrial and Agricultural Engine
  • Power-pack
  • Loose DPF (Axial inlet - Axial outlet)
  • Stage V
  • Radiator
KDI2504M/26 - PP-NS
  • Industrial and Agricultural Engine
  • Power-pack
  • No After Treatment System
    Suction Fan
  • Stationary EU
  • Radiator
KDI2504M/26 - PP-NP
  • Industrial and Agricultural Engine
  • Power-pack
    No After Treatment System
    Pushing Fan
  • Stationary EU
  • Radiator

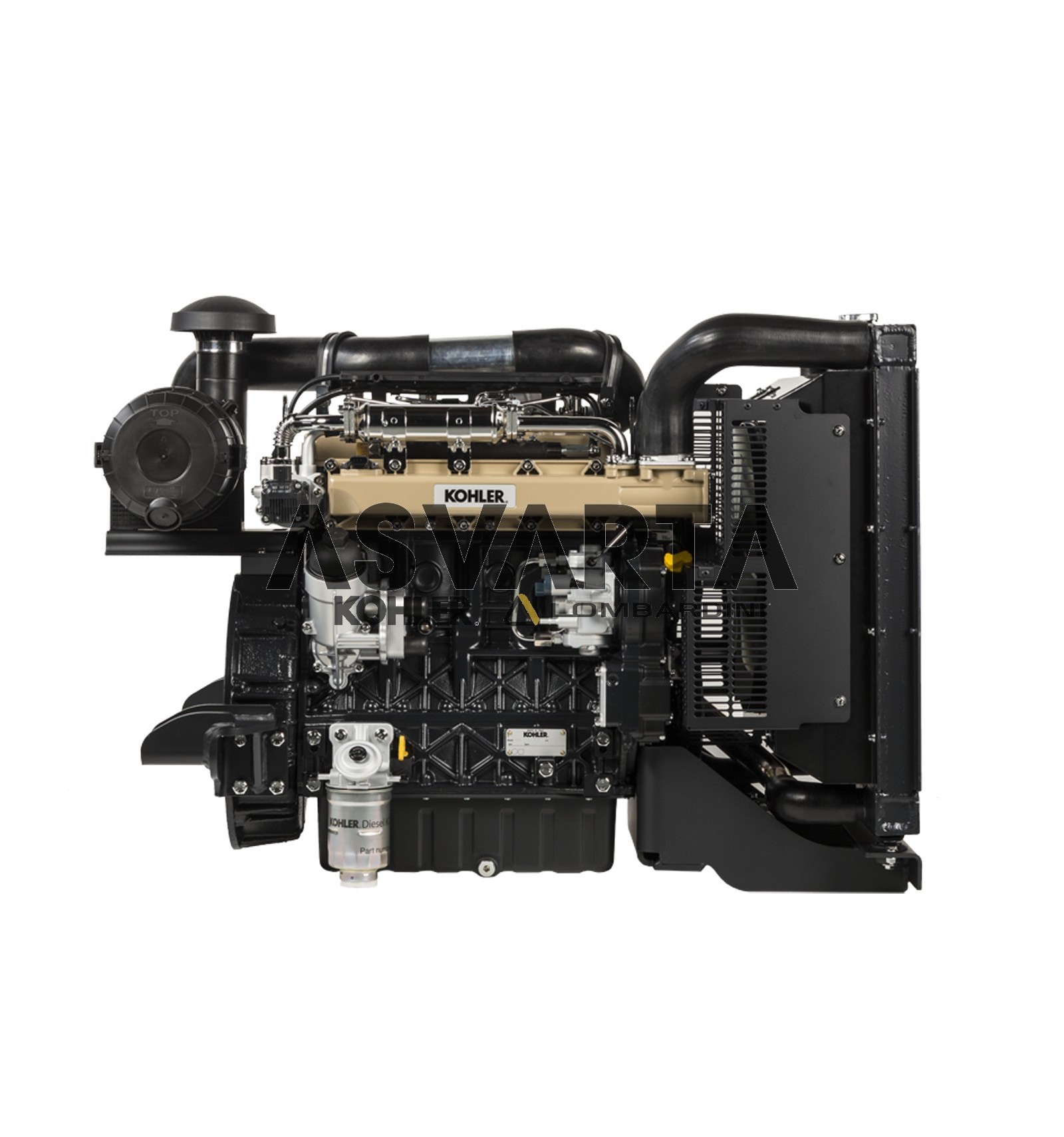

KDI 1903 Electropack version, motors for generators up to 1500 rpm

Model ElectroPackSpecifications
KDI-TCR 2504E5/15 - EP-LAA
  • Engine for Gensets
  • Stage V
  • Electro-pack
    Loose DPF (Axial inlet - Axial outlet)
  • Radiator
KDI2504M/15 - EP-NP
  • Engine for Gensets
  • No After Treatment System
  • Pushing Fan
  • Radiator
