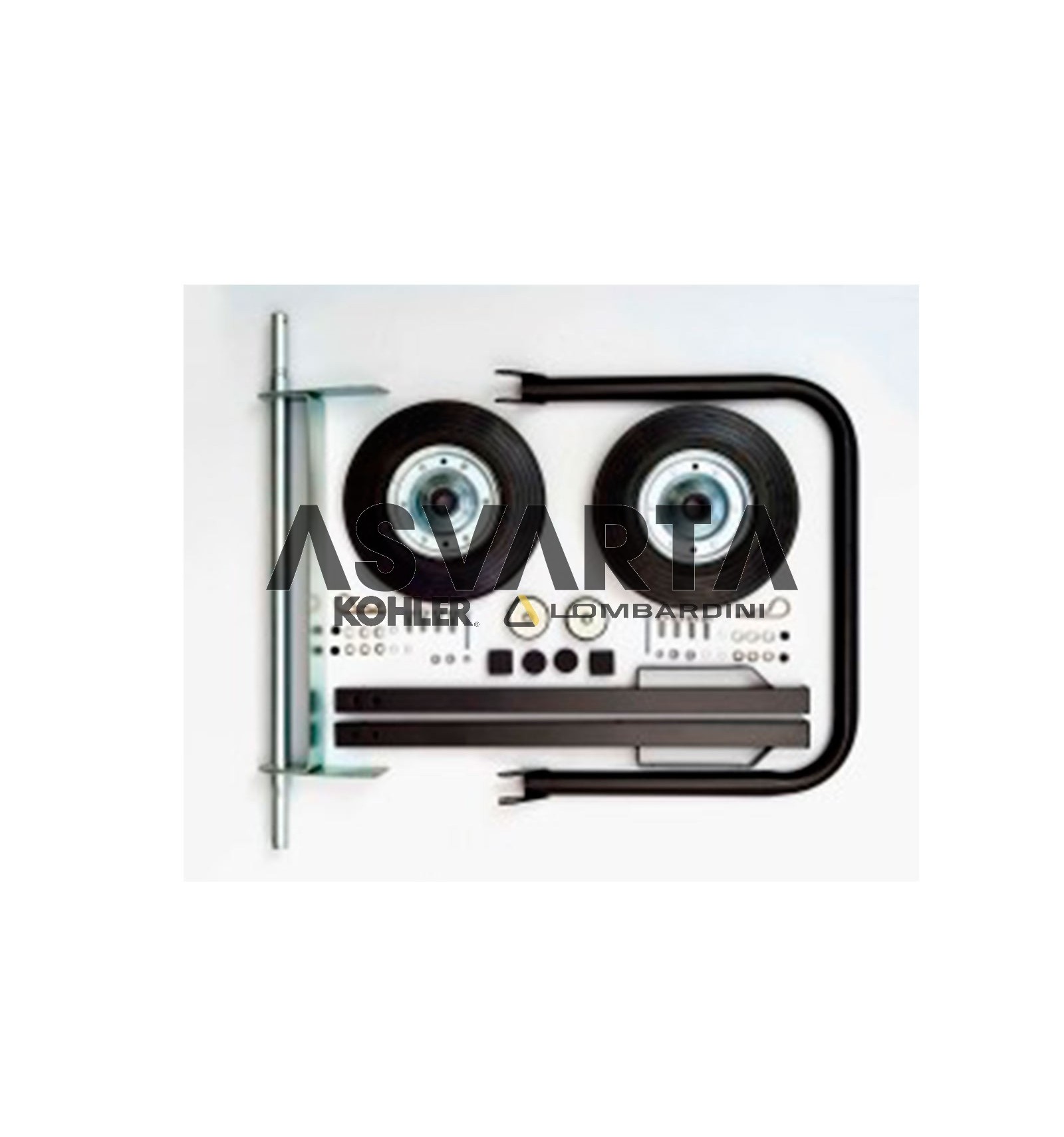

Kit Wheels for Diesel Silence Models of Kohler SDMO Generating Sets

SHIPPING IN SPAIN AND PORTUGAL

IBERIAN PENINSULA (SPAIN AND PORTUGAL)

Shipping cost: 4,50 €

FREE shipping on purchases over: 35 €

Ceuta and Melilla

Shipping cost: 7,50 €

FREE shipping on purchases over: 50 €

Canary Islands

Shipping rates to the Canary Islands depend on the weight of the package:

Shipping to European Union

*Zone 1: Germany, Belgium, Denmark, Slovakia, France, Ireland, Italy, Luxembourg, Netherlands, Poland, Sweden

**Zone 2: Austria, Croatia, Estonia, Finland, Latvia, Lithuania, Czech Republic

**Zone 3: Bulgaria, Cyprus, Slovenia, Hungary, Malta, Romania

Shipments to Europe to non-European Union Countries (*1)

Shipping to África (*2)

Shipping to Asia y Oceanía (*3)

Shipping to North América (*4)

Shipping to Central, South America and Islands (*5)

Shipping to Nordic Islands (*6)

(*1) No EU: Norway, United Kingdom, Switzerland, Albania, Belarus, Bosnia and Herzegovina, Macedonia, Moldova, Montenegro, Serbia, Ukraine, Turkey, Gibraltar, Vatican City, Liechtenstein, Monaco, San Marino, Guernsey, Jersey,

(*2) Africa: Morocco, Equatorial Guinea, Algeria, Egypt, South Africa, Chad, Gambia, Central African Republic, Tunisia, Yemen, Sudan, Angola, Benin, Botswana, British Indian Ocean Territory, Burkina Faso, Burundi, Cape Verde, Cameroon, Democratic Republic of Congo, Republic of Congo, Ivory Coast, Djibouti, Eritrea, Ethiopia, Gabon, Ghana, Guinea-Bissau, Kenya, Lesotho, Liberia, Madagascar, Malawi, Mali, Mauritius, Mauritania, Mozambique, Namibia, Niger, Nigeria, Reunion Island, Rwanda, Sao Tome and Principe, Senegal, Seychelles, Sierra Leone, Swaziland, Tanzania, Togo, Uganda, Zambia, Zimbabwe, Comoros, Mayotte, Somalia, Libya

(*3) Asia + Oceanía: Israel, Bangladesh, Bhutan, Burma, Brunei, Nepal, Sri Lanka, Armenia, Azerbaijan, Georgia, Kazakhstan, Kyrgyzstan, Turkmenistan, Uzbekistan, Singapore, Thailand, Taiwan, Mongolia, Hong Kong, Philippines, Indonesia, Malaysia, Japan, South Korea, India, Saudi Arabia, Bahrain, United Arab Emirates, Jordan, Kuwait, Lebanon, Oman, Pakistan, Qatar, China, Laos, Macau, East Timor, Vietnam, Afghanistan, North Korea, Palestinian Territories, Iraq, Tajikistan, Cambodia, Iran, Russia, Australia, Norfolk Island, New Zealand, Cook Islands, Fiji, Guam, Northern Mariana Islands, Kiribati, Marshall Islands, Micronesia, New Caledonia, Palau, Papua New Guinea, French Polynesia, Solomon Islands, Samoa, American Samoa, Tuvalu, Vanuatu, Wallis and Futuna, Maldives, Tonga, Nauru, Niue, French Southern Territories.

(*4) North America: USA, Mexico, Canada, Saint Pierre and Miquelon

(*5) Central + South America + Islands: Puerto Rico, Belize, Costa Rica, El Salvador, Guatemala, Haiti, Honduras, Nicaragua, Dominican Republic, Chile, Argentina, Brazil, Bolivia, Panama, Paraguay, Peru, Uruguay, Venezuela, Colombia, Ecuador, Anguilla, Antigua and Barbuda, Aruba, Bahamas, Barbados, Bermuda, Dominica, Grenada, Guadeloupe, Guyana, Virgin Islands, Jamaica, Martinique, Montserrat, Saint Martin, Saint Vincent and the Grenadines, Saint Lucia, Trinidad and Tobago, Netherlands Antilles, South Georgia and the South Sandwich Islands, Maldives, Saint Barthelemy, Turks and Caicos Islands, Cayman Islands, Saint Kitts and Nevis, US Virgin Islands, Cuba, French Guiana, Suriname.

(*6) Nordic Islands: Iceland, Greenland, Faroe Islands.

General

• Engine brand JOHN DEERE
• Engine part no. 3029DSG20 *
• Suction type Atmo
• Cylinder arrangement L
• Number of cylinders 3
• Displacement (l) 2,91
• Diameter (mm) * Stroke (mm) 106 * 110
• Compression ratio 17.2 : 1
• Speed (tr/mn) 1500
• Max. auxiliary power at nominal speed (kW) 31
• Frequency regulation (%) +/- 2.5%
• Injection type Direct
• Type of control Mechanical
• Air Filter Type, Dry Models

Fuel system

• Maximum flow rate of fuel oil pump (l/h) 56
• Max. pressure in the fuel circuit (m) 1
• Consumption with fan
• Consumption 110% load (l/h) 8,60
• Consumption 100% PRP load (l/h) 7,50
• Consumption 75% PRP load (l/h) 5.50
• Consumption 50% PRP load (l/h) 4
• Emissions 1165
• PM emission (mg/Nm3) 5% O2 74
• CO emission (mg/Nm3) 5% O2 1165
• NOx emission (mg/Nm3) 5% O2 5245
• HC emission (mg/Nm3) 5% O2 30

Lubrication system

• Oil capacity (l) 6
• Min. oil pressure (bar) 1
• Max. oil pressure (bar) 5
• Oil sump capacity (l) 5,30
• Oil consumption 100% ESP 50Hz (l/h) 0.07
• Air intake system
• Max. inlet back pressure (mm H2O) 300
• Combustion air flow rate (l/s) 32

Exhaust system

• PRP ESP
• Heat expelled in the exhaust (kW) 31
• Exhaust gas temperature (°C) 555
• Exhaust gas flow (l/s) 87
• Max. exhaust back pressure (mm H2O) 750
• Cooling system
• Engine and radiator capacity (l) 16,10
• Fan power (kW) 0.70
• Fan air flow (m3/s) 1.74
• Radiator back pressure (mm H2O) 20
• Type of cooling Glycol-Ethylene
• Radiated heat (kW) 6
• Heat expelled in the water HT (kW) 18
• Water temperature at outlet (°C) 93
• Engine stop water temperature (°C) 105
• Start of HV thermostat opening (°C) 82
• Total opening of HV thermostat (°C) 94

Alternator specifications

• KOHLER alternator trademark
• Ref. Alternator KH00404T
• Number of poles 4
• Number of bearings
• Ring and brushless technology
• IP23 protection rating
• Insulation class H
• Number of wires 12
• Ability to maintain a
• short circuit at 3 In for 10 s
• AVR Adjustment Yes
• Direct Coupling

Application data

• Excess speed (rpm) 2250
• Power factor (Cos Phi) 0.80
• Regulating the voltage to the regime
• established (+/- %) 1
• Waveform: NEMA=TIF <45
• Waveform: IEC=FHT <2
• Total harmonic distortion in
• vacuum DHT (%) 3,6
• Total harmonic distortion in
• DHT load (%) 2,0
• Response time (Delta U = 20%)
• transitional) (ms) 200

Performance data

• Continuous rated power 40°C
• (kVA) 20
• Maximum unbalance rate (%) 100
