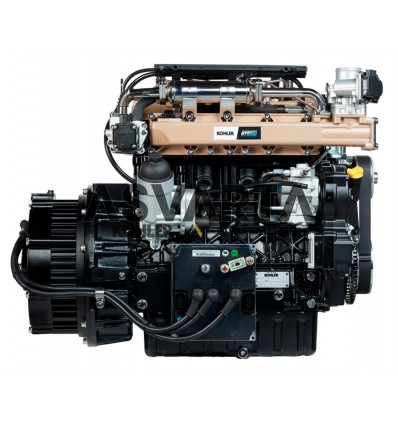

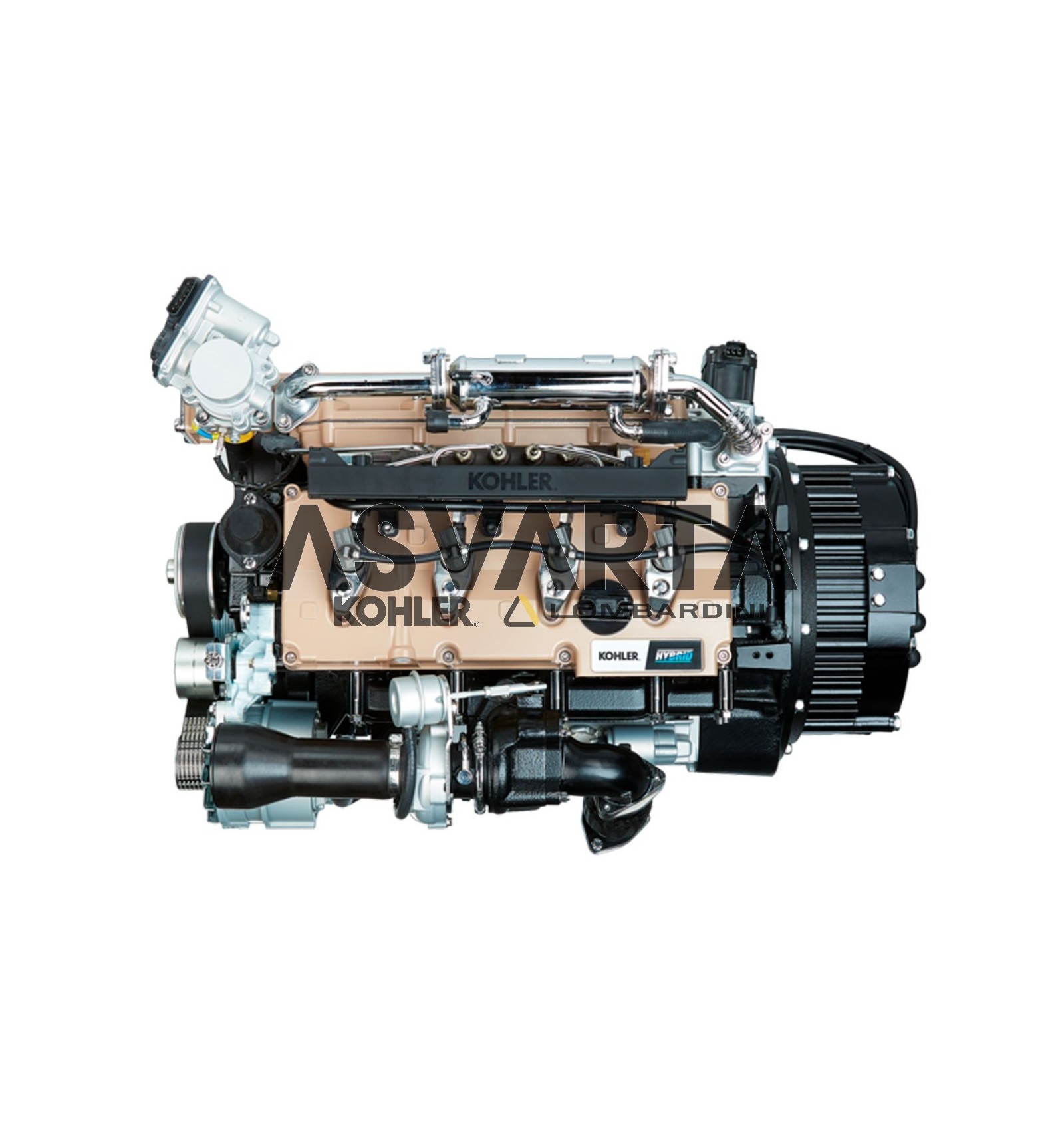

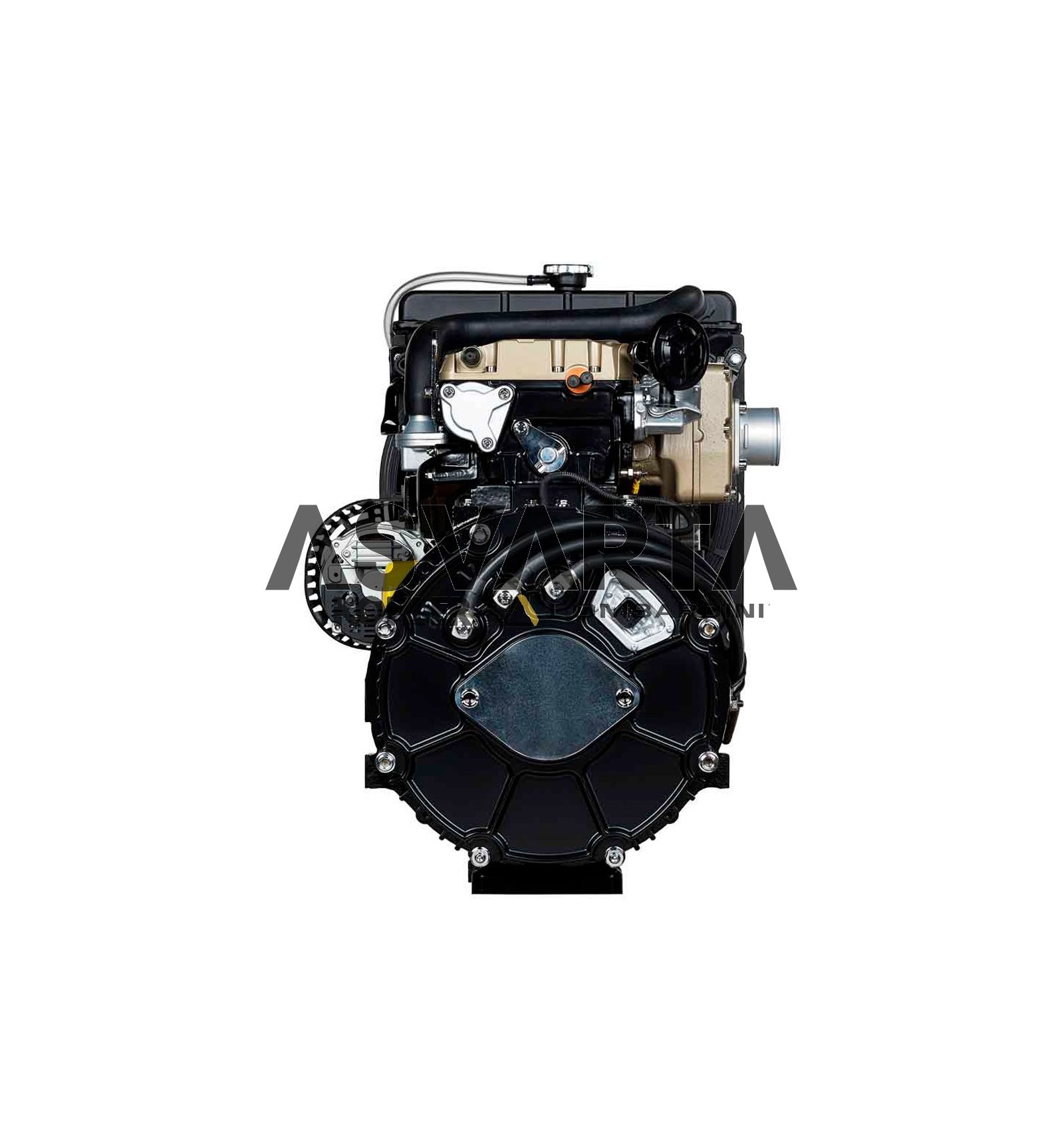

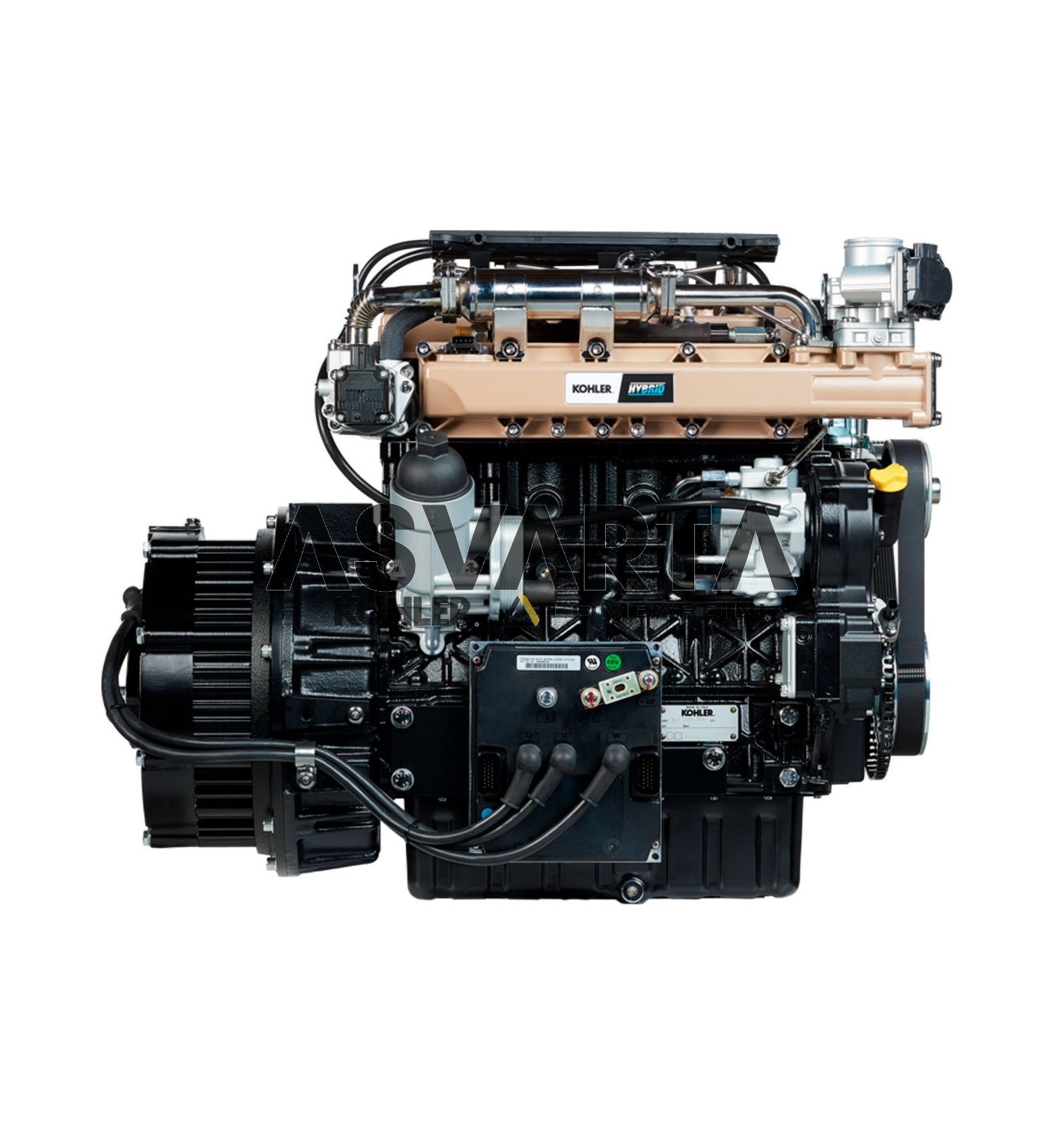

Kohler K-HEM 1003 Hybrid Engine

Kohler K-HEM 1003 Engine

K-HEM series engines can operate as a generator and as an electric accumulation system. These modules are designed to operate in different types of applications, such as

• Tractors
• Forklift
• Welders
• Mowers
• Aerial platforms

The built-in master control unit is used to monitor and manage the various working modes and transitions.

Benefits of the K-HEM 1003 Kohler Engine

• Energy recovery system
• Energy storage system
• Low emissions
• No post-treatment system
• Reduces the complexity of engine use

GROSS POWER @RPM max. kW (Hp)
17.7 + 15.0 Peak Electric @ 3000 (23.6 + 20.0 Peak Electric) @ 3000

PEAK TORQUE@ RPM (Nm
60 + 100 (Peak Electric) @ 2000

ARCHITECTURE
Inline 3-cylinder engine + E-machine

INTAKE
Naturally Aspirated

INJECTION
Indirect Mechanical

VALVES
2 per cylinder

DISPLACEMENT
1028

BORE
75

STROKE
77.6

COMPRESSION RATIO
22.8:1

DRY WEIGHT
289 (131)

OIL CAPACITY
25.4 (2.4)

OTHER
No DPF, no DOC
