Engine Kohler KDI 3404 TCR Expand

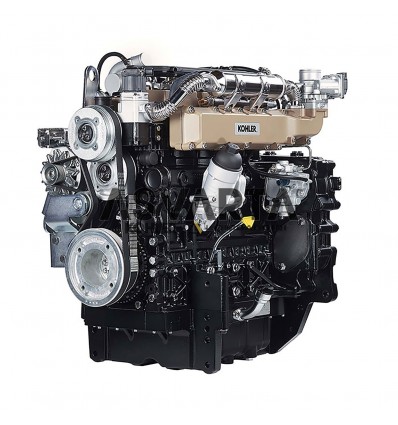

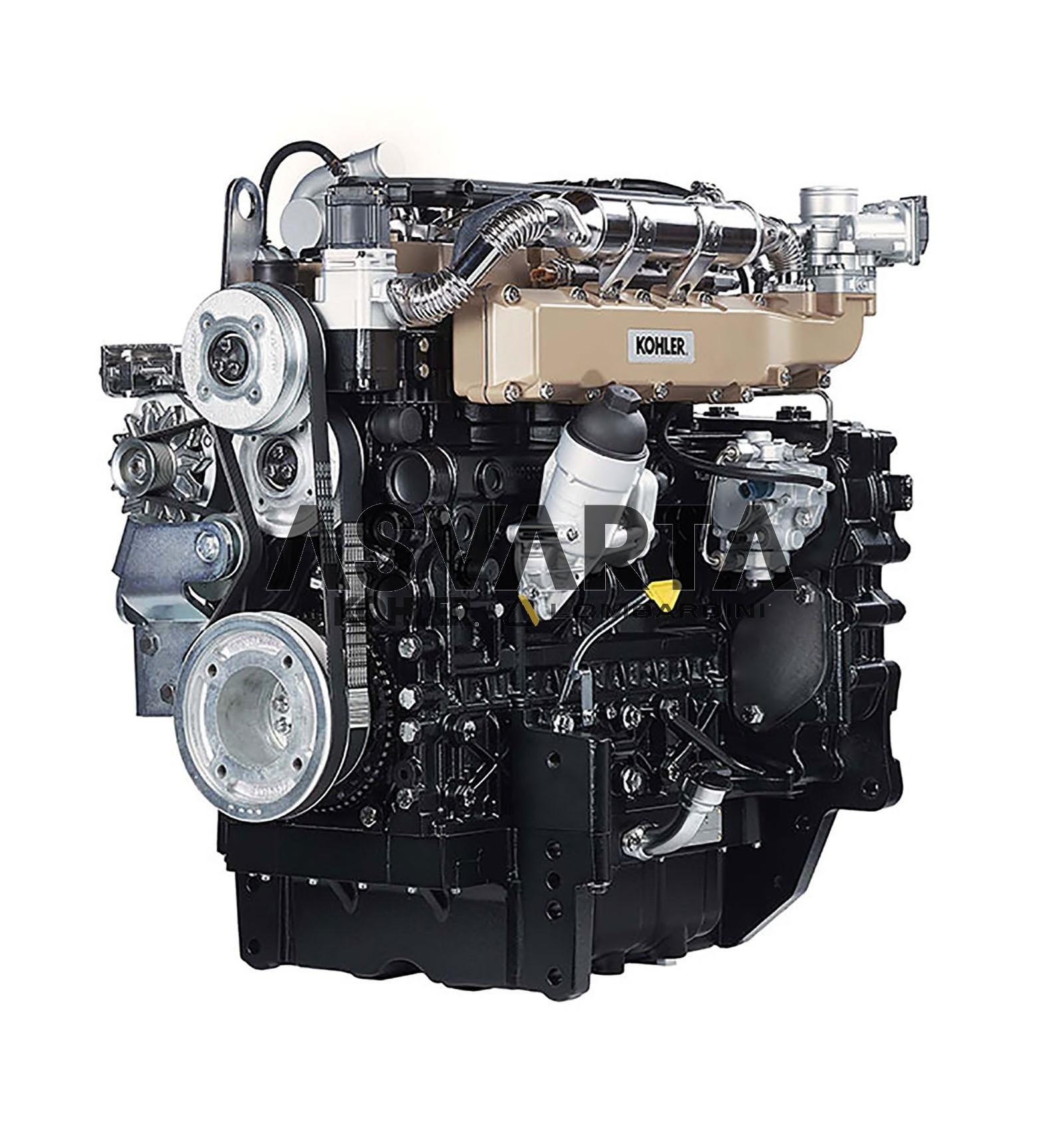

Kohler KDI 3404 TCR Engine

Kohler Kohler

New

KDI 3404 TCR engine Diesel Kohler exhibits its power thanks to the different features that Kohler brings to its engines. Highlight:

  • 55.4kW (74.0hp) / 105 kw @2200rpm
  • Four-stroke
  • Displacement 3359 cm3
  • Turbocharger with exhaust valve for excess gases.
  • Stage V
  • Compatible with KDI Kohler Spare Parts

Check price and availability: info@asvarta.com

More details

Look at the information of each model More Details

Caja Transporte Asvarta

Envío internacional gratuito*

Free shipping worldwide.
*See conditions

Distribuidores Oficiales Kohler y Lombardini

Kohler and Lombardini official distributors

Lenght718 (mm)
Height816 (mm)
Width580 (mm)
Height394 kg
Cooling SystemLiquid Cooling
Cylinders4
FuelDiesel
Power55.4kW (74.0hp)
RangeKDI Diesel
Frequency50Hz
Tank (L)50L
Max power (kW)55.4kW
Max power (kVA)74.0HP

MODELS

KDI 3404 P <56kWKDI 3404 P >56kW

ENGINE SPECIFICATIONS




4 stroke diesel with cylinder in line

YY
Liquid coolingYY
4 valves per cylinderYY
In crankcase camshaft, gear train drivenYY
Pushrod - rocker arms timing with hydraulic tappetsYY
Cast iron crankcase with bed-plateYY
Cast iron cylinder heads
Closed crankcase ventilation systemYY

MODELS

KDI 3404 P <56kWKDI 3404 P >56kW

TECHNICAL DATA




Cylinders

44
Bore (mm)9696
Stroke (mm)116116
Engine displ 33593359
Injection SystemDIDI
Injection EquipmentTurbo high pressure common railTurbo High pressure common rail
Aftercooler x2x3

Performance:

Maximum power (IFN - ISO 3046 and ISO 14396)* [kW(hp)@rpm] @ 2200

  • 55.4kW (74hp) (<56kW)
  • 100kW (134hp) (>56kW)

Maximum torque:

  • 465 @ 1200 (<56kW)
  • 500 @ 1400 (>56kW)

Equipment version <56kW

  • DOC
  • DPF
  • EGR

Equipment version >56kW

  • EGR
  • DOC
  • DPF
  • SCR

Both models conform and comply with all the regulations on contaminants exposed by the European Union (STAGE V)

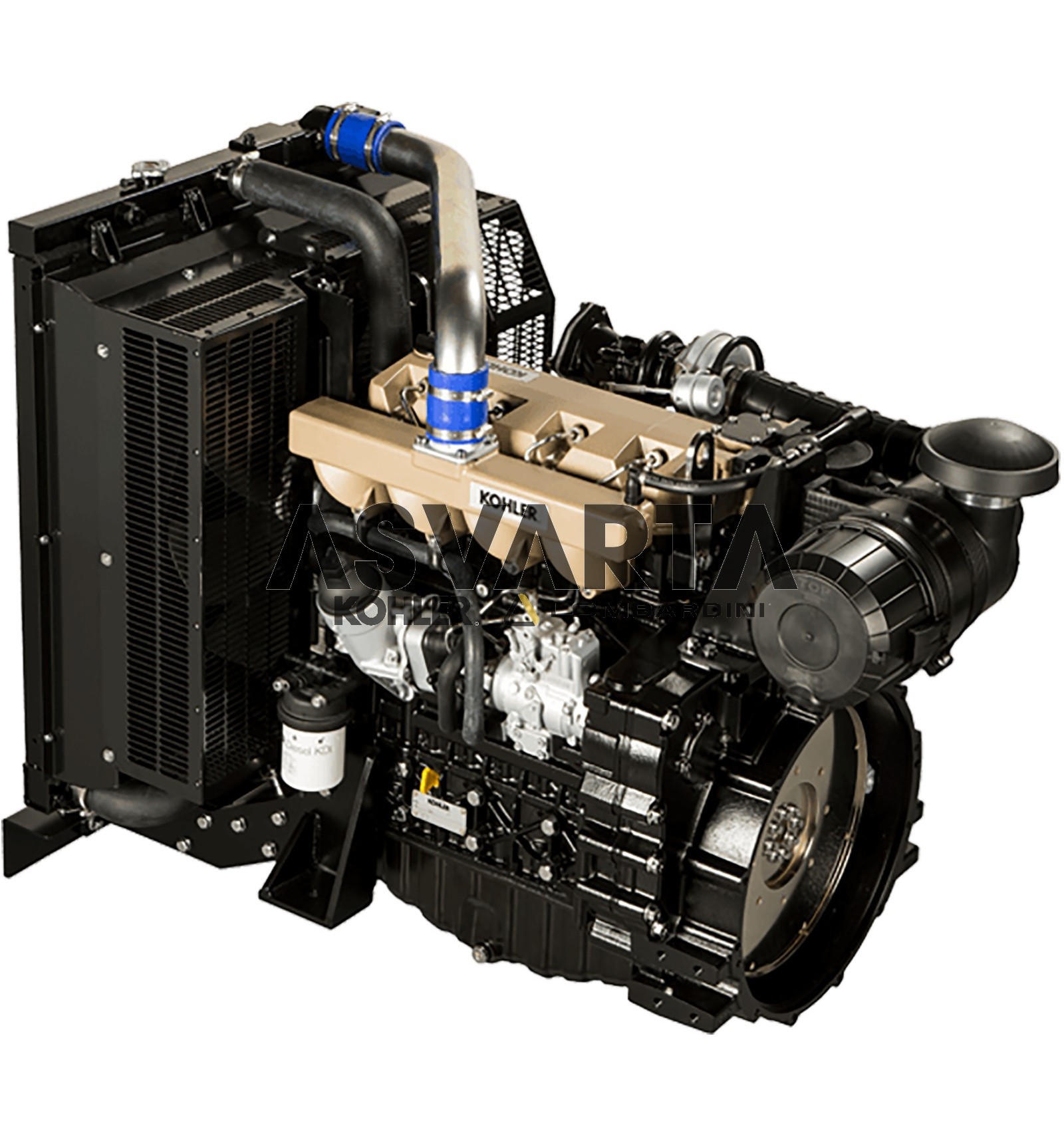

KDI3404 TM for SDMO GENSETS

This engine version includes RADIATOR.

MAXIMUM TORQUE

300 @ 1500
Cylinders4
Bore and Stroke96 x 116
Displacement3359
OIL CAPACITY15.6
LENGHT718
WIDTH580
HEIGHT816
Weight394
