Engine Lombardini Marine LDW 702 M Expand

Lombardini Marine Engine LDW 702 M

Lombardini Marine Lombardini Marine

LDW 702 M

New

The engine Marine LOMBARDINI LDW 702 M of the FOCS range surprises with its great autonomy. Highlighting the following features:

  • Water-cooled
  • Maximum power of 13.2 kw
  • Maximum power of 18 hp
  • Cylinders: 2
  • TMC 40 inverter

More details

Caja Transporte Asvarta

Envío internacional gratuito*

Free shipping worldwide.
*See conditions

Distribuidores Oficiales Kohler y Lombardini

Kohler and Lombardini official distributors

Lombardini Marine Engine LDW 702 M

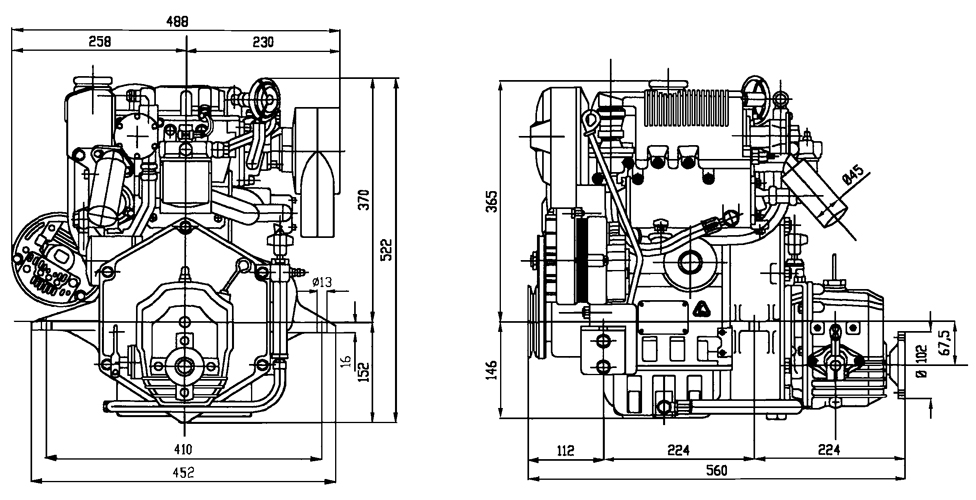

Unparalleled efficiency for brilliant autonomy. Enjoy the maximum possible performance for any type of marine activity thanks to the great commitment to the LDW 702 M engines of the Inboard range. See the downloadable dimension sheet for details of the exact measurements you need to work with.

Lombardini Marine Inboard LDW 702 M

  • Diesel Engine
  • Fresh water cooling pump
  • Accessible exhaust elbow
  • Indirect injection
  • Self-priming seawater pump

Lenght560 mm
Height522 mm
Width488 mm
Height99 kg
FuelDiesel
Max power (kW)18 ps
Max power (kVA)13.2 kw
  • Cylinders 2
  • Bore & Stroke 75x77,6
  • Displacement (cm3) 686
  • Power Max HP 18 hp
  • Power Max KW 13.2 kw
  • Compression ratio 22,8:1
  • Weight 99 kg •
  • Height 522 mm
  • Width 488 mm
  • Lenght 560 mm •
  • Round/Minute 3600
