Engine Lombardini Marine LDW 2204 M Expand

Lombardini Marine LDW 2204 M Engine

Lombardini Marine Lombardini Marine

LDW 2204 M

New

The engine marine LOMBARDINI LDW 2204 M is part of the FOCS series. This Intraboard offers the following features:

  • 4 cylinders
  • Diesel Fuel
  • Maximum power: 40.8 hp
  • Maximum power: 30kw
  • FOCS Series
  • engine water-cooled
  • Inboarder
  • TMC 60 inverter

More details

Caja Transporte Asvarta

Envío internacional gratuito*

Free shipping worldwide.
*See conditions

Distribuidores Oficiales Kohler y Lombardini

Kohler and Lombardini official distributors

Lombardini Engine LDW 2204 M

The LDW 2204 M Marine engine offers a wide range of advantages. In turn, it is assigned the FOCS series which has a number of unique features that make it one of the best value for money engines on the market. It is ideal for any type of professional activity.

Thanks to its compact design and its great finish, it offers an unprecedented lifetime. Outstanding results and a progression in line with expectations.

LDW 2204 M Inboard

Thanks to its involvement in the FOCS project, it has the following relevant features:

  • Robust, minimum weight guaranteed.
  • Very quiet
  • Great performance
  • No vibrations
  • Low emissions
  • Low maintenance costs

This four-cylinder engine with water-cooled diesel fuel stands out for its totally compact design and can therefore be used in different types of water.

Lenght926 mm
Height630 mm
Width540 mm
Height232 kg
Cylinders4
FuelDiesel
RangeFOCS Inboard
Max power (kW)40.8 ps
Max power (kVA)30 kw

Size LDW 2204 M

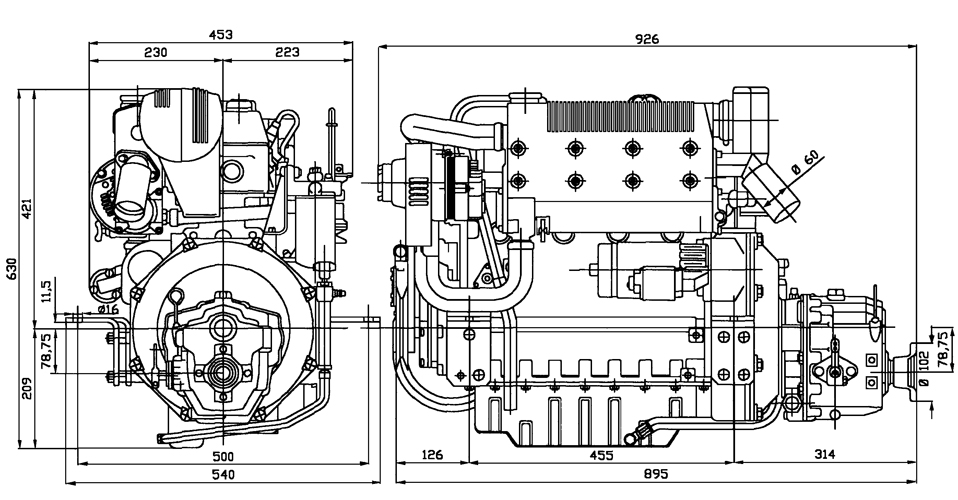

Technical Data Sheet with the dimensions of the Marine Engine LDW 2204 M Lombardini

Download (214.52k)

Size LDW 2204 M

Technical Data Sheet with the dimensions of the Marine Engine LDW 2204 M LOMBARDINI

Download (214.52k)

Size LDW 2204 M

Technical Data Sheet with the dimensions of the Marine Engine LDW 2204 M Lombardini

Download (214.52k)
  • Cylinders 4
  • Bore & Stroke 88x90,4
  • Displacement (cm3) 2199
  • Power Max HP 50 hp
  • Power Max KW 36.6 kw
  • Compression ratio 22:1
  • Weight 232 kg ••
  • Height 630 mm
  • Width 540 mm
  • Lenght 926 mm ••
  • Round/Minute 3000
