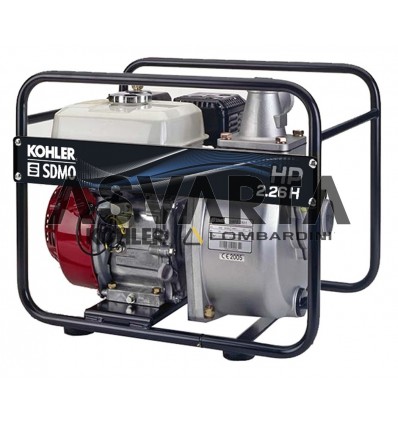

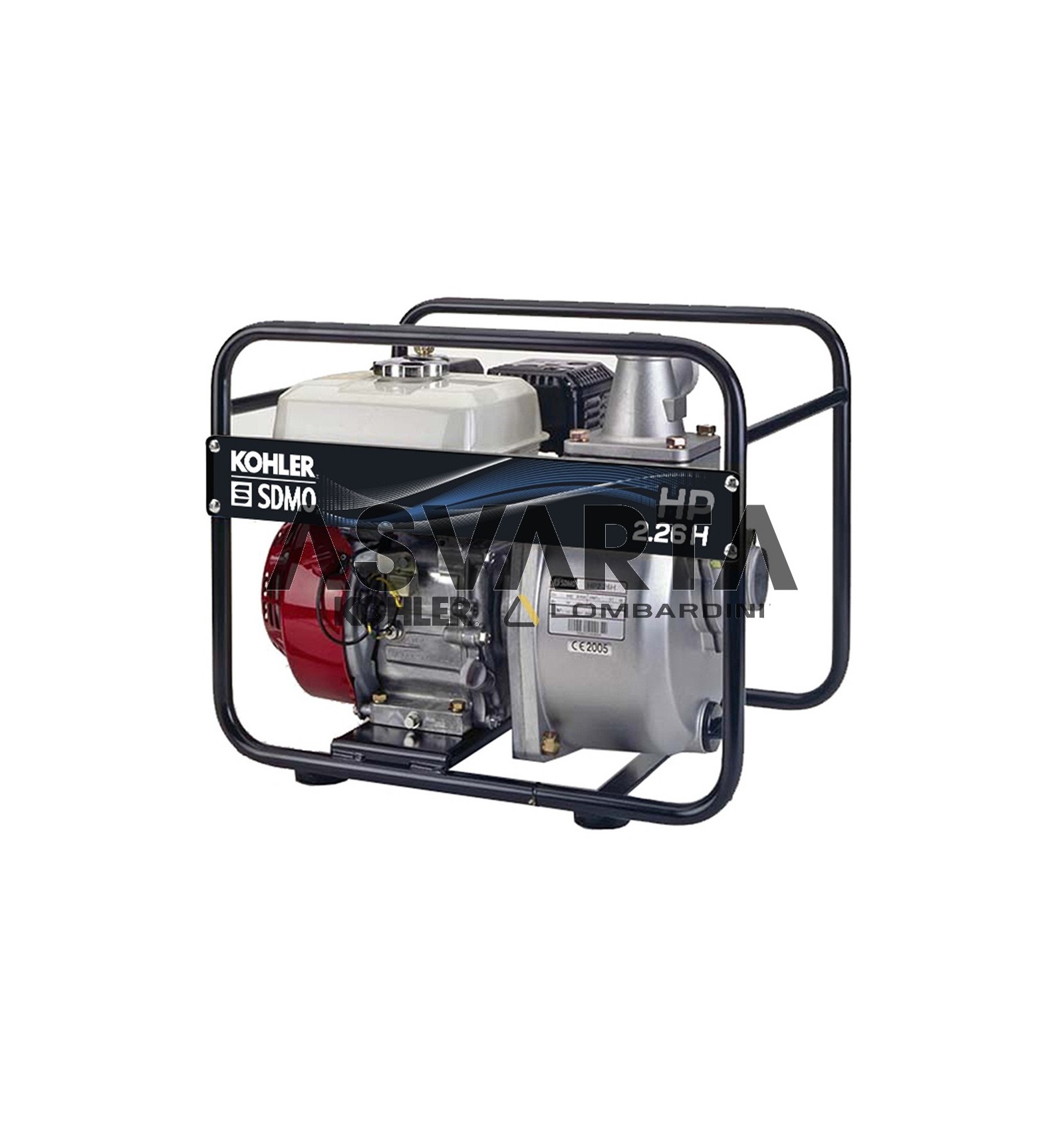

Water Pump HP 2.26 C5 Aqualine Specialist Kohler SDMO

HP 2.26 C5 Kohler SDMO engine Pump

This group allows high pressure cleaning, like agricultural vehicles. It is also totally viable in firefighting, all associated with the launch kit.

SDMO water pumps allow outstanding control of any type of emergency situation, making this group a great candidate for alarming situations. With a 3 year guarantee.

What are the advantages of this HP 2.26 C5 H from the Aqualine Specialist range?

• Efficiency in external conditions.
• Automatic priming
• Robust and powerful material
• Accessories Offers.
• High pressure material.

Kohler SDMO STAGE V Range

• It is part of the STAGE V Range, thus confirming compliance with EU pollution regulations.

WATER PUMP SPECIFICATIONS

• Rnge AQUALINE SPECIALIST
• Type liquid High voltage use
• Suction diameter [mm] 50
• Backflow diameter (mm) 50
• Outflow maximum (L/min) 440
• Outlflow maximum (m3/h) 26,40
• Lifting height (m) 57
• Suction height (m) 8
• Granulometry (mm) 8
• Automatic priming Yes
• Fuel Petrol
• Tank (L) 3,10
• 75% cons. (l/h) * 0,90
• 75% Autonomy (h) * 3,40
• Sound power level guaranteed LwA dB(A) 108
• Acoustic pressure level @1m in dB(A) 92
• Acoustic pressure level @7m in dB(A) 77

DIMENSIONS AND WEIGHT

• Length (cm) 41,50
• Width (cm) 54,50
• Height (cm) 45,50
• Dry Weight (kg) 30

PACKAGING

• Packaging type Box
• Length (cm) 54
• Width (cm) 42
• Height (cm) 45
• Weight (kg) 35
• Pallet type 120/80
• Number of box by pallet 12
• Pallet height (cm) 148
• weight of the packaged Pallet (kg) 430

ENGINE SPECIFICATIONS

• Engine brand HONDA
• Engine ref. GX160_C5
• Distribution O.H.V.
• Start Starter
• Oil shutdown Oui
• Displacement (cm3) 163
• Oil system capacity including filters (L) 0,60
