Welding Set Weldarc 220 T C5 Kohler SDMO

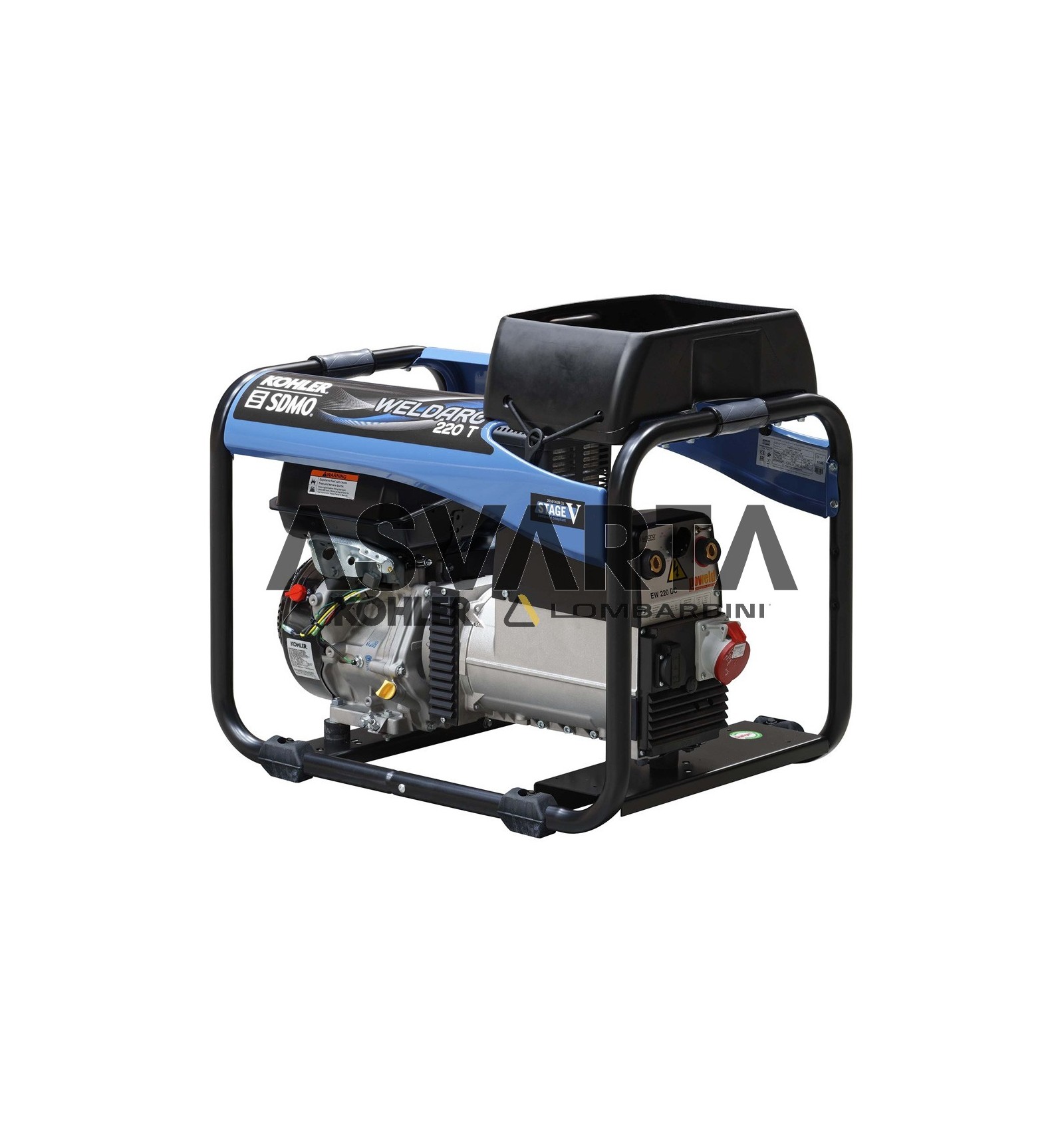

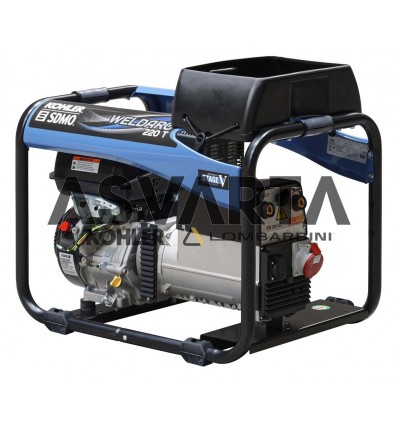

Weldarc Welding Group Intens 220 T C5

It features a Quad Clean cyclone filter that offers 4 effective filtration levels ideal for expelling coarse particles and capturing the finest. It always guarantees a clean air inlet, favouring fuel saving and optimizing the engine power while extending its useful life.

The Weldarc Intens range for regular use offers a 2 in 1 solution combining the characteristics of SDMO generating sets with SDMO welding sets.

Main advantages of Weldarc 220 T C5 SDMO.

• Full 3-year warranty for the complete unit.
• Kohler professional engine with popr air cooling.
• Excellent price/performance ratio.
• Reduced consumption.
• Lightweight integrated storage tank.

Added accessories with Weldarc 220 T C5 Kohler SDMO

The following accessories are included with the purchase of your welding unit at no additional cost.

• Funnel for liquids.
• Manual of maintenance and use.

ENGINE SPECIFICATIONS

• Engine brand KOHLER
• Engine ref. CH440_C5
• Distribution O.H.V.
• Start Starter
• Oil shutdown Oui
• Displacement (cm3) 429
• Oil system capacity including filters (L) 1,30

ALTERNATOR SPECIFICATIONS

• Technology Collar and brush
• AVR Regulation No
• Indication of protection IP 23
• Insulation class H

PLUGS AND PANEL DESCRIPTIVE

• 1 230V 10/16A socket - circuit breaker + 1 400V 16A socket - circuit breaker

DIMENSIONS AND WEIGHT

• Length (cm) 81
• Width (cm) 55,50
• Height (cm) 59
• Dry Weight (kg) 94,50

PACKAGING

• Packaging type Box
• Length (cm) 82
• Width (cm) 56,50
• Height (cm) 60
• Weight (kg) 96,50
• Pallet type 120/80
• Number of box by pallet 6
• Pallet height (cm) 193
• weight of the packaged Pallet (kg) 589
