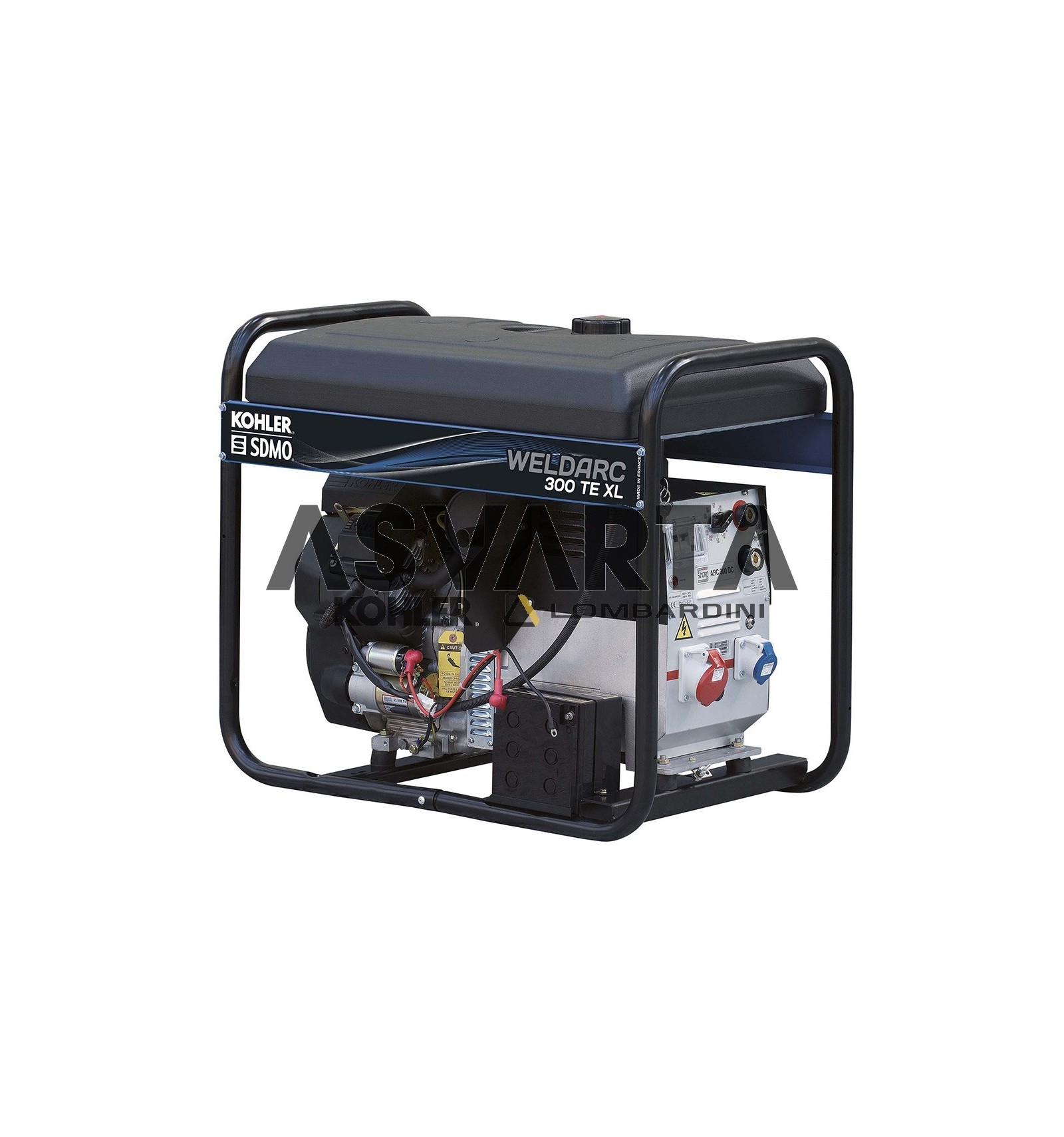

Welding Set Weldarc 300 TE XL C5 Kohler SDMO

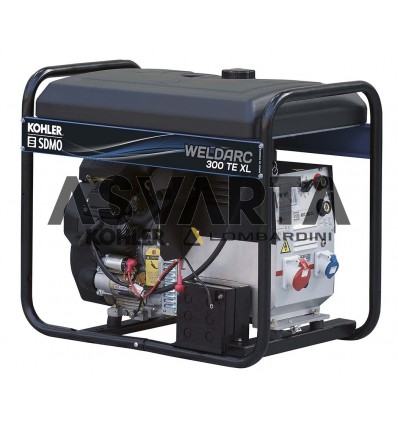

Kohler SDMO Weldarc 300 TE XL C5 Intens

With the purchase of this SDMO welding set unit with a full three-year warranty, you are acquiring a two-in-one solution that applies and combines the characteristics of the generating sets plus the welding units to apply a power adapted to regular use for any type of activity.

Thanks to its compact chassis it has a remarkable protection against blows and shocks that allows its mobility to different places in a simpler way. This chassis is made up of protection panels which, thanks to their finish, guarantee an excellent durability.

Advantages Weldarc 300 TE XL C5 SDMO

• STAGE V range. Complying with the regulations on pollutants in Europe.
• Great Autonomy, typical of the WELDARC INTENS range.
• Electric starter.
• Kohler air-cooled engine.
• Full warranty on your 3-year welding set.

All SDMO welding units in the WELDARC range can supply current thanks to their auxiliary outputs. It is used as a standard generating set and the choice of model for this function follows the same criteria as the other generating sets in the Portable Power Range.

Accessories Weldarc 300 TE XL C5

The following accessories are delivered to you when you formalize your purchase at no additional cost:

• A fantastic funnel to pour the fuel.
• A user and maintenance manual for your welding unit.

ENGINE SPECIFICATIONS

• Engine brand KOHLER
• Engine ref. CH680_C5
• Distribution O.H.V.
• Start Electrical
• Oil shutdown Oui
• Displacement (cm3) 674
• Oil system capacity including filters (L) 1,90

ALTERNATOR SPECIFICATIONS

• Technology Collar and brush
• AVR Regulation No
• Indication of protection IP 23
• Insulation class H

PLUGS AND PANEL DESCRIPTIVE

• 1 230V 16A socket - circuit breaker + 1 400V 16A socket - circuit breaker + hour meter + Residual Current Device

DIMENSIONS AND WEIGHT

• Length (cm) 89,50
• Width (cm) 57
• Height (cm) 77
• Dry Weight (kg) 161

PACKAGING

• Packaging type Box / Pallet
• Length (cm) 91
• Width (cm) 58,50
• Height (cm) 92
• Weight (kg) 174
• Pallet type
• Number of box by pallet 0
• Pallet height (cm) 0
• weight of the packaged Pallet (kg) 0
